SICK – UE4740-22H0000 – EFI Gateway for PROFINET PROFIsafe Integration

Description:

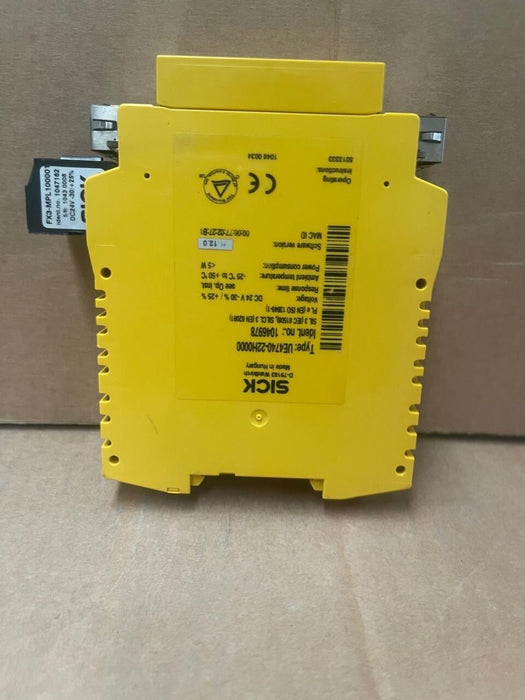

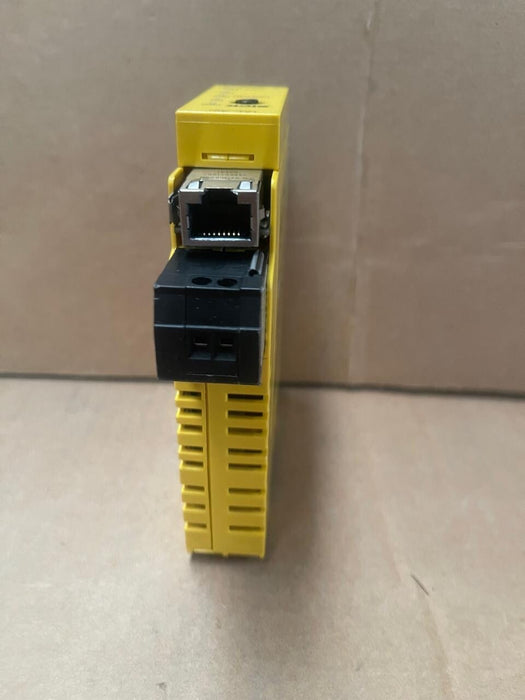

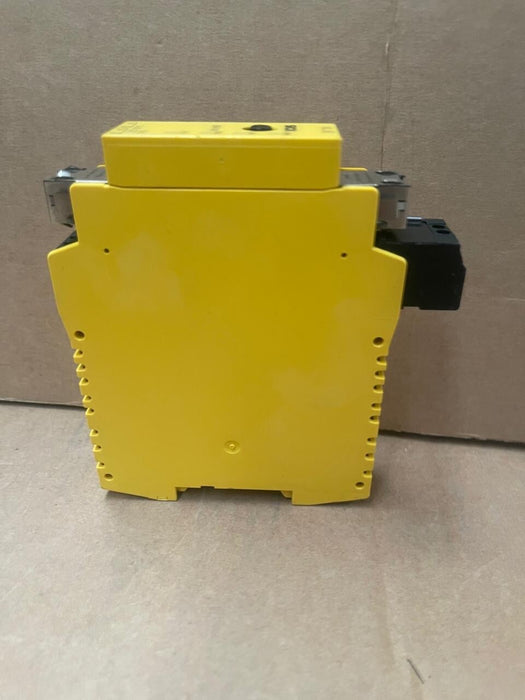

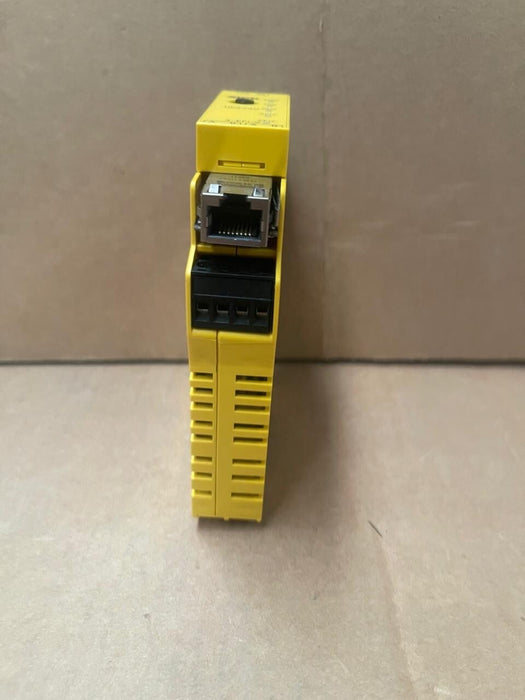

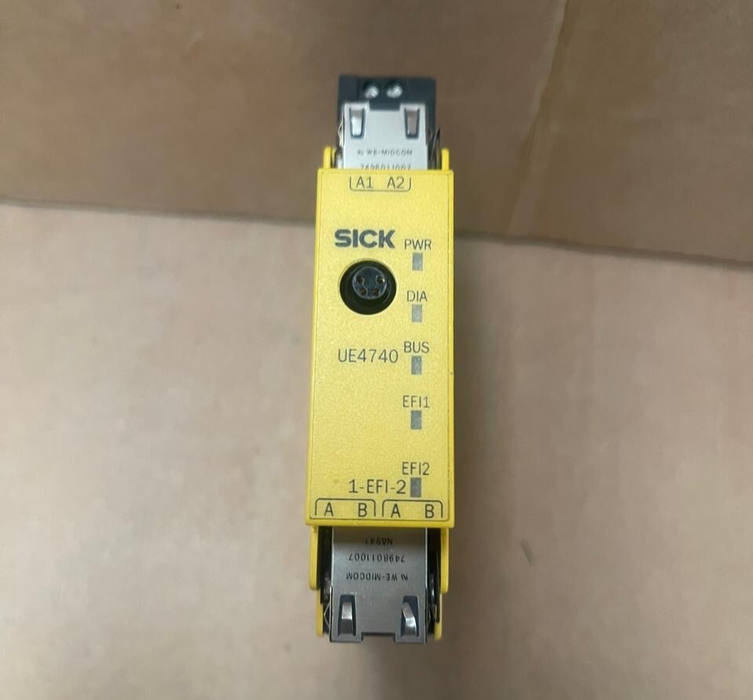

The SICK UE4740-22H0000 (Part No. 1046978) is an EFI (Enhanced Function Interface) gateway designed to integrate intelligent SICK safety sensors into PROFINET IO PROFIsafe fieldbus systems. It features two EFI interfaces, allowing connection of up to four SICK safety sensors, and facilitates the exchange of configurable process images between EFI sensors and PLCs. Configuration and diagnostics are managed via SICK’s CDS (Configuration & Diagnostic Software).

Key Specifications:

• Communication Interfaces: PROFINET IO, PROFIsafe V2.00

• EFI Interfaces: 2 inputs for connecting up to 4 SICK safety sensors

• Safety Standards:

  • Category: 4 (EN ISO 13849)

  • Performance Level: PL e (EN ISO 13849)

  • Safety Integrity Level: SIL3 (IEC 61508)

  • PFHD: 2.84 x 10⁻⁹ (EN ISO 13849)

• Enclosure Rating: IP20 (IEC 60529)

• Dimensions (W × H × L): 22.5 mm × 96.5 mm × 120.8 mm

• Weight: 147 g

• Power Supply: Via system plug with integrated configuration memory (ordered separately)

• Configuration Tool: SICK CDS software

• Additional Features:

  • Supports PROFINET IO conformance class A, LLDP, SNMP, MIB II

  • Cyclic I/O communication, acyclic read/write services via TCI interface

  • Diagnostics alarm, TCP/IP communication via port 9000

Applications:

• Integration of SICK safety sensors into PROFINET PROFIsafe networks

• Industrial automation systems requiring high-level safety communication

• Applications necessitating advanced diagnostics and easy configuration of safety devices
