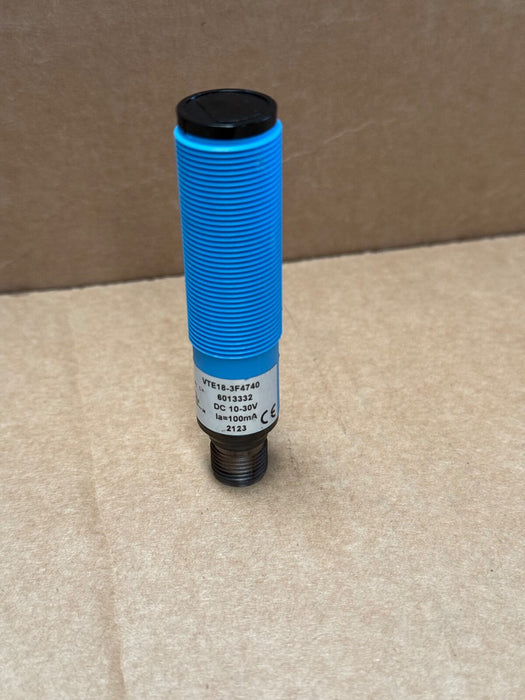

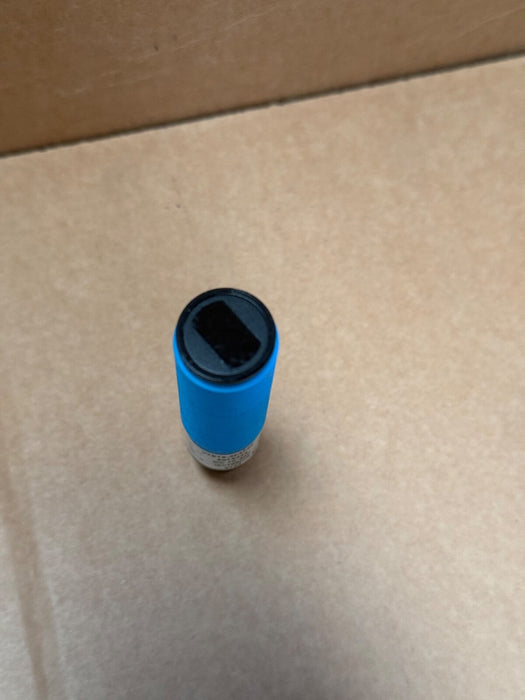

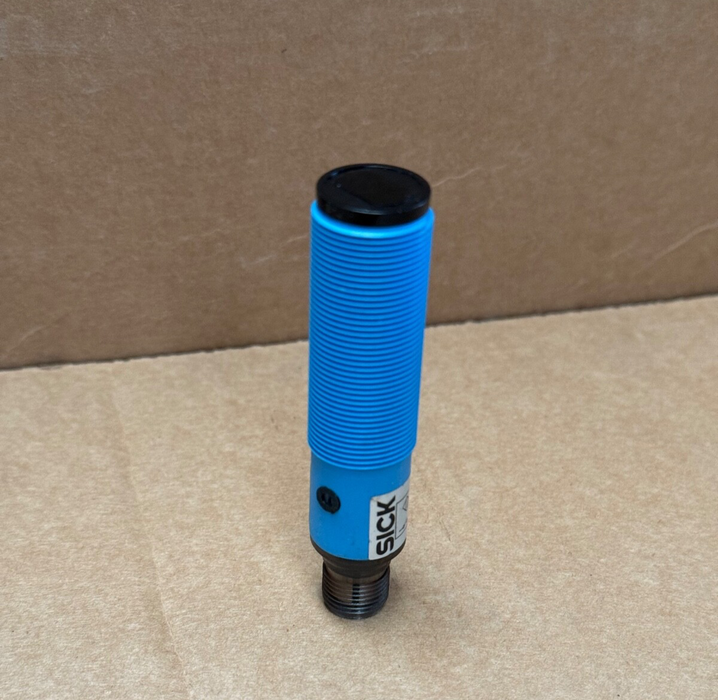

SICK – VTE18‑3F4740 (6013332) – M18 Energetic Photoelectric Proximity Sensor

The SICK VTE18‑3F4740 (MPN 6013332) is an energetic (diffuse/reflective) photoelectric proximity sensor from the durable V18 series. Featuring axial infrared light emission, selectable light-ON PNP output, and M12 connector interface, this compact M18 sensor detects objects from 5 mm to 400 mm—perfect for packaging, robotics, and material handling.

Key Features & Specifications:

• Model / MPN: VTE18‑3F4740 / 6013332

• Detection Principle: Energetic (diffuse) photoelectric proximity sensor; axial beam

• Sensing Range: 5 mm to 350 mm (typical); max 400 mm for 90% remission surfaces

• Beam Angle & Spot: 2.8° dispersion; approx. 20 mm spot at 400 mm

• Light Source: Infrared LED (~850 nm), ~100 000 h lifetime

• Output: PNP, light-ON mode, up to 100 mA

• Switching Performance: Response time ≤ 2 ms; switching frequency 250 Hz

• Supply: 10–30 V DC; ~30 mA consumption

• Adjustment: Built-in 270° potentiometer for sensitivity tuning

• Connection: M12 4‑pin male connector

• Housing: M18 × 1 plastic, 78 mm long; IP67

• Protections: Reverse-polarity, interference suppression, short‑circuit and overcurrent protected

• Environment: –25 °C to +70 °C; UL File NMFT2.E175606

• Weight: 100 g
