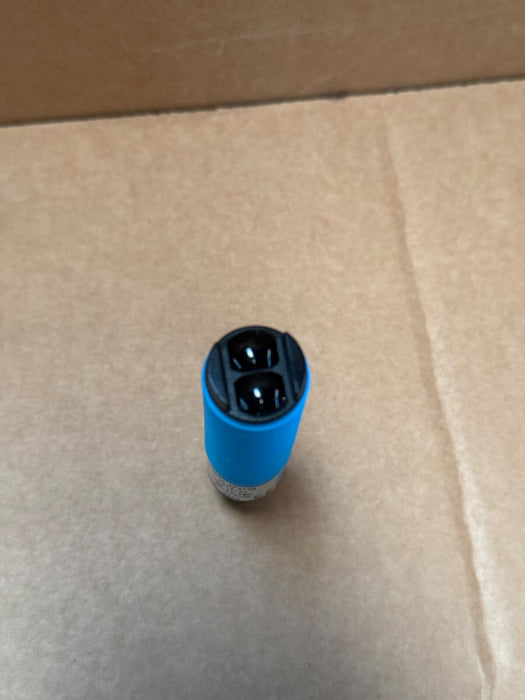

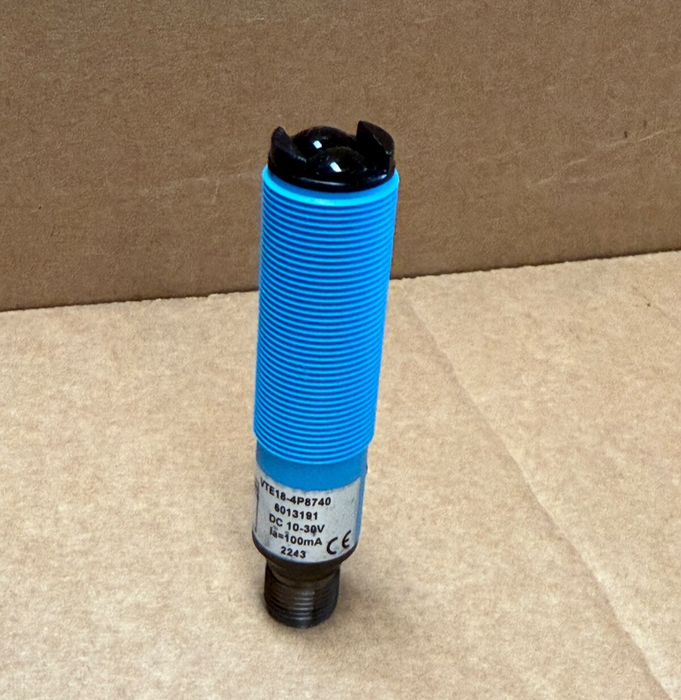

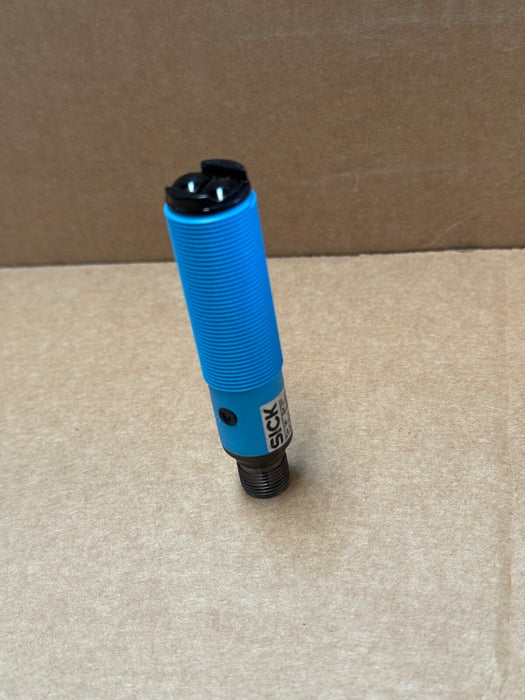

SICK – VTE18‑4P8740 (6013191) – M18 Energetic Photoelectric Sensor, 10–800 mm

The SICK VTE18‑4P8740 (MPN 6013191) is an M18 cylindrical energetic (diffuse) photoelectric sensor from the V18 series. Featuring a selectable PNP light/dark output via control wire and a built-in potentiometer for sensitivity adjustment, this sensor detects objects from 10 mm to 800 mm depending on surface reflectivity. Ideal for material handling, packaging, robotics, and industrial automation.

Key Features & Specifications:

• Model / MPN: VTE18‑4P8740 / 6013191

• Detection: Energetic (diffuse) with infrared LED (~850 nm)

• Range (on 90 % remission white): 10 mm up to 800 mm; typical 10–700 mm

• Beam and Spot: Axial beam, 2.8° dispersion; ~40 mm spot at 800 mm

• Output Type: PNP with selectable light/dark switching; max 100 mA

• Response: ≤ 2 ms; switching frequency up to 250 Hz

• Supply Voltage: 10–30 V DC (±10 % ripple); ~30 mA consumption

• Adjustment: 270° potentiometer sensitivity control

• Connection: 4-pin M12 male connector

• Housing: Plastic PBT/PC, 78 mm length, Ø18 mm thread (M18 × 1); IP67 rated

• Protection: Reverse polarity, interference suppression, output overcurrent/short-circuit protected

• Operating Temperature: –25 °C to +70 °C; UL file NMFT2.E175606

• Weight: ~100 g
