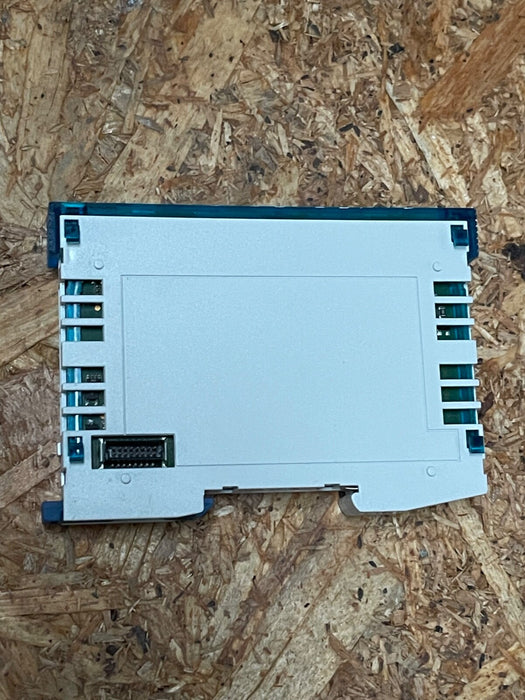

Sigmatek - CP 111 - S-DIAS CPU Module, EDGE2 Technology, 256 MB RAM

The Sigmatek CP 111 is a high-performance CPU module from the S-DIAS series, designed for advanced industrial automation applications. Equipped with EDGE2 Technology, it offers robust processing capabilities and versatile connectivity options, including Ethernet, VARAN, CAN, USB, and microSD interfaces. The module supports up to 65,280 I/O modules via the VARAN bus and 64 modules via the S-DIAS bus, making it suitable for complex control systems.

Key Features:

• Model: CP 111

• Brand: Sigmatek

• Processor: EDGE2 Technology

• Memory:

  • 256 MB DDR3 RAM

  • 256 kB battery-buffered SRAM

  • 1 GB microSD card

• Interfaces:

  • 1 × Ethernet

  • 2 × VARAN Out (Manager)

  • 1 × CAN (via PS 101)

  • 1 × USB Host 2.0 (via PS 101)

  • 1 × USB Device 1.1

  • 1 × S-DIAS (with manager)

• Real-Time Clock: Yes (battery buffered)

• Power Supply: +5 V DC from PS 101

• Current Consumption: Typically 400 mA, maximum 450 mA

• Mounting: DIN rail

• Dimensions (W × H × D): 12.5 mm × 104.2 mm × 72 mm

• Protection Class: IP20

• Operating Temperature Range: 0 °C to +55 °C

• Operating System: Salamander

• Article Number: 20-004-111

• Applications: Ideal for use in industrial automation systems requiring high processing power and extensive I/O module support.
