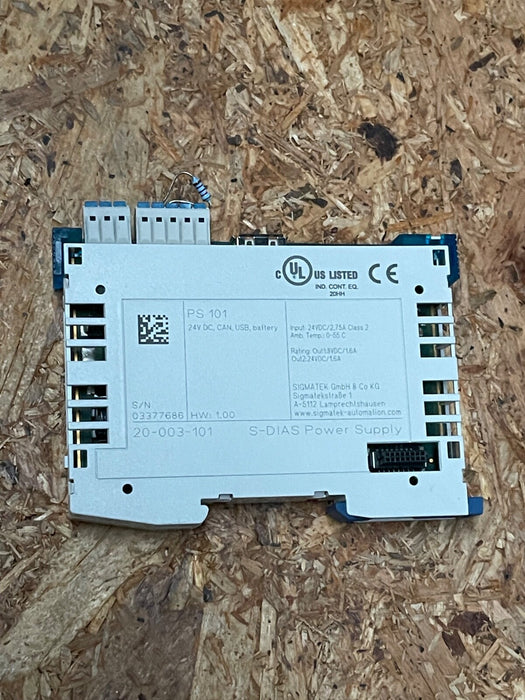

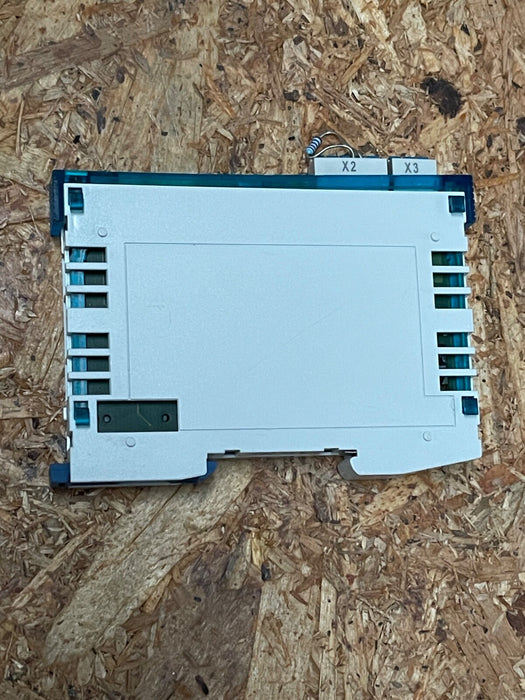

The Sigmatek PS 101 is a compact power supply module from the S-DIAS series, designed to provide reliable power to CPU components and S-DIAS I/O modules in industrial automation systems. It features integrated CAN and USB host interfaces, which are operational when paired with a CPU module like the CP 111. Additionally, the module includes an exchangeable lithium battery to maintain the real-time clock and zero-voltage proof RAM in the CPU module during power interruptions.

Key Features:

Model: PS 101
Brand: Sigmatek
Article Number: 20-003-101
Function: Power supply module for CPU and S-DIAS I/O modules
Input Supply Voltage: +18 V to +30 V DC (typically +24 V DC)
Maximum Input Current: 2.75 A
S-DIAS Bus Output:
- +5 V DC, maximum 1.6 A
- +24 V DC, maximum 1.6 A
Interfaces:
- 1 × USB Host 2.0 (480 Mbit/s)
- 1 × CAN
Battery: Exchangeable lithium battery (CR2032) for RTC and SRAM backup
Mounting: DIN rail
Dimensions (W × H × D): 12.5 mm × 104.2 mm × 72 mm
Protection Class: IP20
Operating Temperature Range: 0 °C to +55 °C
Storage Temperature Range: -20 °C to +85 °C
Humidity: 0–95%, non-condensing
Certifications: UL 508 (E247993), cUL, CE, UKCA
Applications: Ideal for supplying power to CPU components and S-DIAS I/O modules in industrial automation systems, ensuring reliable operation and communication through integrated interfaces.
