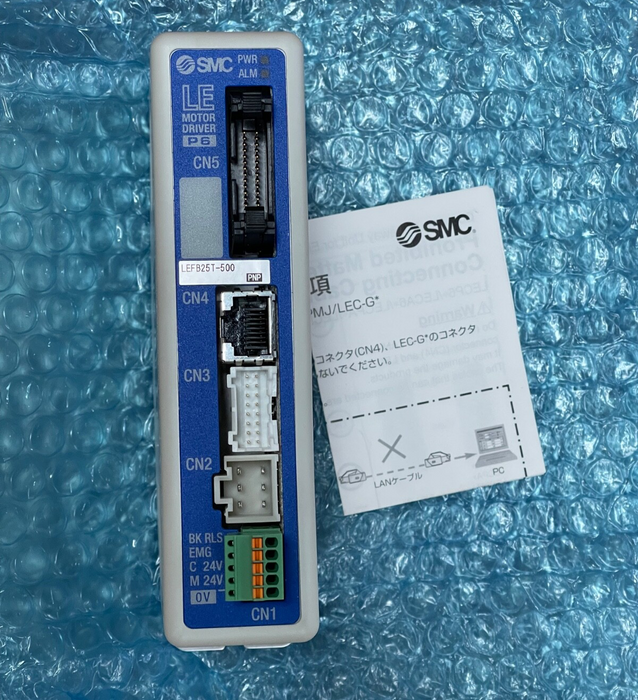

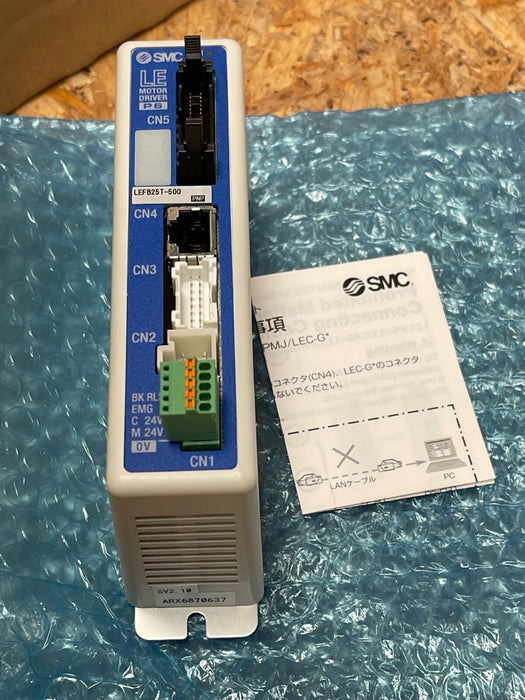

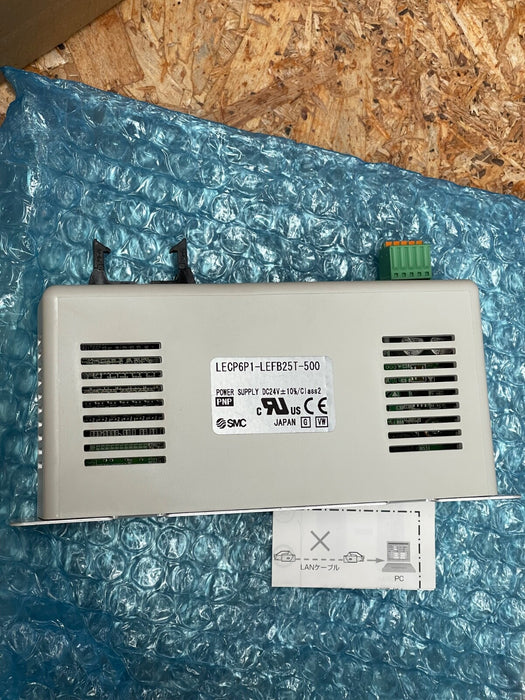

SMC – LECP6P1‑LEFB25T‑500 – Step-Data Stepper Motor Controller for LEF25T

The SMC LECP6P1‑LEFB25T‑500 is a step-data input controller designed for SMC’s LEF25T series belt-drive electric actuators. This compact unit provides precision motion control with programmable speed, position, and force profiles—without needing PLC integration. It supports PNP sensor compatibility and can be mounted on screw bases or DIN rail, offering flexible installation options.

Key Features:

• Model: LECP6P1‑LEFB25T‑500 step-data controller for LEF25T actuator

• Brand: SMC

• Motor Compatibility: PNP stepper / servo motor (24 V DC)

• Actuator Series: Compatible with LEF series belt-drive (25 mm), programmable with 64-point motion profiles for position, speed, force, direction, and acceleration

• Control Modes: Easy mode (basic setup) and Normal mode (advanced setup via software or teaching box)

• Mounting Options: Screw-mount or DIN-rail mountable

• Input/Output: Dedicated HOME input for return-to-origin; configurable I/O via teaching box or PC setup

• Programming Tools: Set up via teaching box or optional PC software; downloads available from SMC E-Tech Sources
