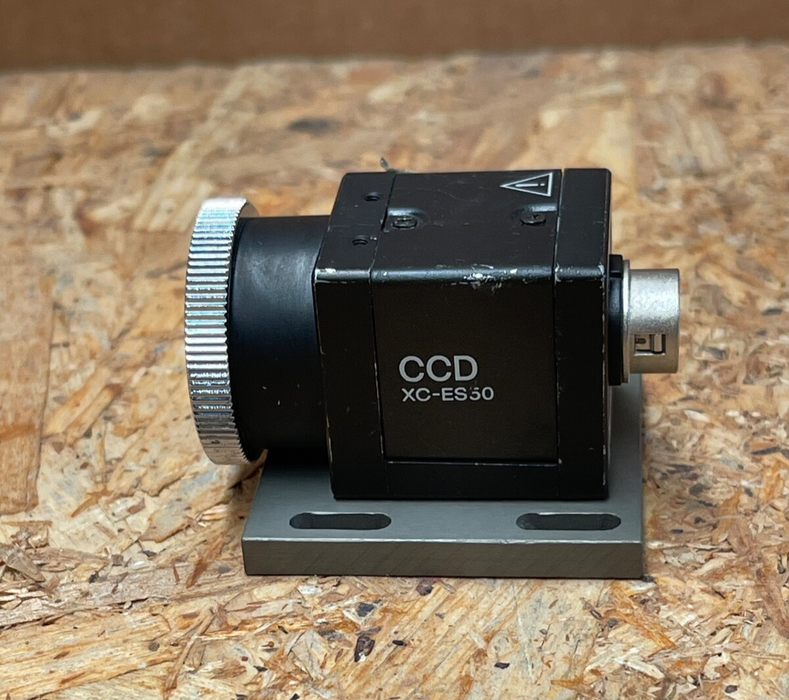

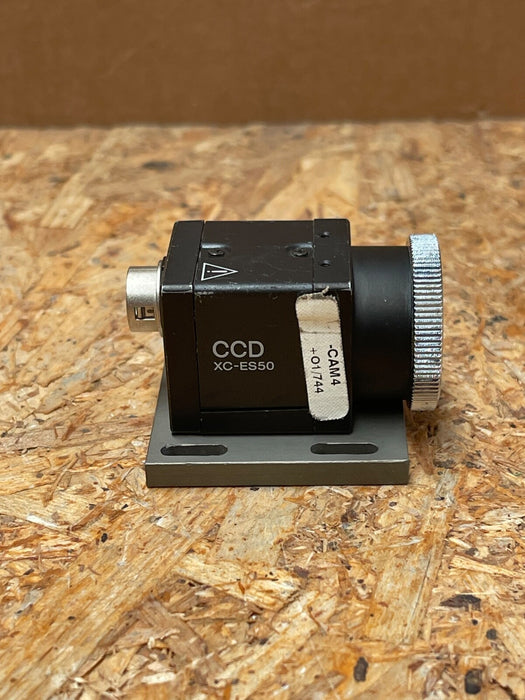

Sony – XC‑ES50 – ½″ IT CCD Monochrome Industrial Camera Module (EIA, C‑Mount)

The Sony XC‑ES50 is a high-performance monochrome industrial camera module featuring a durable 1/2″ Interline Transfer CCD with HAD technology and a standard C‑mount lens interface. Designed for space-constrained applications, it’s ideal for machine vision, automation, and industrial inspection where sensitivity, compactness, and robust triggering are essential.

Key Features:

• Model: XC‑ES50

• Image Sensor: 1/2″ IT CCD (HAD), 768 × 494 effective pixels

• Signal Format: EIA standard composite video (interlaced)

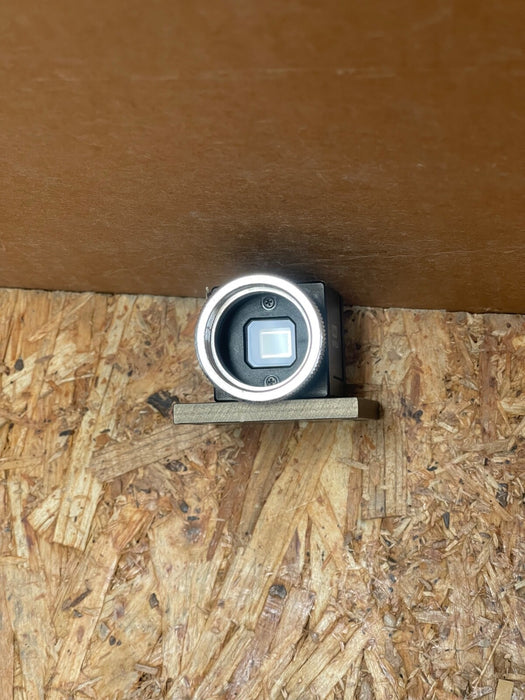

• Lens Mount: C‑mount, 17.526 mm flange focal distance

• Size & Weight: 29 × 29 × 32 mm; 50 g

• Sensitivity: 0.3 lux @ F1.4 (min illumination); S/N ratio ≈ 60 dB

• Shutter: Electronic (1/100–1/10,000 s); external trigger support

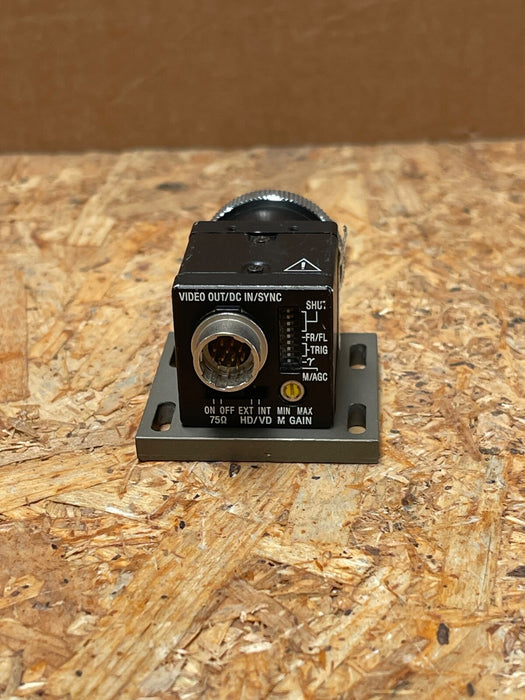

• Trigger & Sync: Flexible trigger/shutter, internal/external sync (HD/VD), WEN output

• Robustness: Vibration rated 10 g; shock rated 70 g; suitable for tough industrial environments

• Power: 12 V DC (9–16 V DC input), approx. 1.6 W consumption
