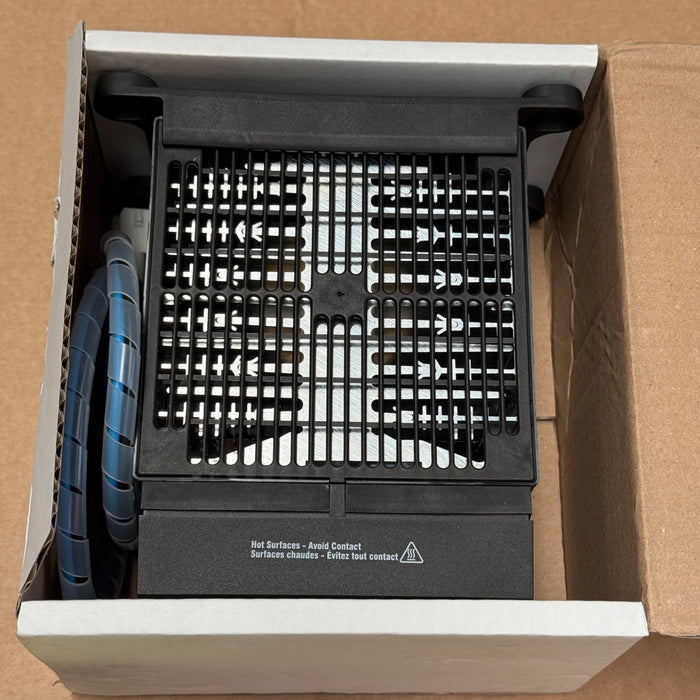

Stego – 13051.0‑03 (CR 130) – 950 W 230 V Panel/DIN‑Rail Enclosure Fan Heater

The Stego CR 130, part number 13051.0‑03, is a high-performance fan heater designed for industrial and electrical cabinets. It delivers 950 W of heating power at 230 V AC, maintaining internal temperatures to prevent moisture and condensation. Featuring double-insulated housing, built-in overheating protection, durable ball-bearing fan rated for 50,000 h, and options for thermostat (not included in this model), it mounts easily on DIN rails or panel surfaces.

 Key Specifications

• Model: 13051.0‑03 (CR 130 series) – 950 W @ 230 V AC, no integrated controls

• Form Factor: Panel or DIN-rail mount, 168 × 99 × 182 mm, approx. 1.4 kg

• Fan: Axial, ball-bearing, 94 CFM (160 m³/h), 50,000 h life

• Heating Element: High-performance cartridge with internal overheat protection and reset fuse

• Housing: Double-insulated plastic, UL 94 V‑0, protection class II, rated IP20

• Connections: 2‑pole terminal (AWG 16 / 1.5 mm²), strain relief, torque 0.8 Nm

• Mounting: Snap-on 35 mm DIN rail or panel via M6 screws

• Temp. Range: –45 °C to +70 °C (storage/operation)
