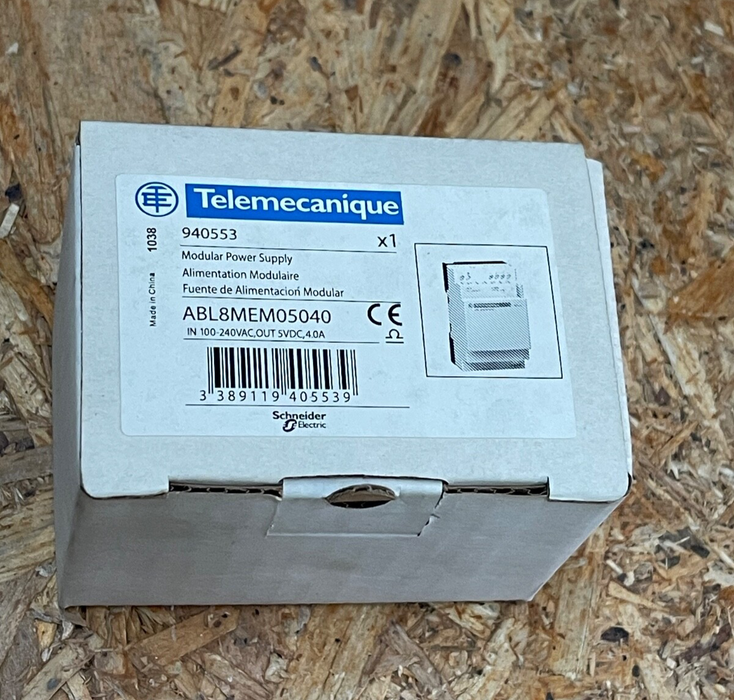

Telemecanique – ABL8MEM05040 – Phaseo ABL8 DIN‑Rail Switch‑Mode Power Supply

The ABL8MEM05040 is a compact and modular switch‑mode power supply from Schneider Electric’s Phaseo ABL8 series (Telemecanique). With universal AC input and robust protections, it’s ideal for automation applications in industrial control systems, providing a stable 5 V DC output at up to 4 A.

Key Features:

• Model: ABL8MEM05040 (Phaseo ABL8 series)

• Input Voltage: 100–240 V AC (85–264 V AC/DC), 47–63 Hz

• Output: 5 V DC, 4 A max (20 W); adjustable 4.75–6.25 V

• Efficiency: Approx. 75 %; low ripple (< 250 mV)

• Protections: Overload, short-circuit, over-voltage with auto-reset; inrush limit 20 A

• Indicators: Green LED signalling output ok

• Mounting: DIN‑rail (35 × 15 mm) or panel; dimensions 54 × 100 × 59 mm; weight ~195 g

• EMC & Safety Ratings: CE, UL 508, CSA C22.2 60950‑1, TUV; conforms to EN/IEC 61000 series (EMC level B) and EN/IEC 61204‑3; IP20
