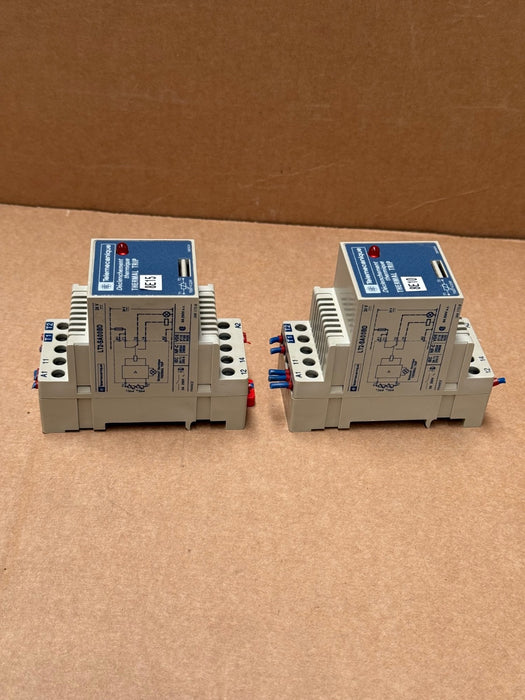

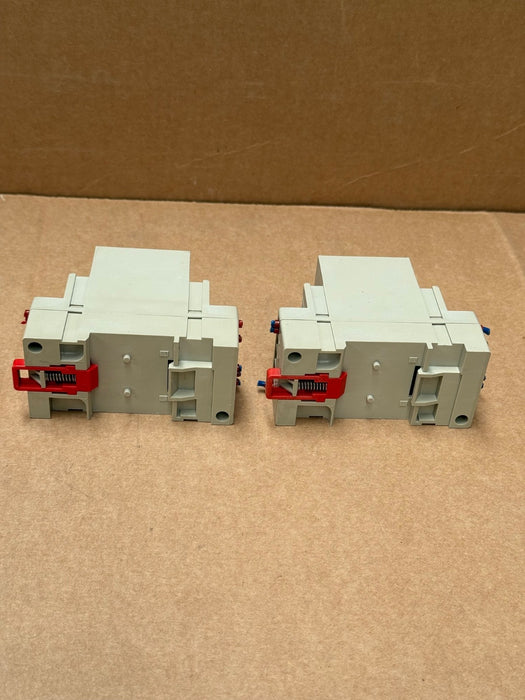

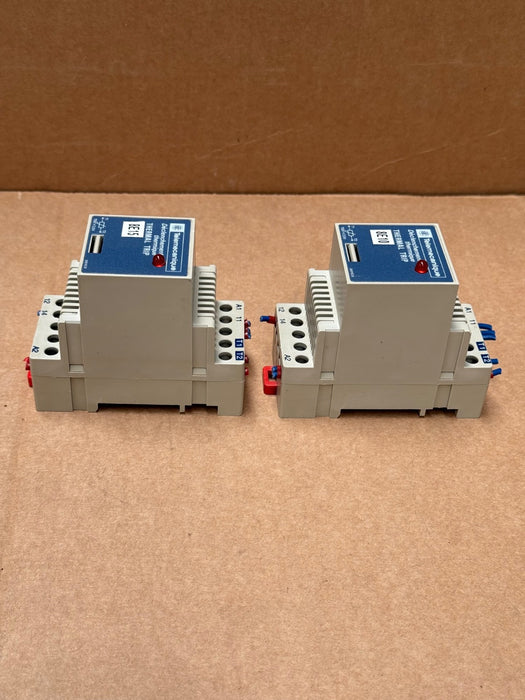

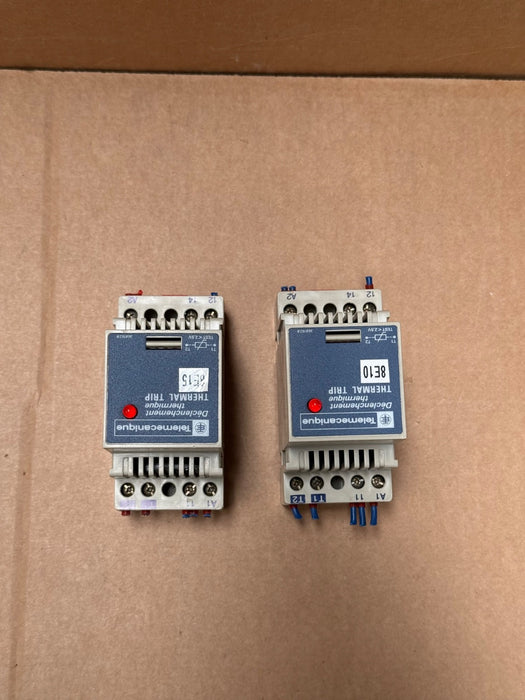

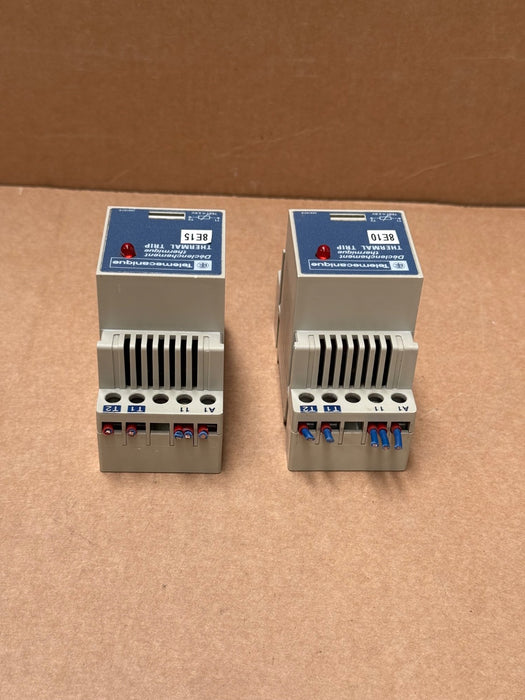

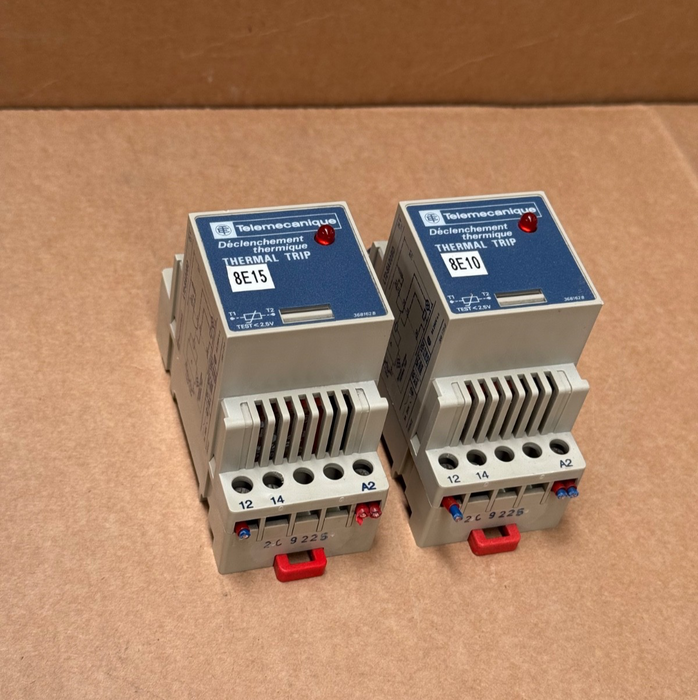

Telemecanique – LT2‑SA00BD – Thermal Trip Relay 24 V, 5–8 A 250 VAC, DIN‑Rail

The Telemecanique LT2‑SA00BD (368 173‑A) is a thermal trip relay rated at 24 V control voltage with a 5–8 A trip current at 250 VAC. Designed to protect motors and circuits from thermal overload, it mounts on DIN-rail and features built-in trip indicators for reliable fault detection.

Key Features:

• Model / Part #: LT2-SA00BD (368 173-A)

• Control Voltage: 24 V DC

• Trip Range: 5–8 A at 250 VAC ()

• Standards: IEC 34‑11 / 255‑5, NF‑C 20534, VDE 0110/0160/0435

• Contacts: SPDT output rated 5 A @ 250 VAC

• Mounting: DIN‑rail

• Indicators & Terminals: Front LEDs and labeled screw-terminals

• Origin & Weight: Made in France, ~140–150 g
