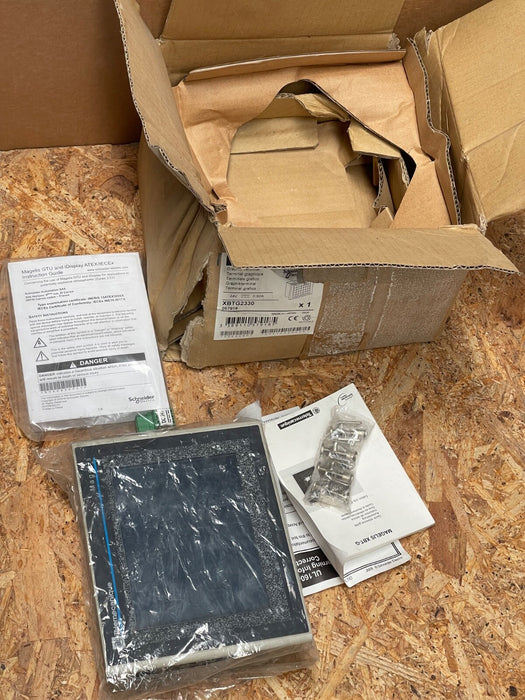

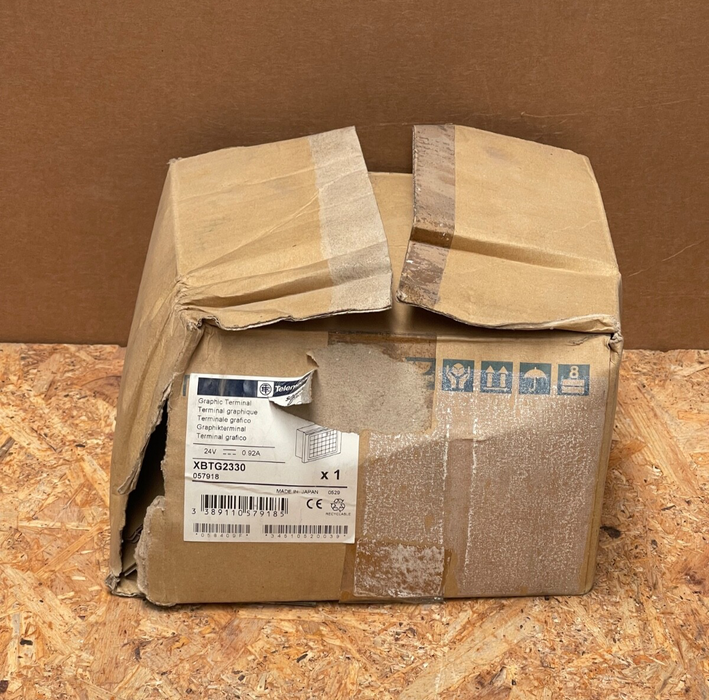

Telemecanique – XBTG2330 – 5.7″ Magelis/Pro-face QVGA Touchscreen HMI, 24 V DC

The Telemecanique XBTG2330 (also labeled XBT-G2330) is a compact touchscreen HMI ideal for control panels, offering a 5.7″ QVGA display, reliable operator interaction, and industrial-grade durability. Although originally produced under Telemecanique branding, it integrates seamlessly into Schneider Electric systems as part of the Magelis XBT‑GT family.

Key Features:

• Model: XBTG2330 (aka XBT‑G2330)

• Display: 5.7″ color TFT LCD, 320 × 240 pixel resolution, 65k colors

• Touchscreen: Resistive analog, 1024 × 1024 resolution

• Processor & Memory: 133 MHz RISC CPU; 16 MB Flash, 512 KB battery-backed SRAM

• Interfaces: Ethernet 10/100, RS‑232/422/485 (via COM1/COM2), USB host (for M340, file transfer)

• Power: 24 V DC (19.2–28.8 V), approx. 26–27 W draw, 30 A inrush

• Front Protection: IP65/IP67F; tested for shock, vibration (IEC 61131‑2), ESD 6 kV

• Operating Conditions: 0–50 °C, 10–90 % RH; altitude ≤ 2000 m

• Dimensions: Cut-out 156 × 123.5 mm; front bezel ~132.2 × 88.4 mm
