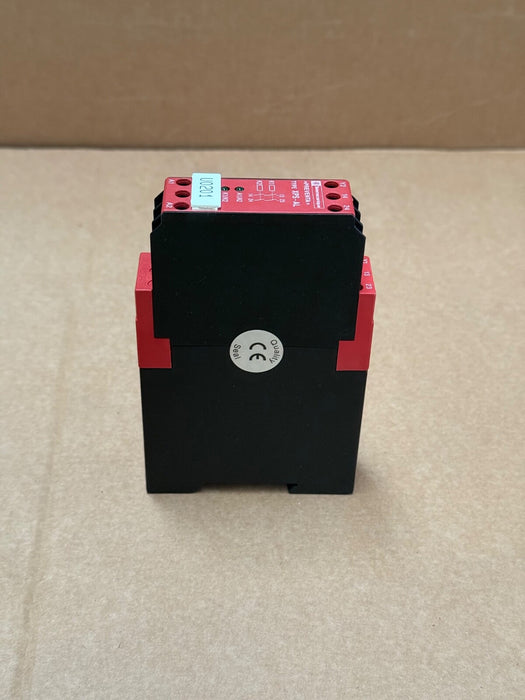

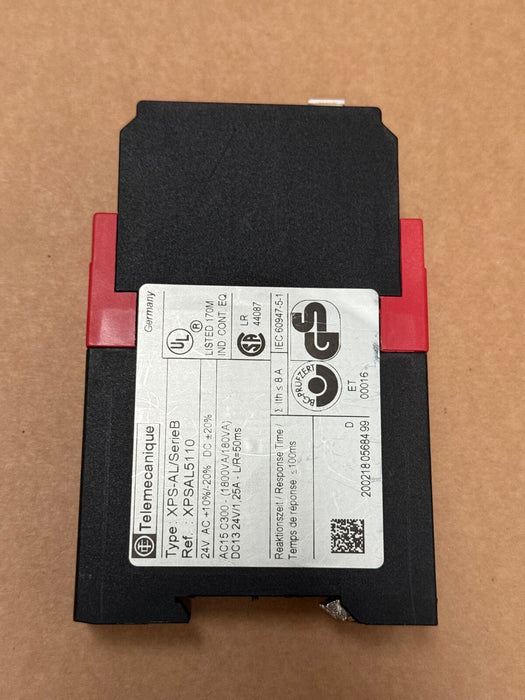

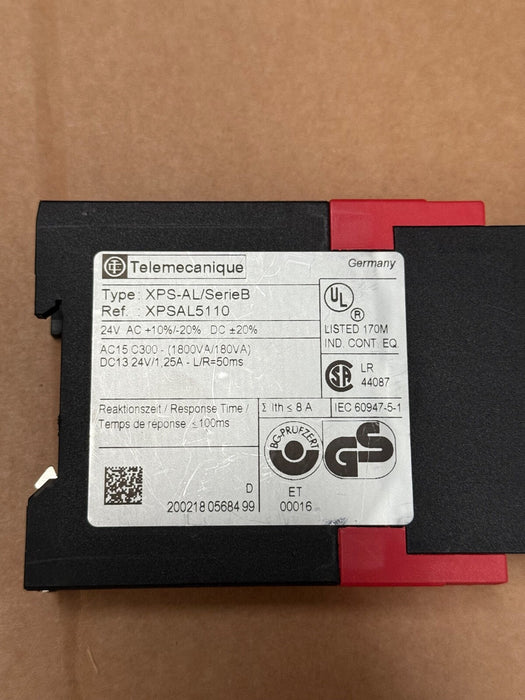

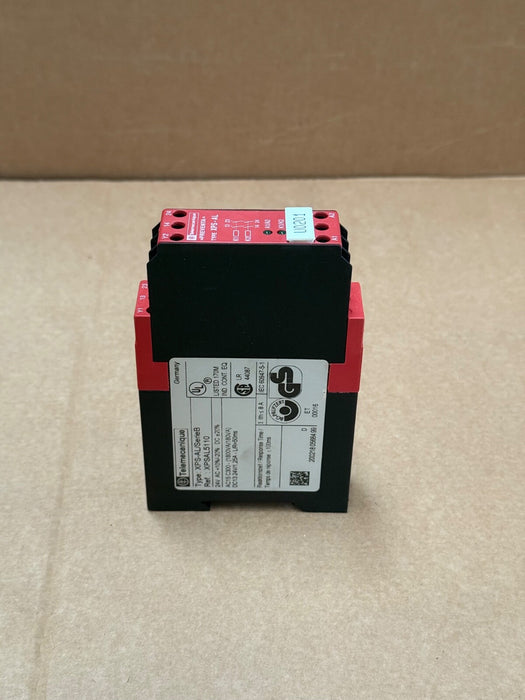

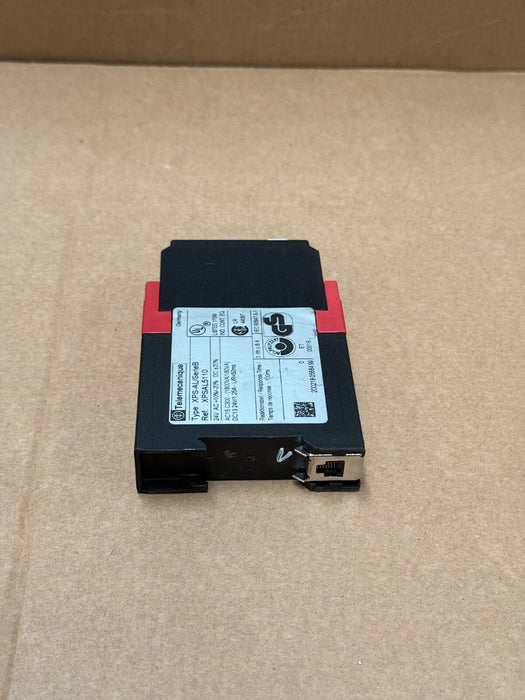

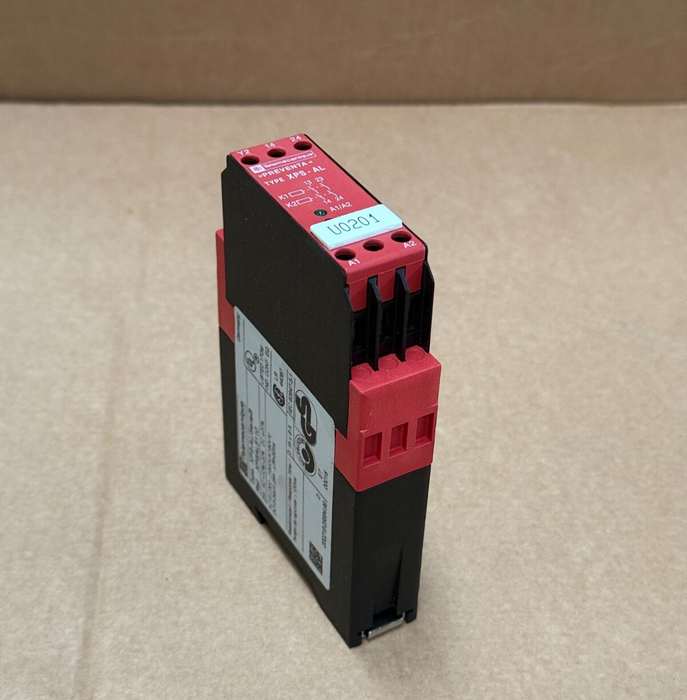

Telemecanique – XPSAL5110 – Safety Relay 24 VAC/DC, 2 NO Outputs, Preventa Serie

The Telemecanique XPSAL5110 from the Preventa XPS‑AL series is a compact DIN‑rail mounted safety relay designed for emergency stop and guard door safety functions. Operating at 24 V AC/DC, it provides 2 safety-rated NO outputs, ensuring reliable disconnection of hazardous energy in industrial control systems. The module is compliant with international safety standards and is widely used in legacy Schneider Electric/Telemecanique installations.

 Key Specifications

• Brand: Telemecanique (Schneider Electric)

• Model / P/N: XPSAL5110

• Supply Voltage: 24 VAC/DC

• Safety Outputs: 2 × NO (normally open) contacts

• LED Indicators: Power and output status

• Mounting: DIN-rail, 35 mm wide

• Terminal Type: Captive screw terminals

• Certifications: Category 4, PL e, SIL CL 3

• Operating Temp: –10 °C to +55 °C

• Protection: IP20 terminals / IP40 housing
