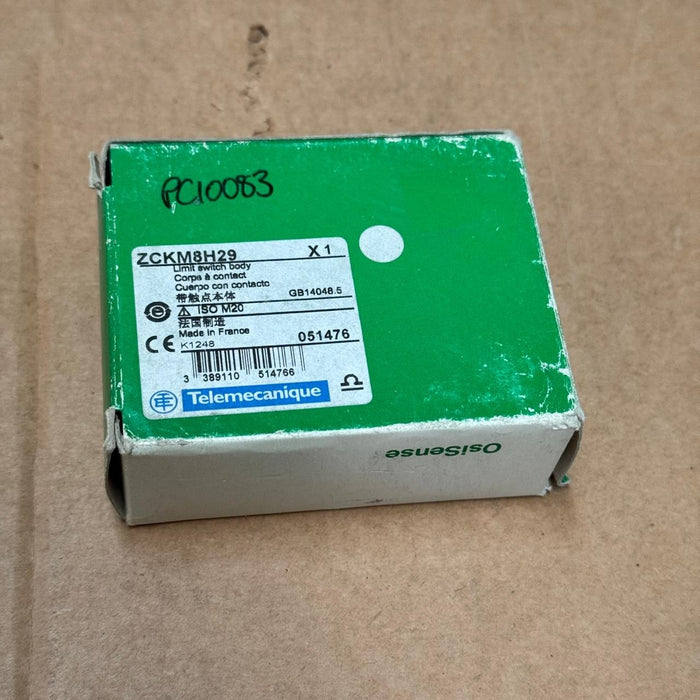

Telemecanique – ZCKM8H29 – XC Limit Switch Body, 2 NO Contacts, M20 Entry

The ZCKM8H29 is a Telemecanique XC series metal limit switch body equipped with two normally open (2 NO) slow-break contacts. Designed for harsh industrial environments, it offers multiple M20 cable entries and compatibility with modular XC actuator heads.

Key Features:

• Model / P/N: ZCKM8H29

• Contact Type: 2 × Normally Open (2 NO), slow-break

• Cable Entry: 3 × M20 × 1.5

• Electrical Rating: 3 A @ 240 VAC (AC-15), 0.27 A @ 250 VDC (DC-13)

• Connection: Screw clamp terminals (0.5–2.5 mm²)

• Housing: Metal enclosure

• Mechanical Life: 5 million cycles

• Protection: IP66, IK05

• Mounting: Modular with XC series actuator heads
