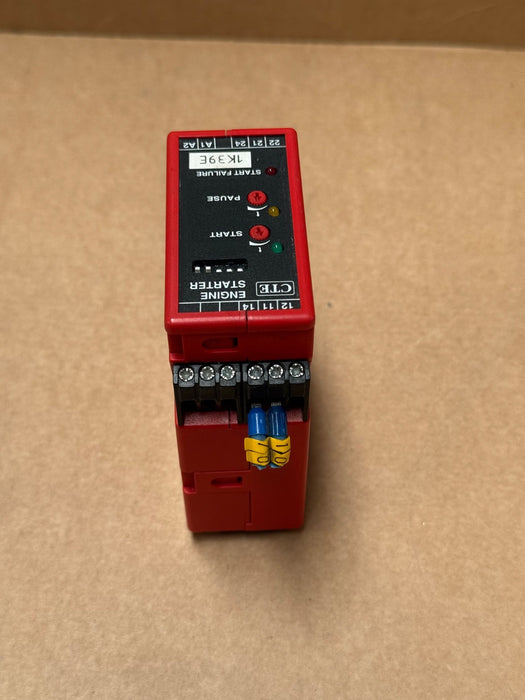

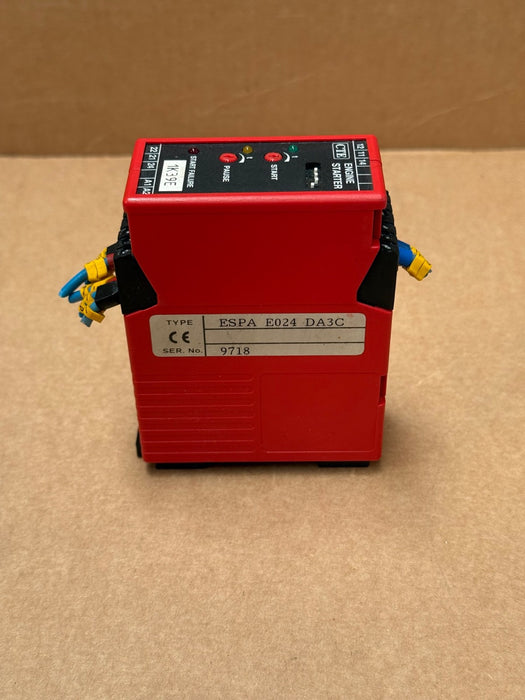

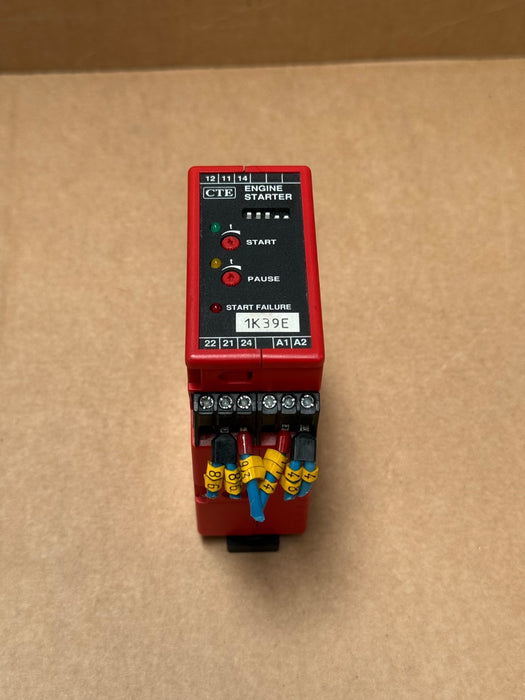

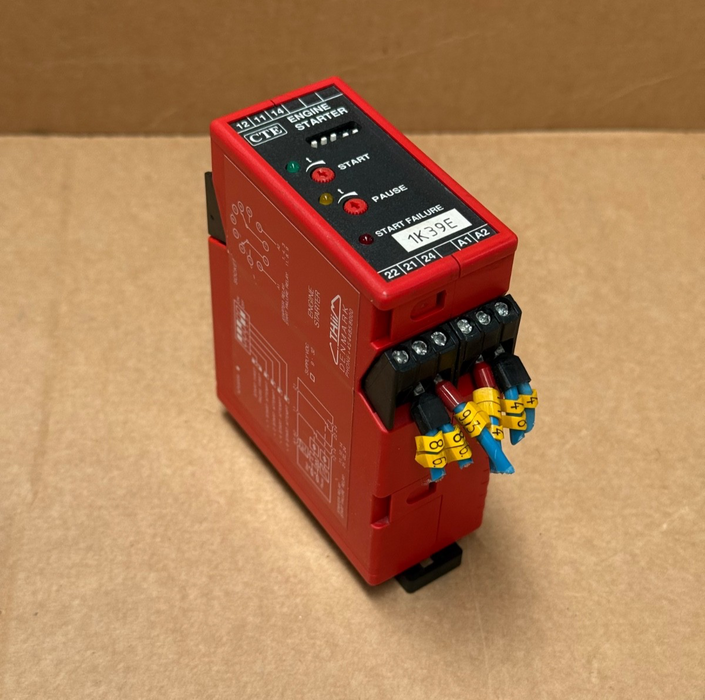

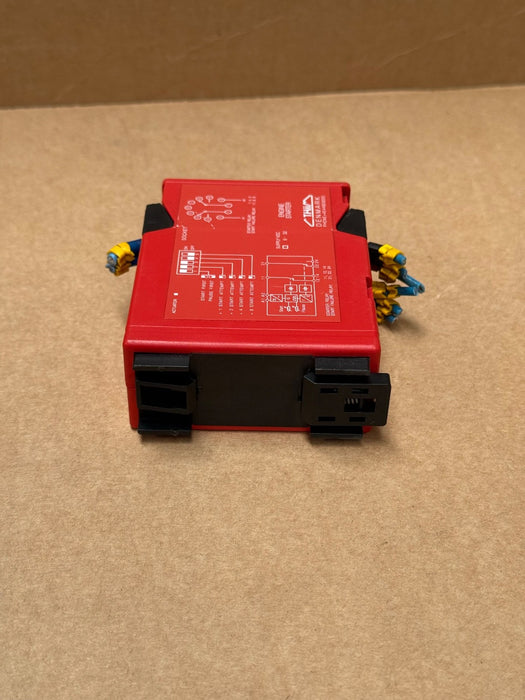

Thiim – ESPA E024 DA3C – 24 VDC Engine Starter Relay, Adjustable Timing

Thiim ESPA E024 DA3C is a DIN‑rail engine‑starter timing relay for 24 VDC systems. It offers dip‑switch adjustable start/pause times (0.5–10 s start, 1–20 s pause), selectable retry cycles up to 15 attempts, plus a built‑in start‑failure contact. Ideal for automatic control of generators, compressors, pumps, and other engine‑driven equipment.

Key Specs:

• Supply Voltage: 24 VDC (range 9–30 V)

• Time Ranges: Start = 0.5–10 s, Pause = 1–20 s; dipswitch‑adjustable

• Retry Attempts: Up to 15 cycles

• Outputs: 2 × SPDT relays, 6 A @ 250 VAC

• Dimensions: DIN‑rail, 35 mm width

• Compliance: EN50081, EN50082, EN60255; dielectric to 4000 VAC

• Operating Temp: –25…+55 °C
