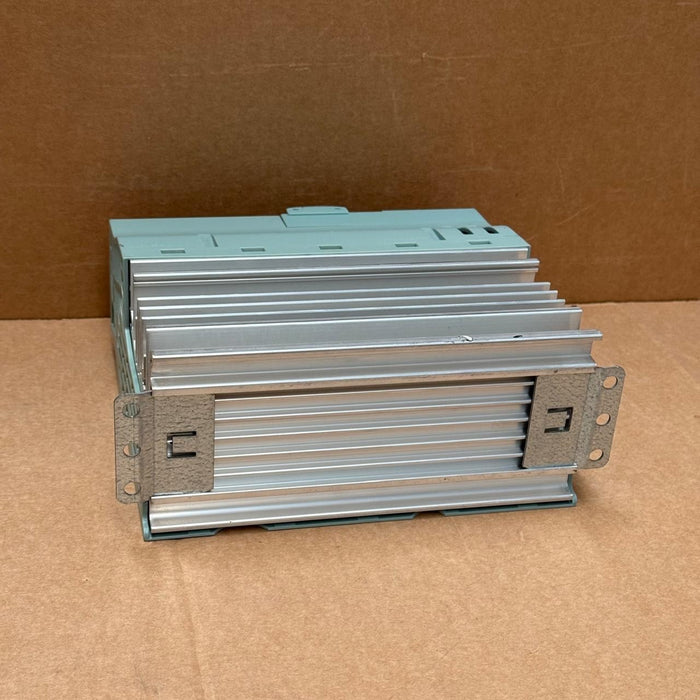

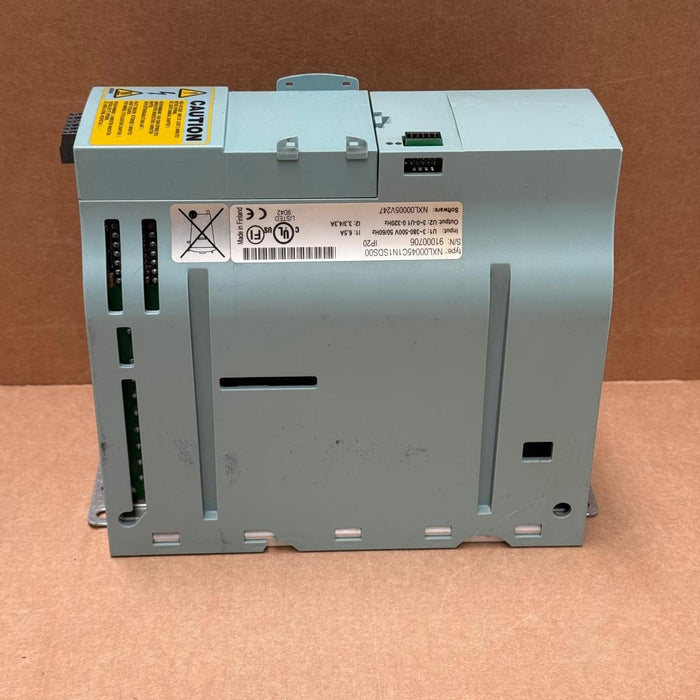

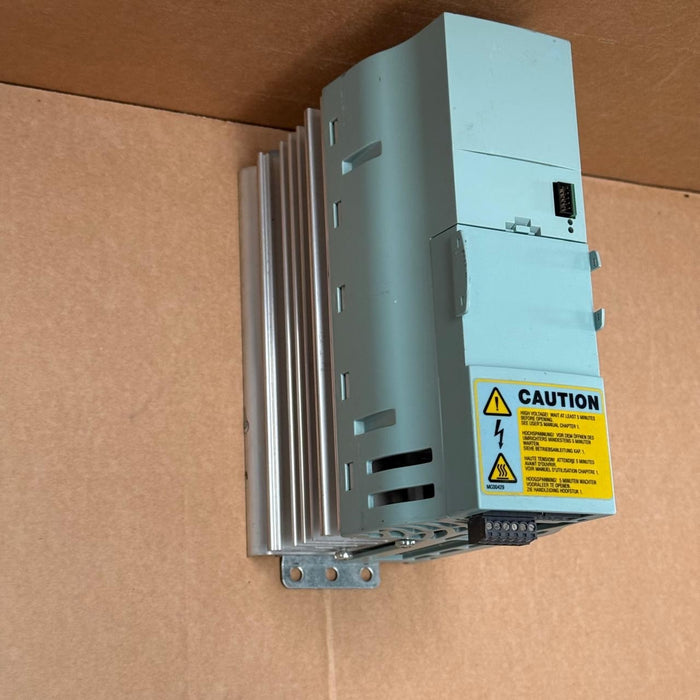

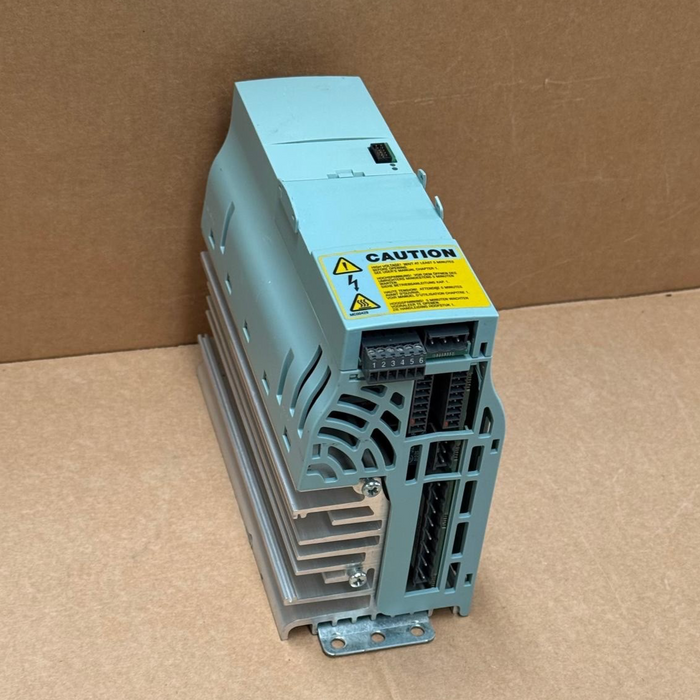

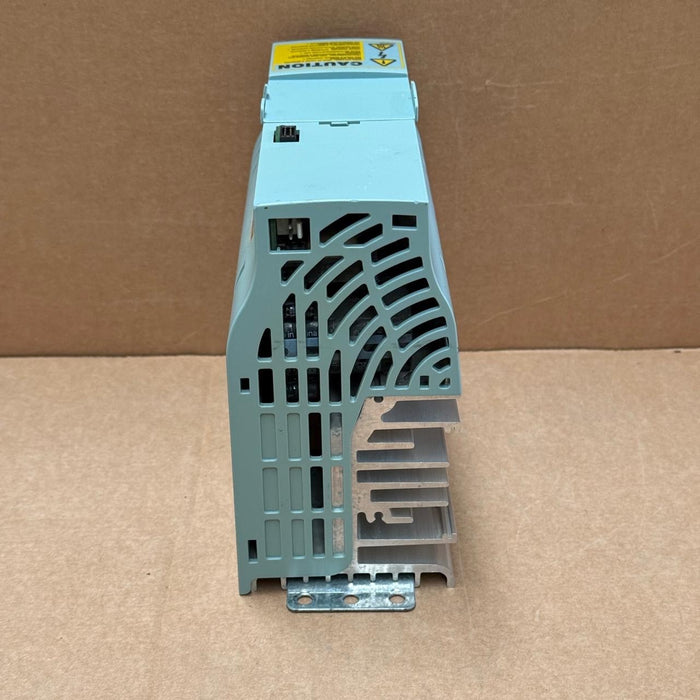

Vacon – NXL00045C1N1SDS00 – NXL Series AC Drive, 0.45 kW, 230 V, 1‑Phase

The Vacon NXL00045C1N1SDS00 is a compact, single-phase AC drive from the NXL Series. It delivers precise speed control for 3-phase motors in HVAC, industrial automation, and machine-building applications. Rated at 0.45 kW, it features easy DIN-rail or panel installation and is ideal for decentralized drive systems.

Key Features:

• Manufacturer: Vacon (now part of Danfoss Drives)

• Series: NXL

• Model / P/N: NXL00045C1N1SDS00

• Power Rating: 0.45 kW (0.6 HP)

• Input Voltage: 230 V AC, 1-phase

• Output Voltage: 230 V AC, 3-phase

• Frequency Range: 0–320 Hz adjustable

• Control Method: V/Hz and sensorless vector control

• Mounting: DIN-rail or wall/panel mountable

• Protection: IP21/NEMA1 (based on housing style)

• Display/Interface: Integrated keypad with LED/LCD indicators (optional variants)

• Applications: Pumps, fans, conveyors, mixers, and small machine systems
