Varco – 96290 – 5V Regulator Board PCBA Assembly

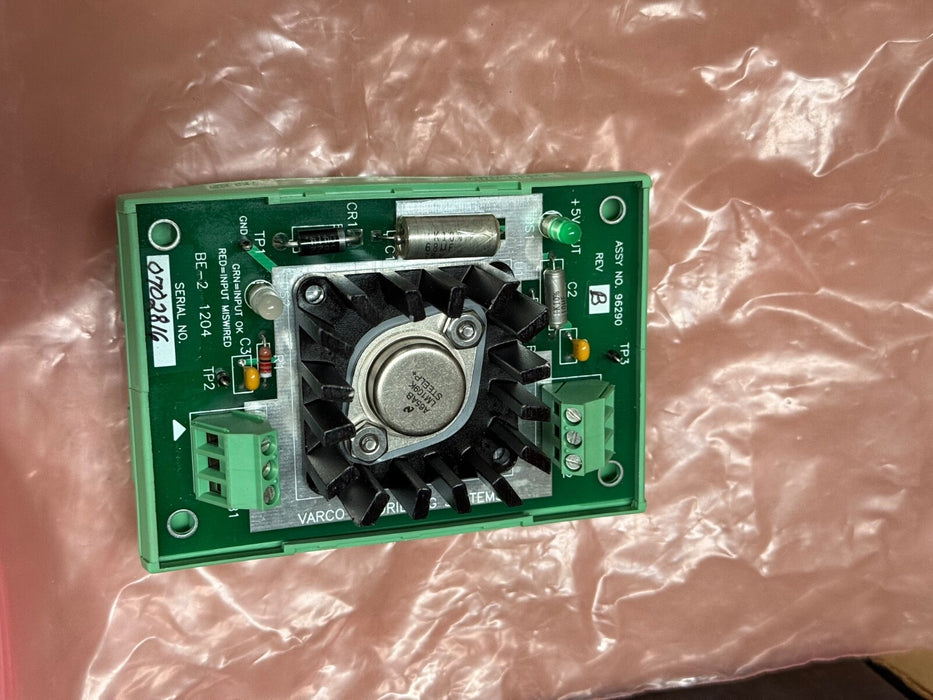

The Varco 96290 is a 5V regulator board designed for stable DC voltage regulation in industrial electronics. This printed circuit board assembly (PCBA) integrates a TO-3 voltage regulator and supporting components, ensuring reliable low-voltage output from higher input sources. Commonly used in energy or control systems, it features LED indicators for input status and thermal management via a heatsink.

Key Features:

• Part Number: 96290

• Manufacturer: Varco (likely Varco International / National Oilwell Varco)

• Output Voltage: +5V DC

• Input: DC voltage (unspecified, presumed 12–24V range)

• Regulator Type: TO-3 metal can (e.g., LM323K style)

• Status Indicators: Green (Input OK), Red (Input Reversed)

• Terminals: Screw-type terminal blocks for input/output

• Cooling: Aluminum heatsink mounted to regulator

• Mounting: Through-hole board with corner screw holes

• PCB Label: BE-221204

• Assy No: 96290 – Rev B
