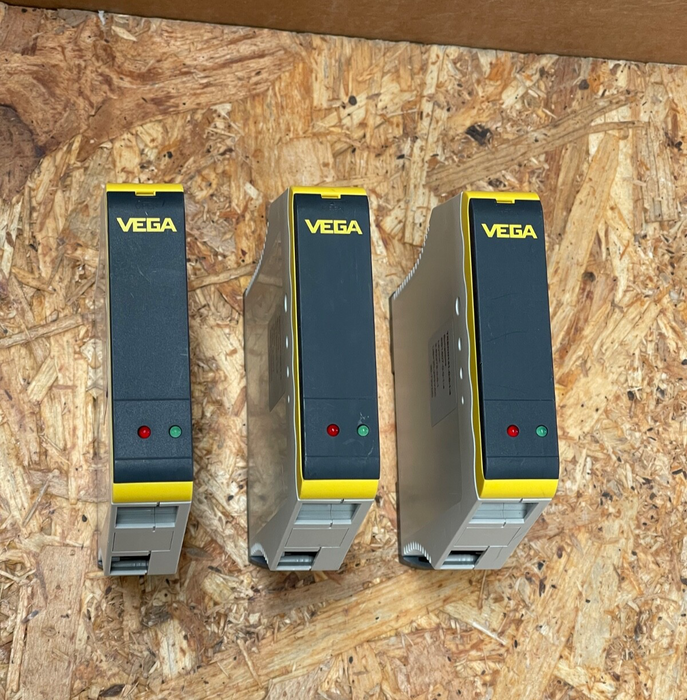

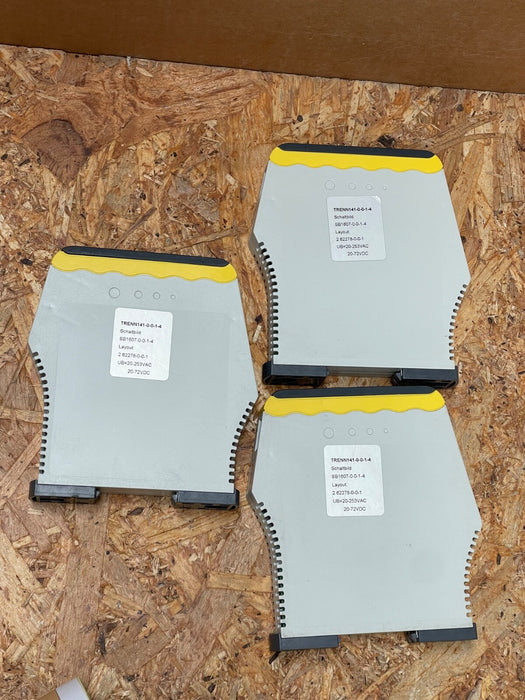

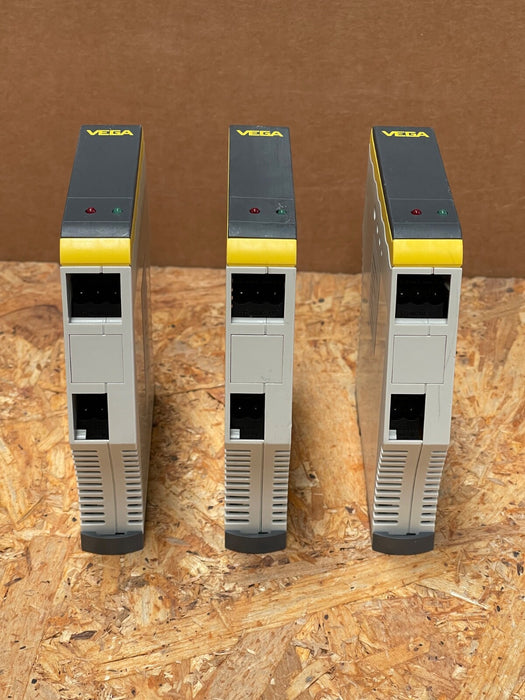

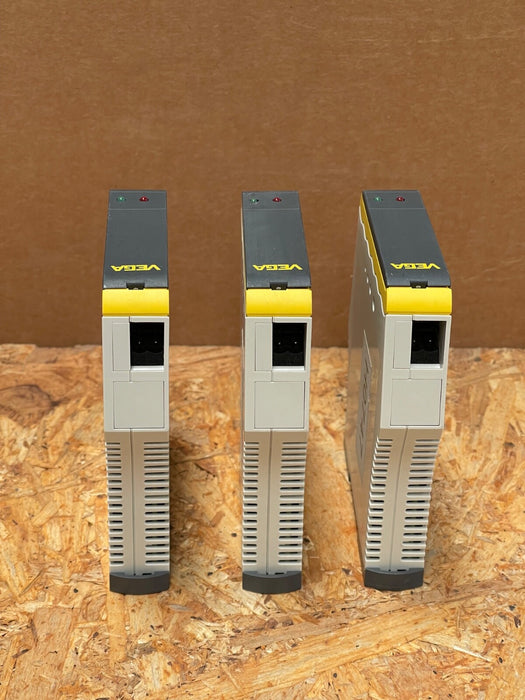

VEGA – VEGAMET 141 (TRENN152.AMXSKXX) – 4–20 mA Controller & 2‑Channel HART

The VEGA VEGAMET 141 is a compact DIN-rail mounted controller and display unit for single-channel 4–20 mA sensors. Designed for applications like pump control, level measurement on flumes/weirs, and overfill protection, it integrates a graphic backlit display, three control relays (with one configurable as fail-safe), and wireless Bluetooth parameterization.

Key Features & Technical Specifications:

• Model: VEGAMET 141 — 4–20 mA input/output, DIN-rail

• Input/Output:

  • 1 × 4–20 mA sensor input (active/passive selectable)

  • 1 × 0/4–20 mA current output

  • 3 × SPDT relays (1 configurable as fail-safe)

• Display & Control: Graphic LCD (black/white) with turn/push button and backlight; icon-based menus

• User Interface: Bluetooth 5.0 for smartphone/PC configuration

• Approvals: ATEX, IEC, c-UL-us, UKEX; IP20 rated

• Power & Environment:

  • Input AC 100–230 VAC or DC 24–65 VDC

  • Power ≤10 VA / 3 W; Operating: –20…+60 °C

• Mounting & Build: DIN-rail (35×7.5 mm), removable coded screw terminals; compact for control cabinets
