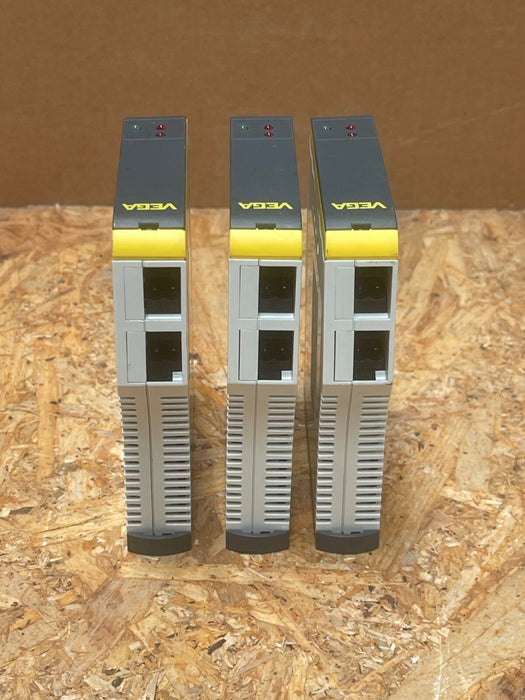

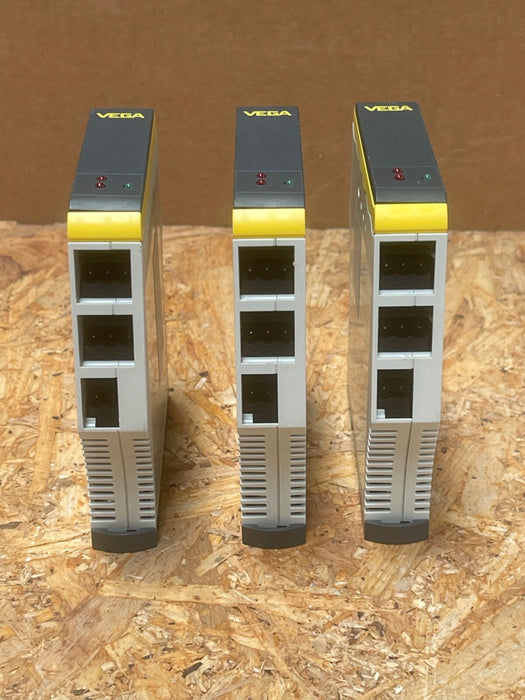

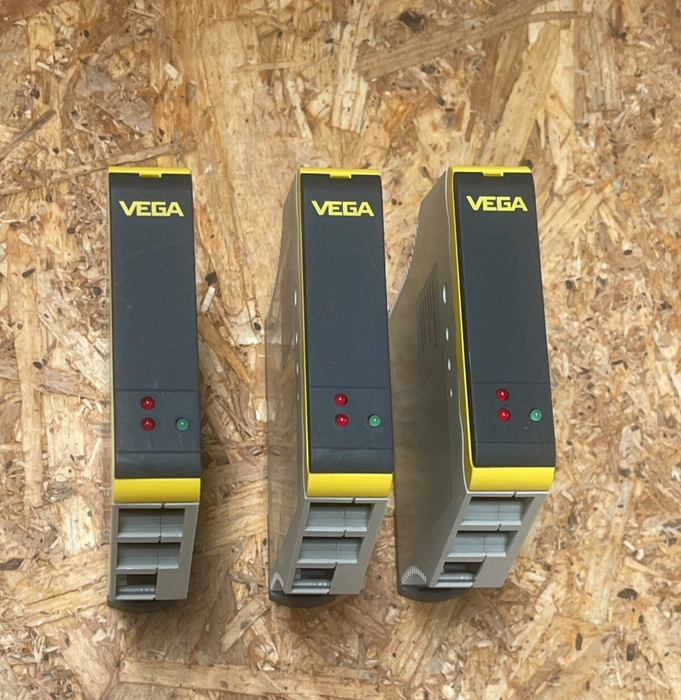

VEGA – VEGAMET 142 (TRENN142-0-0-1-3) Isolator Compact Controller & 2-Channel
This bundle includes the VEGA VEGAMET 142 compact signal controller and the VEGATRENN 142 (TRENN142‑0‑0‑1‑3) 2-channel HART isolating barrier—offering an integrated solution for measurement, control, and intrinsically-safe loop separation. Ideal for industrial applications involving sensors with 4–20 mA signals and HART communication, this setup ensures safe Ex-area interfacing with intelligent control.
VEGAMET 142 – Compact Signal Controller
Inputs: 2 × 4–20 mA (configurable active/passive)
Outputs: 2 × 0/4–20 mA outputs; 3 × SPDT relays (one fail-safe)
Display & Interface: Graphic backlit LCD; rotary push-button; Bluetooth configuration
Approvals & Mounting: ATEX/IECEx, c-UL-us, UKEX; DIN-rail, IP20, –20…+60 °C
Applications: Pump/level control, weir flow measurement, overfill protection, differential/totalizer functions

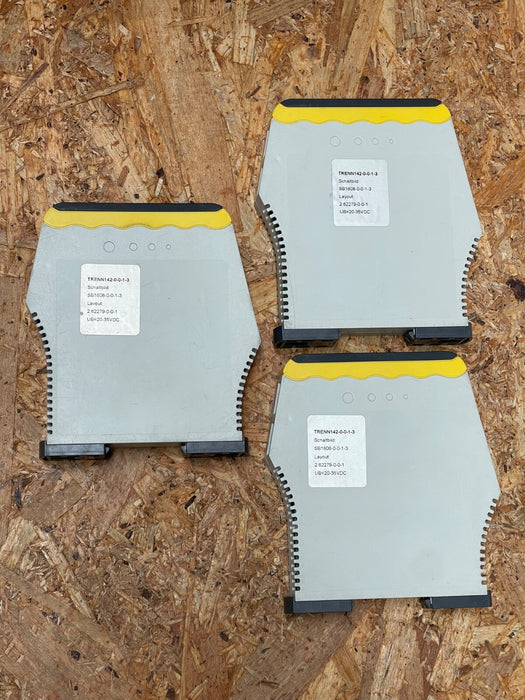

TRENN142 – 2‑Channel HART Isolating Barrier
Function: Loop-powered galvanic separator for 2 × 4–20 mA/HART lines
Power: 15–35 V DC loop-powered; no external supply needed
Safety & Certifications: Ex‑approved for intrinsically safe areas; SIL 2; supports full HART bidirectional communication
Mounting & Build: DIN‑rail with coded screw terminals; IP20; –20…+60 °C
