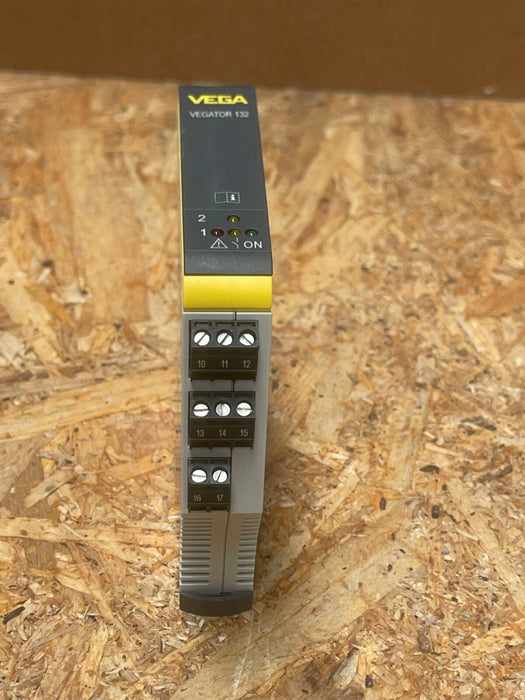

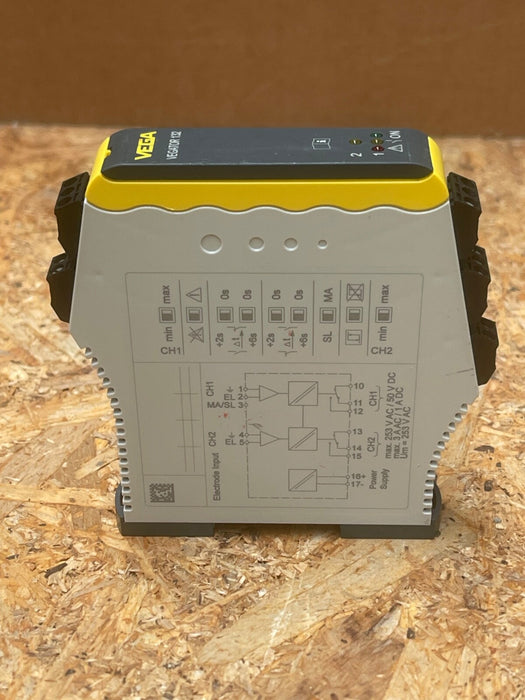

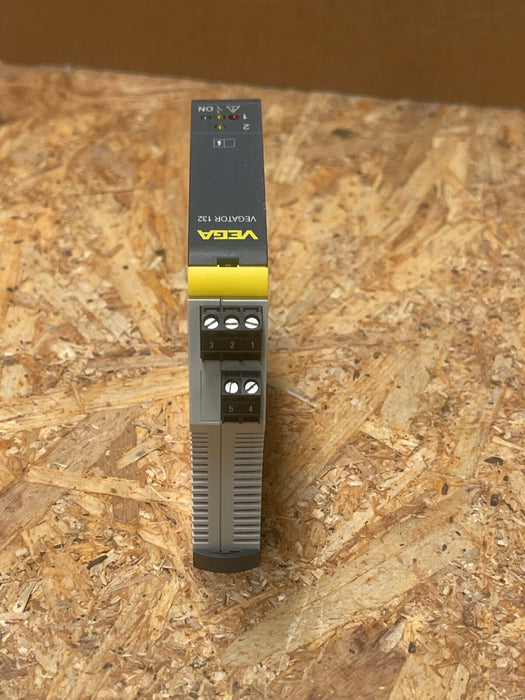

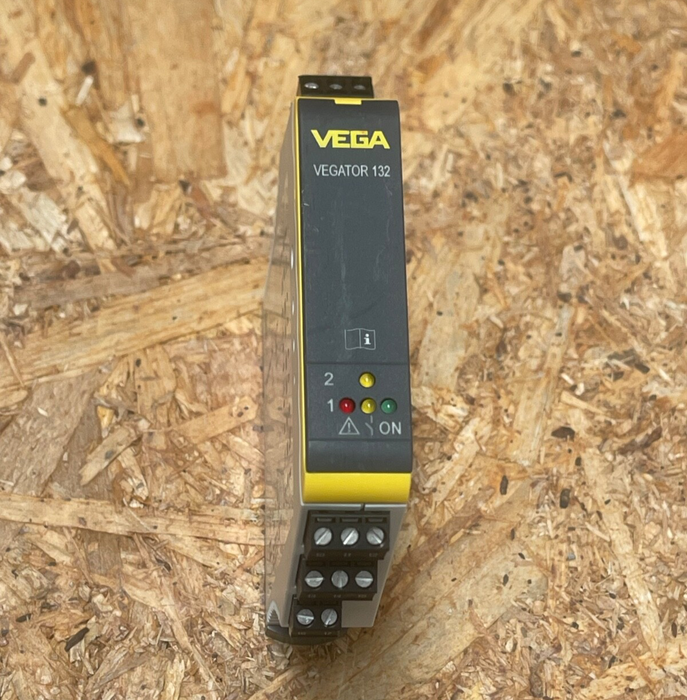

VEGA – VEGATOR 132 (TOR132.AXXXKXX) – Dual-Channel Level Controller
The VEGA VEGATOR 132 (TOR132.AXXXKXX) is a dual-channel signal conditioner designed for conductive EL-series probes, offering reliable level detection and pump control in industrial applications. Compact and DIN-rail mountable with coded terminals, it features two independent control relays and failsafe diagnostics—ideal for alarm or control logic in process systems.
Key Features & Technical Specifications:
Model: TOR132.AXXXKXX – VEGATOR 132 dual-channel controller
Inputs: 2 × conductive probe inputs (EL series) – suitable for level monitoring or min/max control
Outputs: 2 × SPDT relay outputs; max 3 A DC or 3 A AC @ 230 VAC
Power Supply: 24–230 VAC (±15%) or 24–65 VDC; ≤2 W power consumption
Fault Detection: Integrated line-break and short-circuit monitoring with LED indicators
Mounting: DIN-rail (35×7.5 mm); detachable, coded screw terminals; IP20 housing
Environment: –20…+60 °C operating; IP20 rated; compact footprint (~113 × 55 × 20 mm)
Certifications: ATEX, IEC approvals for industrial use; UL/CE marked
