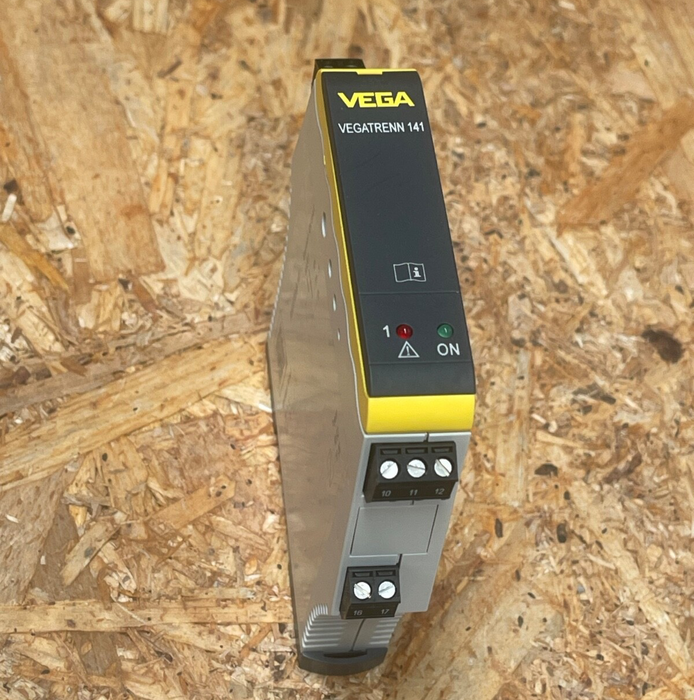

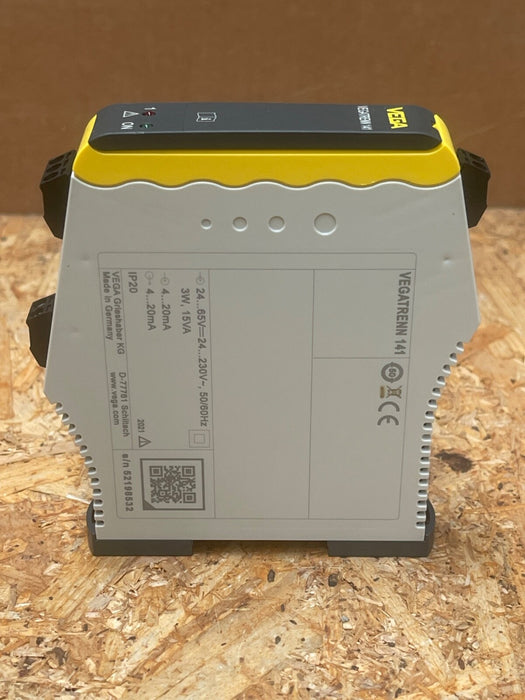

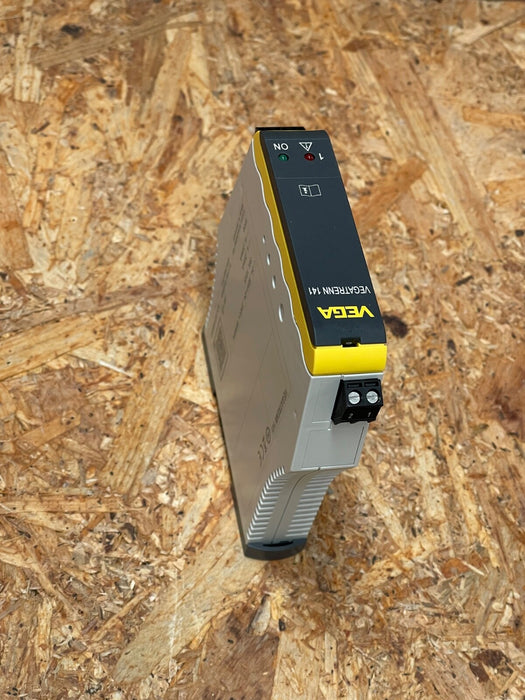

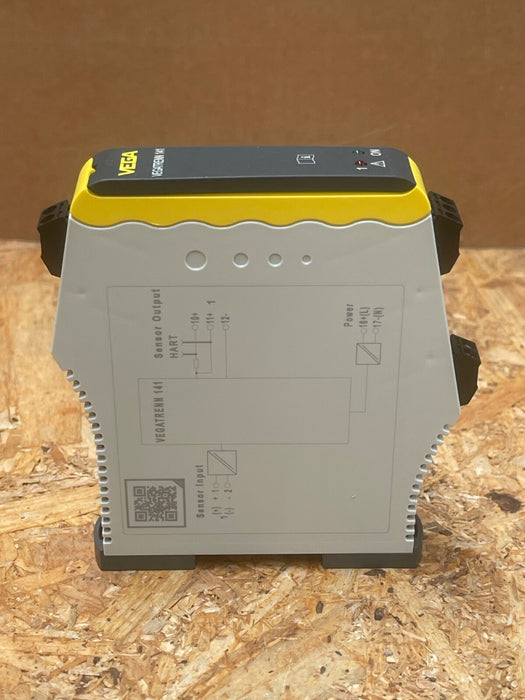

VEGA – VEGATRENN 141 – Single-Channel HART Signal Barrier, Loop‑Powered, Ex‑Rate

The VEGA VEGATRENN 141 is a single-channel isolating barrier for 4–20 mA HART sensor loops in hazardous areas. Designed to provide galvanic separation between the field and control systems, it supports full bidirectional HART communication and operates as a loop-powered device—no external supply required. Ideal for Ex Zone 0/1 applications.

Key Features:

• Model: VEGATRENN 141 (TRENN141.AXXXKXX)

• Channels: 1 × 4–20 mA HART (passive loop-powered)

• Power Supply: 15–35 V DC (loop-powered)

• Voltage Drop: ≤5 V at 20 mA

• HART Support: Bidirectional communication via terminals or front sockets

• Intrinsic Safety: Ex-approved (ATEX, IECEx, SIL 2)

• Mounting: DIN-rail (35 mm), removable coded terminals

• Operating Temp: –20 °C to +60 °C

• Enclosure: IP20, slim design (~113 × 20 × 56 mm)
