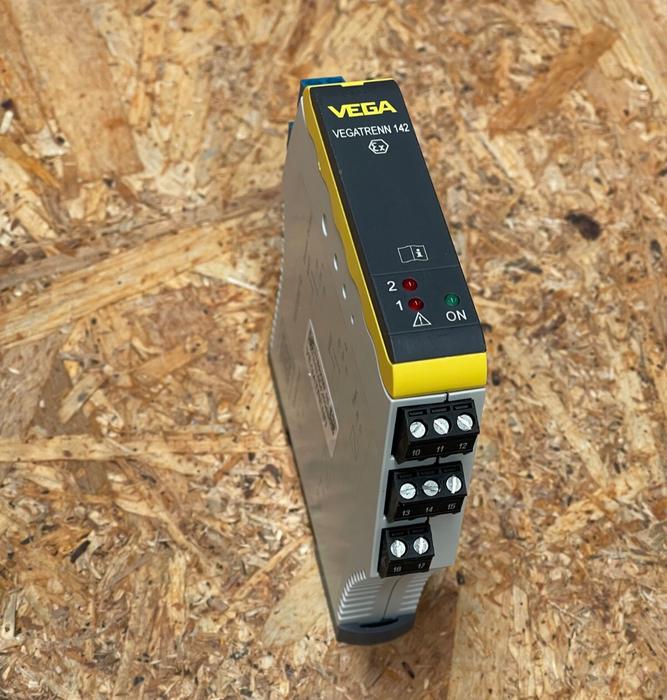

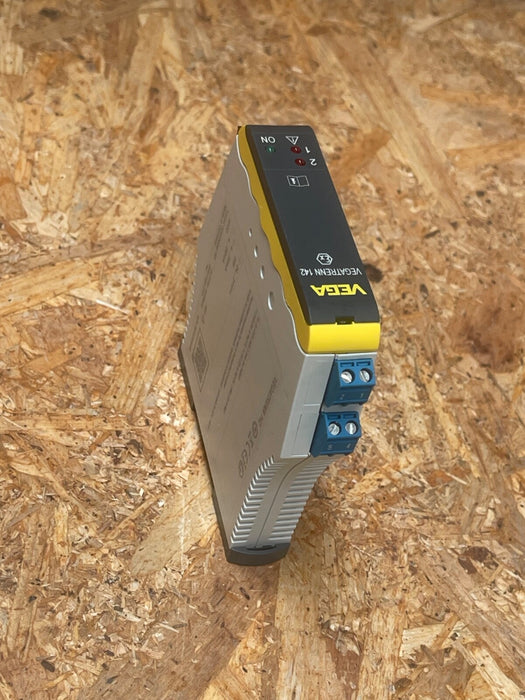

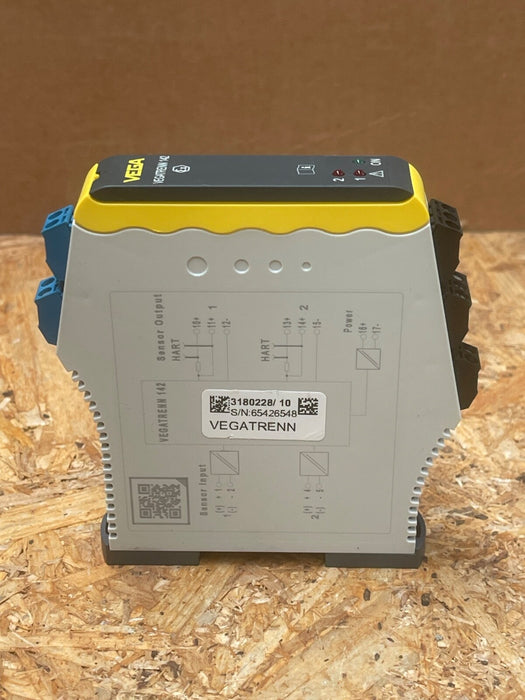

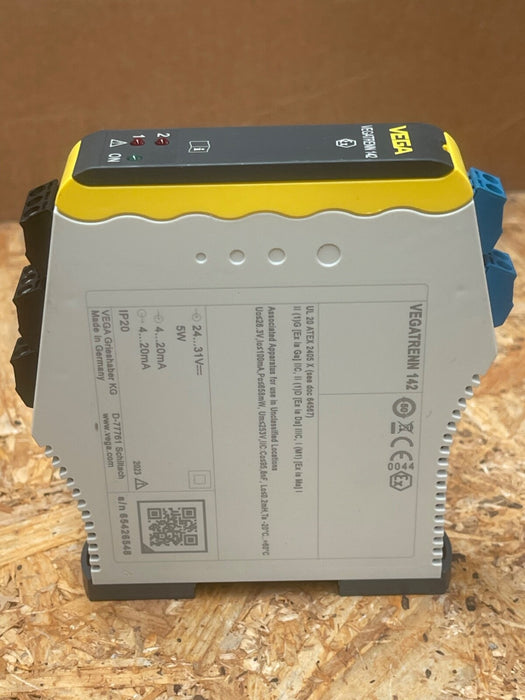

VEGA – VEGATRENN 142 – 2‑Channel HART Signal Barrier, Loop‑Powered, Ex‑Rated

The VEGA VEGATRENN 142 (TRENN142.AXXXKXX) is a dual-channel isolating barrier for integrating 4–20 mA HART loops from hazardous zones into safe-area control systems. It provides galvanic isolation, supports bidirectional HART communication, and requires no external power due to its loop-powered design. Suitable for Ex Zone 0/1 applications, with SIL 2 certification for safety-critical processes.

Key Features:

• Model: TRENN142.AXXXKXX

• Channels: 2 × 4–20 mA HART (passive loop-powered)

• Power Supply: 15–35 V DC (loop-powered)

• Voltage Drop: ≤5 V at 20 mA

• HART Support: Full bidirectional communication

• Safety Approvals: ATEX, IECEx, SIL 2

• Mounting: DIN-rail (35 mm), coded removable terminals

• Operating Temp: –20 °C to +60 °C

• Housing: IP20; slim DIN-compatible profile (~113 × 52 × 20 mm)
