VEGA – VEGATRENN 142 (TRENN142.AXXXKXX) – 2‑Channel HART Barrier

The VEGA VEGATRENN 142 (TRENN142.AXXXKXX) is a double-channel signal isolator designed to integrate intrinsically-safe 4–20 mA/HART sensor loops into safe-area control systems. It provides loop-powered galvanic isolation, ATEX/IECEx approvals, SIL 2 safety, and full bidirectional HART transparency via front sockets or terminals. Ideal for hazardous-area installations requiring uncompromised signal integrity and access.

 Key Features & Technical Specs:

• Model: TRENN142.AXXXKXX – 2 × 4–20 mA/HART isolator

• Power Requirements: Loop-powered from 24–230 VAC or 24–65 VDC; no external 24 V DC needed

• Sensor Loop Specs:

  • 2 active input channels (4–20 mA/HART)

  • Terminal voltage 16.5–21 V DC at 4–20 mA; short-circuit current < 26 mA

• Output: 2 × isolated 4–20 mA retransmission; ripple < 50 µA RMS

• HART Access: Full bidirectional transparency via front sockets or terminals

• Isolation & Safety: Galvanic separation; Ex-approved for hazardous zones, SIL 2 certified; IP20 housing, operating –20…60 °C

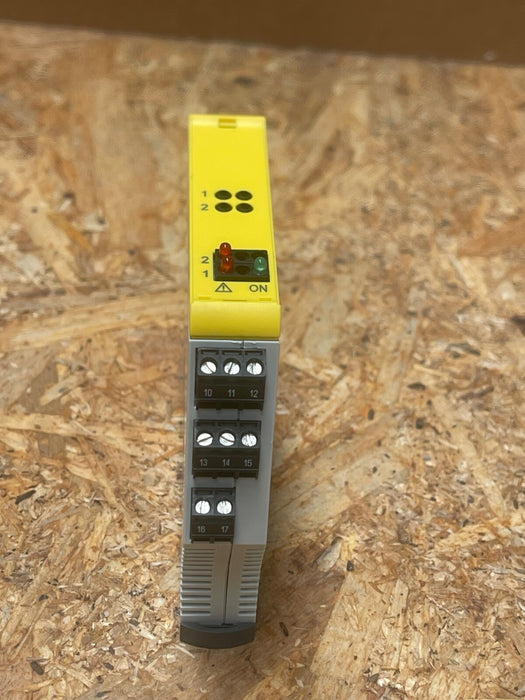

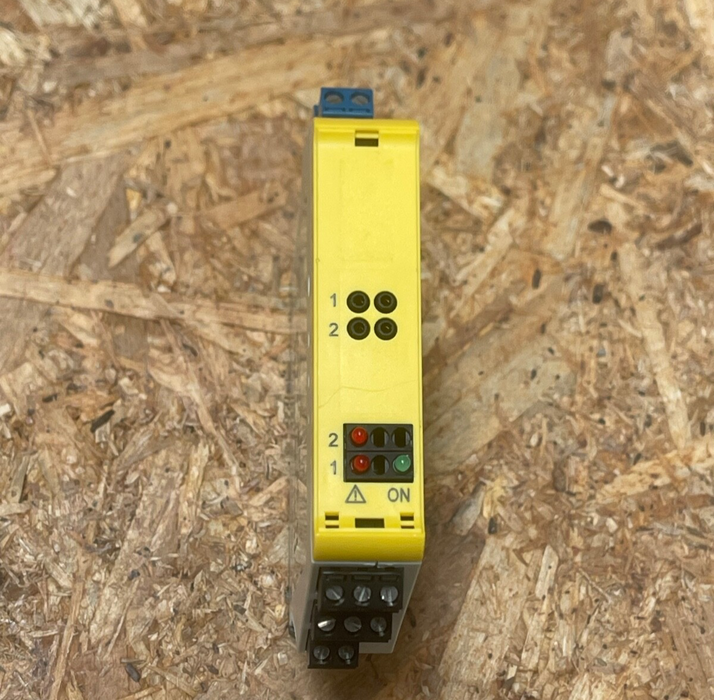

• Installation: DIN-rail (35 mm), coded screw terminals, polycarbonate housing; LEDs for status indication
