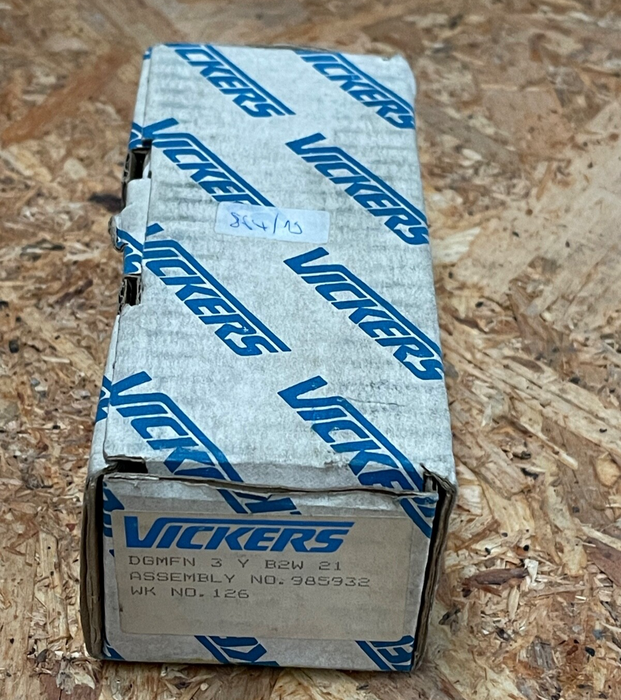

Vickers - DGMFN-3-Y-A2W-B2W-21 - Modular Dual Flow Control Valve CETOP 03 315bar

The Vickers DGMFN-3-Y-A2W-B2W-21 is a modular dual flow control valve designed for precise flow regulation in hydraulic systems. Part of the SystemStak™ series, this valve features a CETOP 03 (NG6) interface, allowing for compact stacking with other modular components. It is engineered to provide adjustable flow control in both A and B ports, making it ideal for applications requiring balanced flow regulation.

Key Features:

• Model: DGMFN-3-Y-A2W-B2W-21

• Brand: Vickers (by Danfoss)

• Valve Type: Modular Dual Flow Control Valve

• Mounting Interface: CETOP 03 (NG6)

• Maximum Operating Pressure: 315 bar (4,500 psi)

• Flow Capacity: Up to 32 gpm (121 l/min)

• Adjustment Mechanism: Standard slotted screw with locknut

• Needle Types: Coarse adjustment for Port A; Standard control for Port B

• Construction: Hardened steel internals within a ductile iron body

• Applications: Suitable for controlling actuator speeds in industrial hydraulic systems
