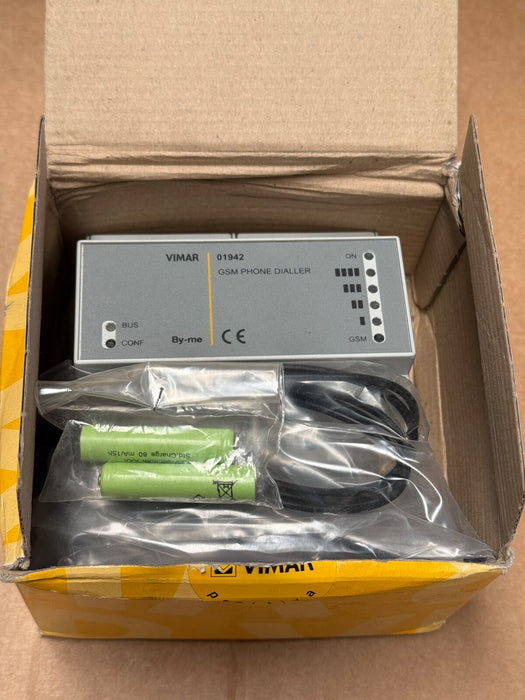

Vimar – 01942 (R01942) – GSM‑BUS Telephone Dialler, DIN‑Rail Module

The Vimar 01942 (R01942) is a GSM‑BUS telephone dialler designed for By‑me Plus home automation systems. Mounted on DIN‑rail, it enables remote alerting and control via SMS and voice calls for alarms, climate zones, and system events. Perfect for integrating mobile communication into residential or light commercial automations.

Key Features & Specifications:

• Model / P/N: 01942 (R01942) GSM‑BUS dialler

• Function: Sends & receives SMS; sends voice calls for alarms

• Power Supply: 12–24 V AC (50–60 Hz) or 12–30 V DC (SELV)

• Bus Interface: Direct BUS connection for By‑me systems

• Installation: DIN‑rail TS35; consumes 6 modules (6 × 17.5 mm)

• Indicators: Green LED (power); red LEDs for GSM operation & signal strength

• User Button: Press to display signal strength via LEDs

• Alarms Supported: Intrusion, tamper, supply absence/restoration, technical alerts via SMS/voice

• Alarm Groups: Supports up to 8 technical SMS groups + voice; 32 scenarios; 40 climate zones via SMS

• Communication: Up to 8 phone numbers; multi-language SMS/voice options; remote config via SMS or EasyTool

• Status: Active product, CE marked, WEEE compliant

• Weight / Size: ~368 g; dimensions ~13.8 × 13.4 × 8.7 cm
