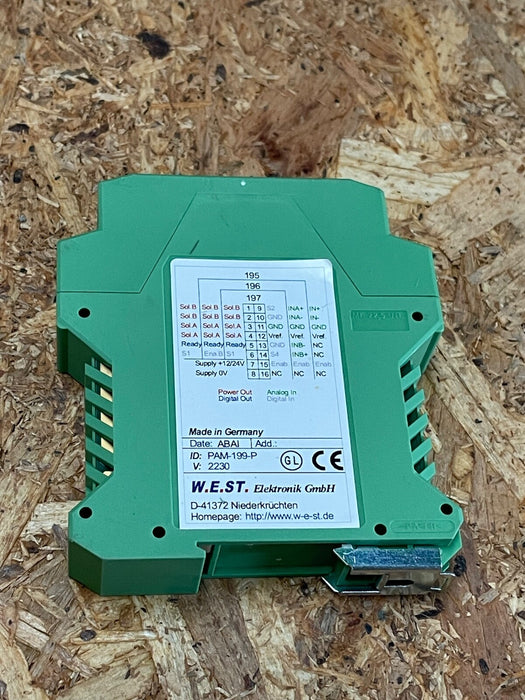

W.E.ST. Elektronik - PAM-199-P - Universal Power Amplifier for Proportional Val.

The W.E.ST. Elektronik PAM-199-P is a universal power amplifier designed for precise control of proportional directional, pressure, or throttle valves. With analog command signal input and versatile configuration options, it ensures optimal performance in various hydraulic applications.

Key Features:

• Model: PAM-199-P

• Brand: W.E.ST. Elektronik

• Function: Power amplifier for proportional valves

• Input Signal: Analog command signal (e.g., ±10 V or 4–20 mA)

• Output Current Range: 0.5 to 2.6 A

• Control Modes: Supports control of directional valves with two solenoids or two independent pressure/throttle valves

• Ramp Function: Configurable ramp-up and ramp-down times for smooth operation

• Dither Function: Adjustable frequency and amplitude to prevent valve stiction

• Characteristic Linearization: 10-point XY curve per direction for precise control

• Monitoring: Integrated failure monitoring and diagnostics

• Mounting: DIN rail mountable

• Housing: Compact design with removable terminal blocks

• Communication Interface: USB Type B for parameterization via WPC-300 software

• Applications: Ideal for industrial automation, mobile machinery, and process control systems requiring accurate valve control
