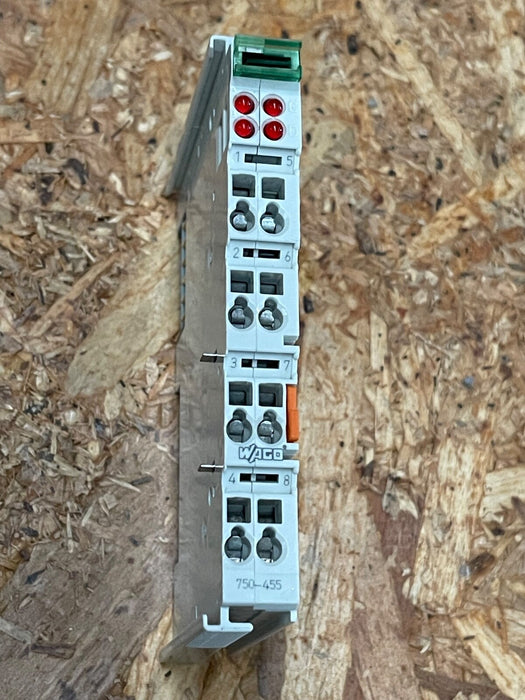

WAGO - 750-455 - 4-Channel Analog Input Module, 4–20 mA, 12-bit, IP20

The WAGO 750-455 is a 4-channel analog input module designed for precise current signal acquisition in industrial automation systems. Each channel accepts 4–20 mA signals, providing 12-bit resolution for accurate data conversion. The module features single-ended inputs and galvanic isolation between the field and system levels, ensuring signal integrity and system safety. Its compact design and DIN rail mounting make it suitable for space-constrained installations.

Key Features:

• Model: 750-455

• Brand: WAGO

• Input Channels: 4 analog inputs

• Input Signal: 4–20 mA

• Resolution: 12-bit

• Input Type: Single-ended

• Galvanic Isolation: Yes, between field and system levels

• Mounting Type: DIN rail

• Enclosure Type: IP20

• Operating Temperature Range: 0 °C to +55 °C

• Standards Compliance: ATEX, UL

• Applications: Ideal for industrial automation systems requiring accurate current signal acquisition for monitoring and control purposes.
