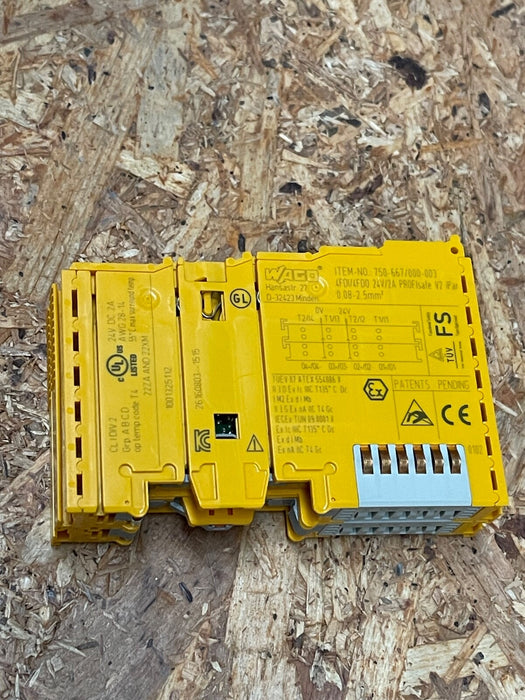

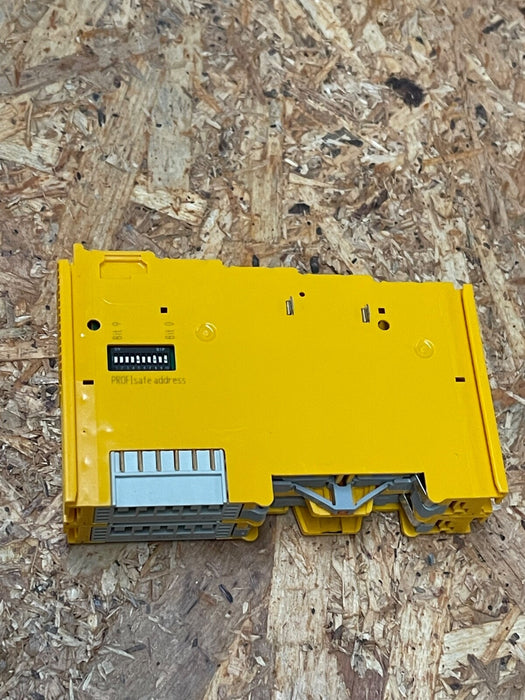

WAGO - 750-667/000-003 - Fail-safe 4/4 Channel Digital I/O Module, 24 V DC, 2 A

The WAGO 750-667/000-003 is a fail-safe digital input/output module designed for safety-critical applications within the WAGO-I/O-SYSTEM 750. It features four digital inputs and four digital outputs, each capable of handling 24 V DC signals at up to 2 A. The module supports PROFIsafe V2.0 communication, ensuring reliable data transmission in safety-related systems. With its ability to monitor short circuits, cross circuits, and power supply status, the 750-667/000-003 enhances system safety and reliability.

Key Features:

• Model: 750-667/000-003

• Brand: WAGO

• Digital Inputs: 4 channels (clock-sensitive)

• Digital Outputs: 4 channels (power outputs)

• Input Current per Channel: Typically 2.2 mA

• Output Current per Channel: Up to 2 A

• Total Output Current: 8 A

• Supply Voltage: 24 V DC

• Communication Protocol: PROFIsafe V2.0

• Mounting Type: DIN rail

• Termination Style: Spring terminal

• Operating Temperature Range: 0 °C to +55 °C

• Protection Class: IP20

• Safety Standards: SIL 3, Cat. 4, PL e

• Monitoring Functions: Short circuit, cross circuit, and power supply monitoring

• Configuration Tool: WAGO-I/O-CHECK

• Dimensions (W × H × D): 24 mm × 100 mm × 67.8 mm

• Weight: Approximately 135 g

• Applications: Ideal for safety-critical automation systems requiring reliable digital input/output processing and compliance with stringent safety standards.
