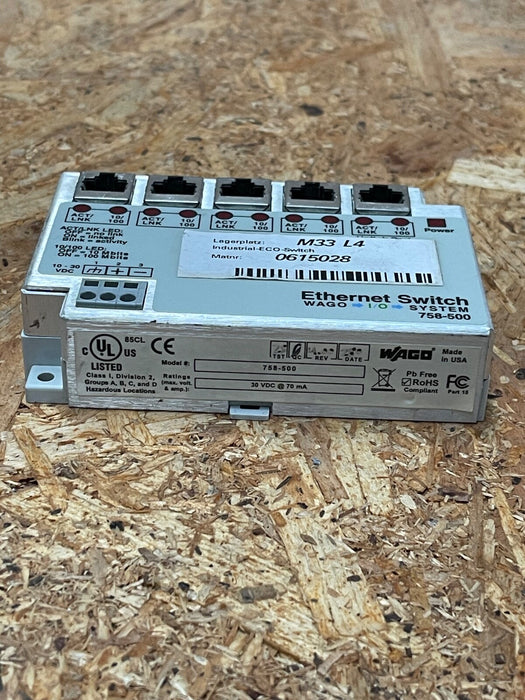

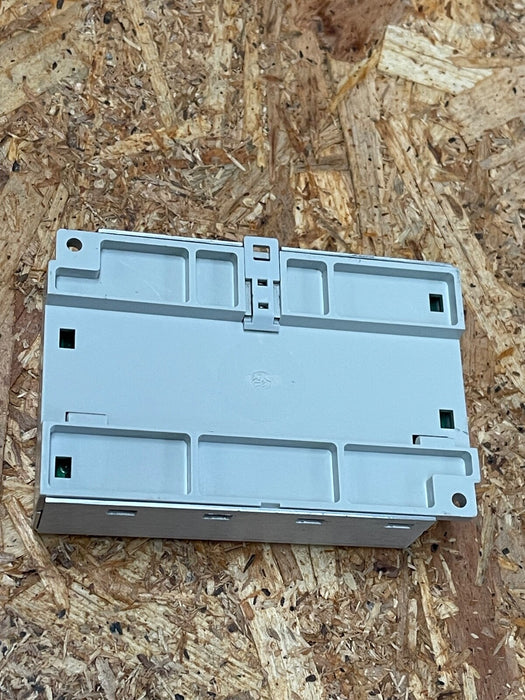

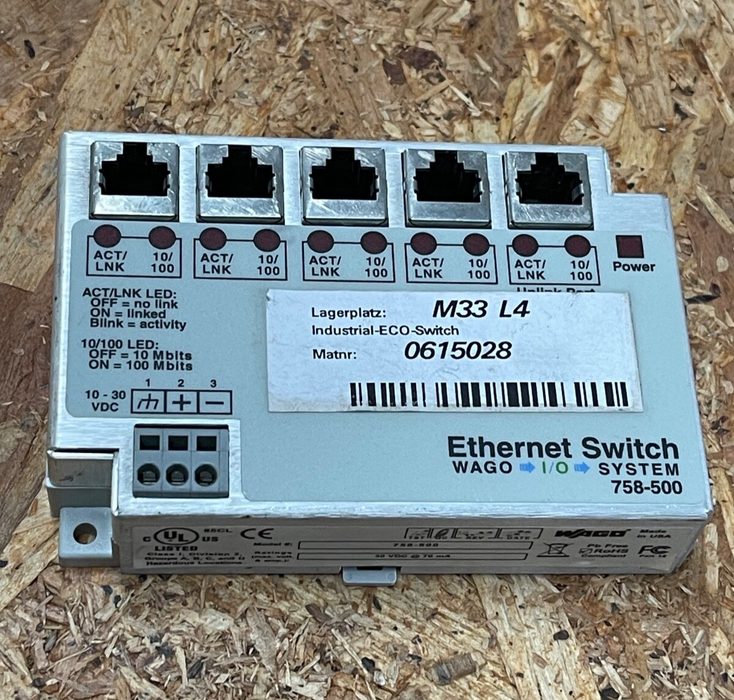

WAGO – 758‑500 – Industrial Ethernet Switch, 5-Port, 10/100 Mbps, DIN-Rail

Main Features

• Manufacturer: WAGO Kontakttechnik GmbH

• Model/MPN: 758‑500

• Device Type: Unmanaged industrial Ethernet switch

• Number of Ports: 5 × RJ45 ports (10/100 Mbps auto-negotiation)

• Operating Voltage: 24–30 V DC (nominal 24 V DC)

• Current Consumption: Approx. 70 mA at 24 V

• Mounting Style: DIN-rail mountable

• Enclosure Rating: IP30

• Dimensions: ~60 × 90 × 75 mm

• Operating Temperature: 0 °C to +55 °C

• Status Indicators: Per-port LEDs for link/activity and power status

• Protection Features:

  • Reverse polarity protection

  • Overvoltage and short-circuit protection

• Applications:

  • Automation systems

  • Industrial networking

  • WAGO I/O system integration

  • PLC and control panel communications
