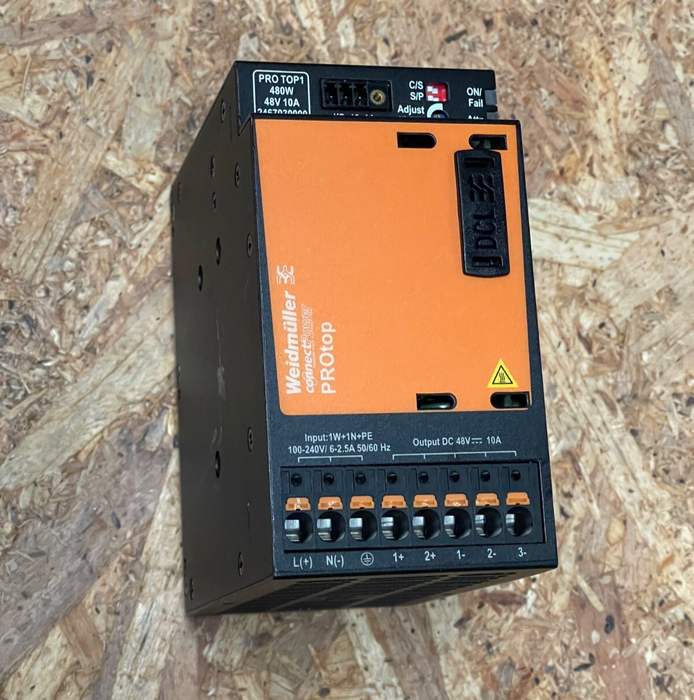

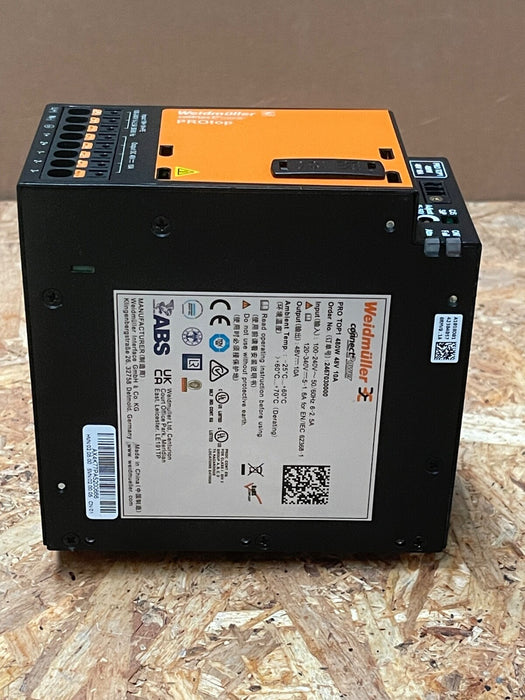

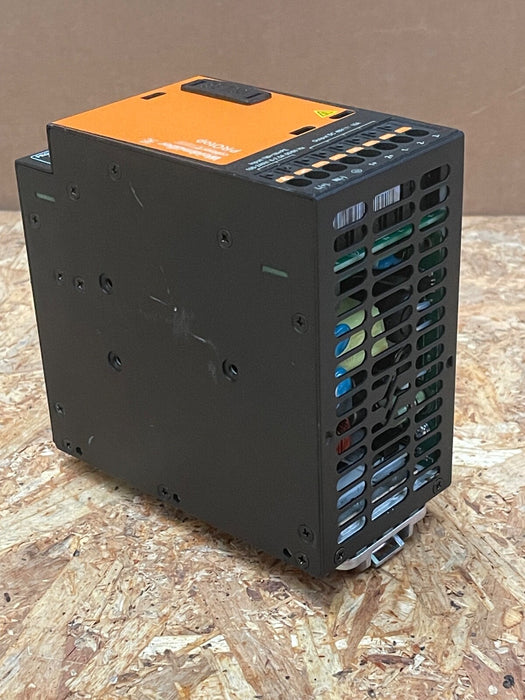

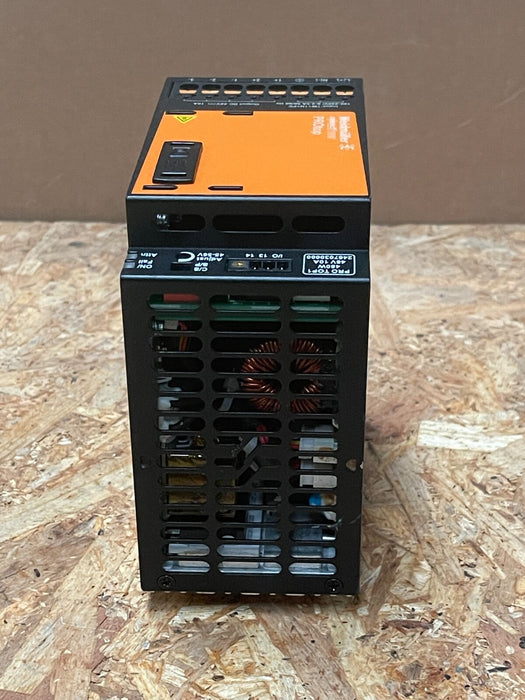

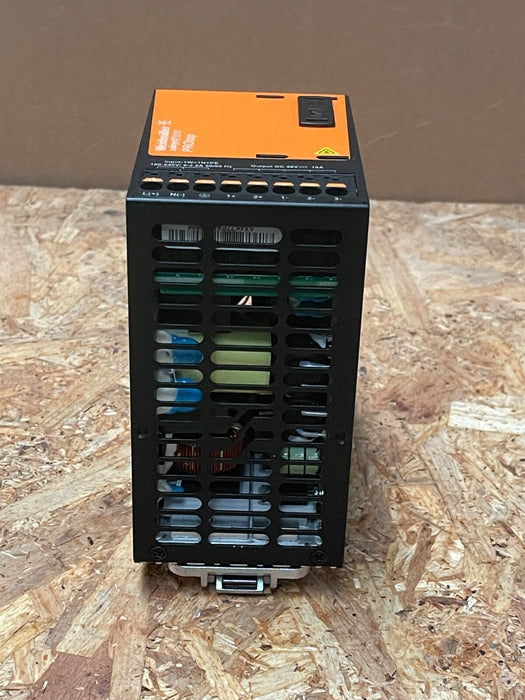

Weidmüller – 2467030000 – PRO TOP1 480 W Power Supply, 48 V DC, 10 A, DIN‑Rail

Main Features

• Manufacturer: Weidmüller – PRO TOP1 Series

• Model/MPN: 2467030000, also listed as PRO TOP1 480 W 48 V 10 A

• Output: 48 V DC, 10 A (480 W) with up to 150 % peak boost for 5 s and 500 % for 15 ms

• Input:

  • AC: 85–277 V AC (45–65 Hz)

  • DC: 80–410 V DC

• Efficiency & Power Factor: 93 % efficiency, PF > 0.9

• Protection:

  • Internal fuse

  • Short-circuit, reverse-polarity, overload protection

  • Surge suppression (varistor)

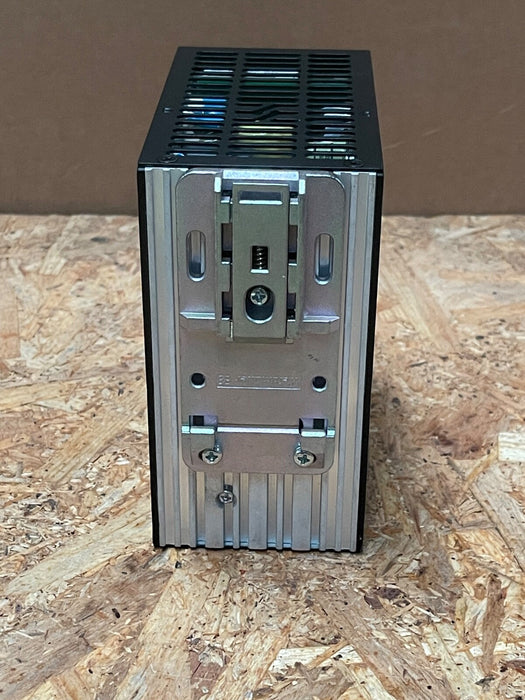

• Mounting: DIN-rail, enclosed metal housing, IP20 rating

• Dimensions & Weight: 68 mm × 125 mm × 130 mm; ~1.52 kg

• Environment:

  • Operating: –25 °C to +70 °C (derating >60 °C)

  • Storage: –40 °C to +85 °C

  • Shock: 30 g, Vibration: 2.3 g on rail / 4 g directly mounted

• Reliability: MTBF > 1.1 million hours at 25 °C, > 0.55 million hours at 40 °C

• Certifications/Standards:

  • RoHS compliant

  • EMC (EN 55032/B, 55024)

  • Surge category III/II, insulation to 3.5 kV

  • PEAK backup bridging > 20 ms at nominal load
