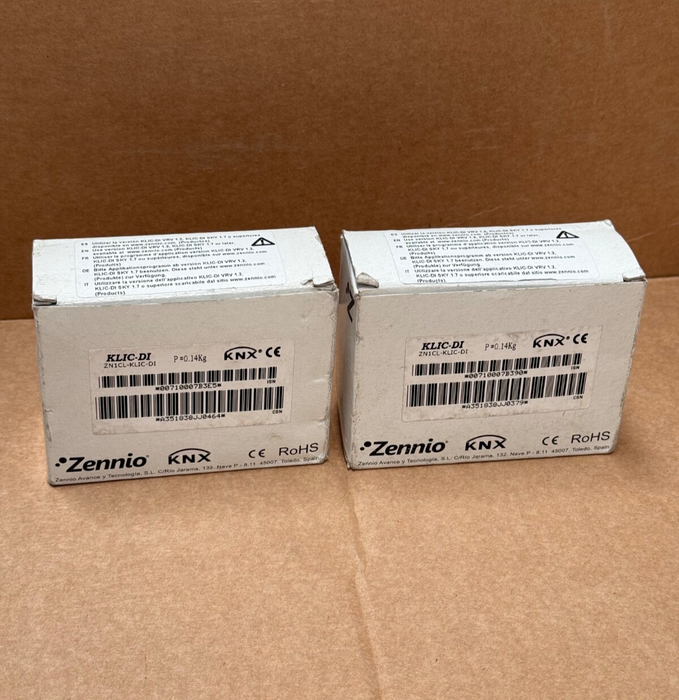

Zennio – KLIC‑DI (ZN1CL‑KLIC‑DI) – KNX↔Daikin SkyAir/VRV AC Interface, 2‑Module

The Zennio KLIC‑DI (ZN1CL‑KLIC‑DI) is a DIN-rail mount KNX gateway designed to integrate Daikin commercial-grade SkyAir or VRV HVAC systems with KNX automation networks. It enables bidirectional communication, allowing full control and monitoring of Daikin units directly from the KNX bus and supports two auxiliary analog/digital inputs for additional sensors or controls.

Key Features & Specifications

• Model / P/N: ZN1CL‑KLIC‑DI

• Function: Bidirectional interface between KNX and Daikin SkyAir/VRV air-conditioning systems

• Mounting: 2-DIN units, DIN-rail (90 × 60 × 35 mm)

• Connections: Integrated KNX BCU; 2-wire Daikin P1/P2 interface cable

• Aux Inputs: Two analog/digital sensor inputs (temp probes, motion, switches)

• HVAC Control: On/Off, mode, temperature setpoint, fan speed, flap position, error alerts, scenes, logic functions

• Logic Functions: Built-in logic engine allowing up to 10 custom functions and scene control

• LED Indicators/Button: Programming/testing LED/button; status LEDs for device operation

• Compliance: CE certified; DIN-rail ready for electrical panels
