The Phoenix Contact ELR W3-24DC/500AC-9I is a hybrid motor starter designed for efficient and reliable control of three-phase AC motors. Key features include:

• Functionality: Combines motor protection, reversing, and emergency stop functions in a single 22.5 mm wide device, reducing wiring and saving space.

• Control Voltage: Operates with a 24 V DC control voltage, ensuring compatibility with standard control systems.

• Operating Voltage: Suitable for operating voltages up to 500 V AC, accommodating a wide range of industrial applications.

• Current Rating: Supports a rated operating current of up to 9 A, suitable for controlling motors with significant power requirements.

• Overload Protection: Features adjustable overload shutdown, enhancing motor protection and operational safety.

• Safety Compliance: Includes an emergency stop function compliant with SIL 3/PL e safety standards, ensuring high-level safety integration.

• Connection Type: Equipped with screw connections for secure and straightforward wiring.

• Mounting: Designed for DIN rail mounting, facilitating easy installation and integration into control panels.

This hybrid motor starter is ideal for applications requiring reliable motor control with integrated safety features, such as conveyor systems, pumps, and various automated machinery.

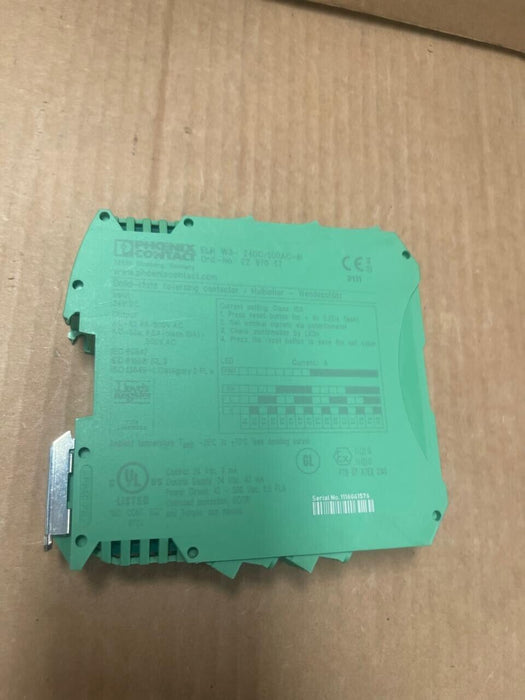

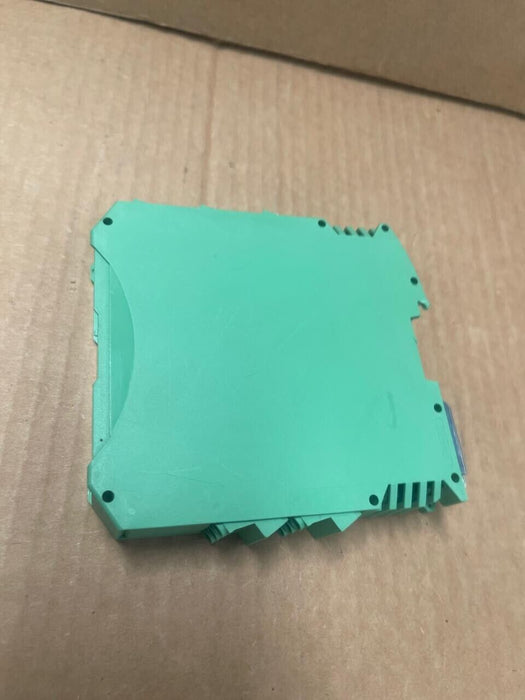

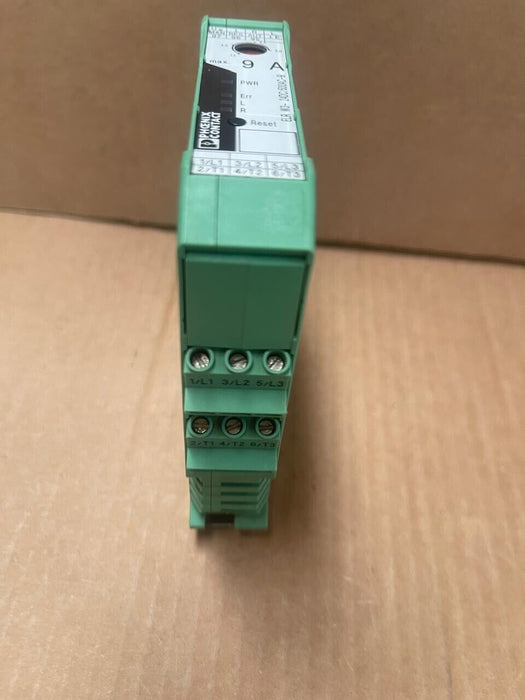

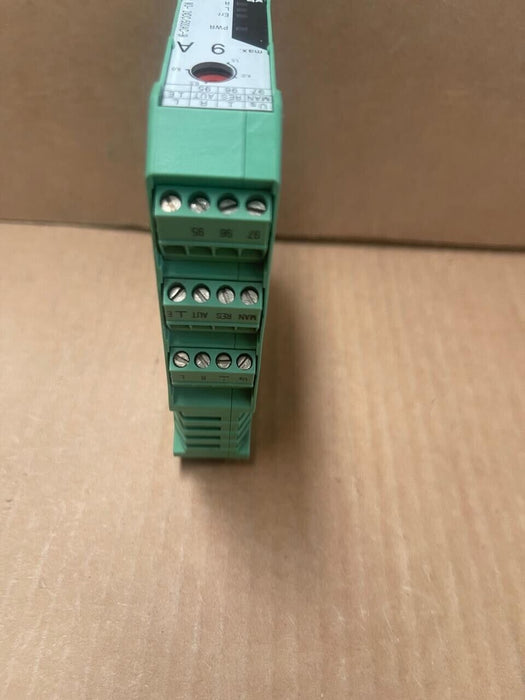

Phoenix Contact - 2297057 - Hybrid Motor Starter ELR W3-24DC/500AC-9I
