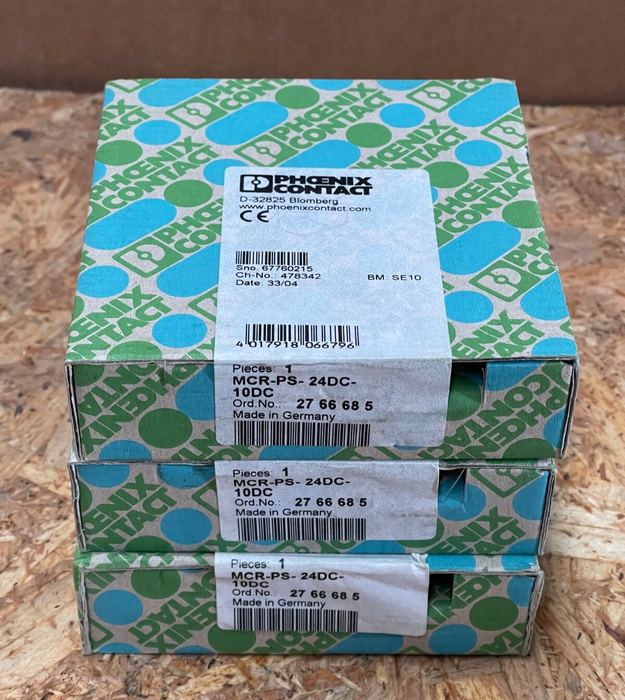

Phoenix Contact - 2766685 - MCR-PS-24DC/10DC Signal Conditioner

The Phoenix Contact MCR-PS-24DC/10DC (Part No. 2766685) is a compact signal conditioner designed to provide a stable 10 V DC reference voltage from a 24 V DC supply. This device is ideal for applications requiring precise voltage references, such as setpoint definitions in conjunction with potentiometers.

Key Features:

• Model: MCR-PS-24DC/10DC

• Part Number: 2766685

• Brand: Phoenix Contact

• Function: Constant voltage source for signal conditioning

• Input Voltage Range: 18–30 V DC

• Output Voltage: +10 V DC ±0.1%

• Residual Ripple: ≤ 50 mVPP

• Short-Circuit Current: Approximately 65 mA

• Mounting: DIN rail

• Connection Method: Pluggable screw connection

• Conductor Cross Section: 0.2–2.5 mm² (24–14 AWG)

• Dimensions (W x H x D): 12.5 mm x 99 mm x 114.5 mm

• Operating Temperature Range: -20°C to +65°C

• Housing Material: Polyamide PA, green

• Protection Rating: IP20

• Applications: Suitable for providing a stable voltage reference in control systems, especially when used with potentiometers for setpoint definitions
