The Phoenix Contact MACX MCR-SL-CAC-5-I is a current transducer designed to convert sinusoidal alternating currents of 1 A or 5 A into standard analog signals. Key features include:

• Input Current Range: Configurable for 0 A AC to 1 A AC or 0 A AC to 5 A AC via DIP switches.

• Output Signal: Selectable 0 mA to 20 mA or 4 mA to 20 mA analog output, adaptable to various control systems.

• Supply Voltage: Operates on 24 V DC (-20% to +25%), with a supply voltage range of 19.2 V DC to 30 V DC.

• Mounting: Designed for DIN rail mounting, facilitating easy integration into control panels.

• Connection Method: Screw terminals for secure and straightforward wiring.

• Protection Rating: IP20, suitable for installation within protective enclosures.

• Operating Temperature Range: -20°C to +65°C (-4°F to +149°F), ensuring reliable performance in various environmental conditions.

• Dimensions: Width: 22.5 mm; Height: 104 mm; Depth: 114.5 mm.

This current transducer is ideal for applications requiring precise current measurement and conversion to standard analog signals, such as monitoring and control in industrial automation systems.

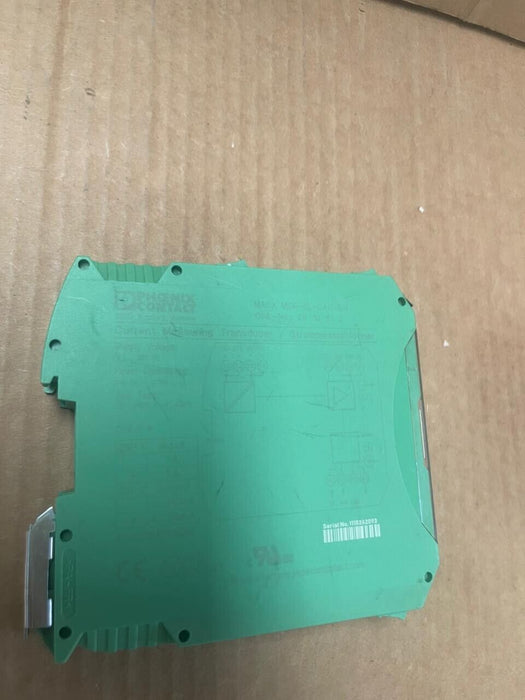

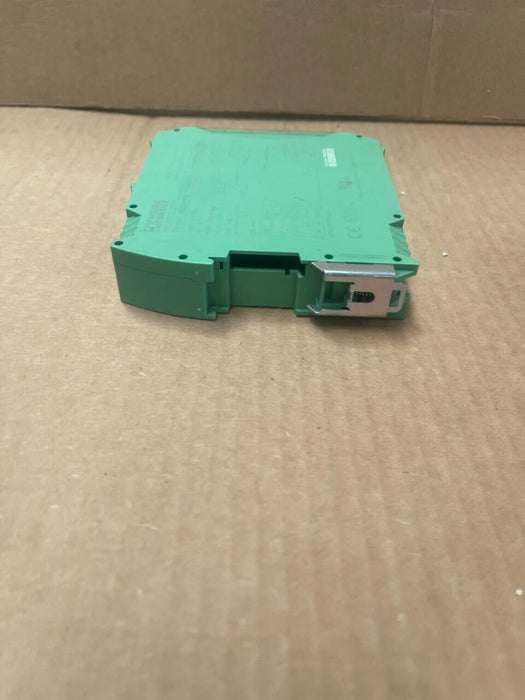

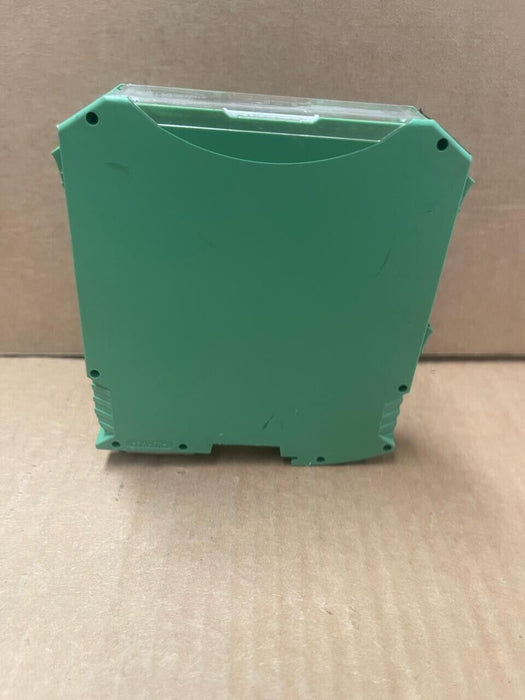

Phoenix Contact - 2810612 - Current Transducer MACX MCR-SL-CAC-5-I
