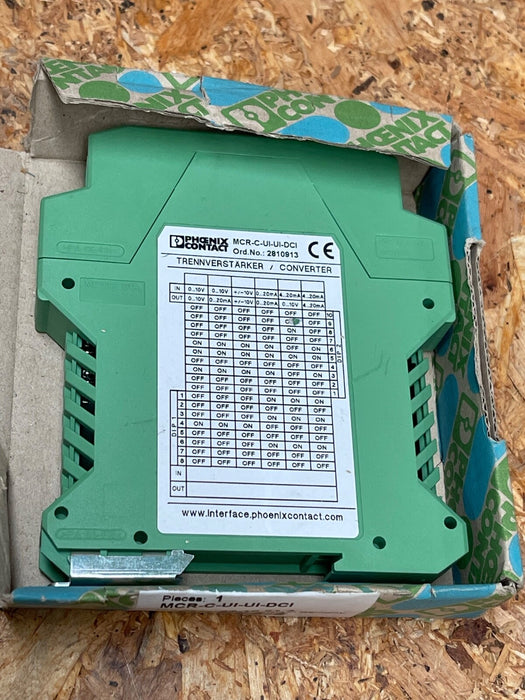

The Phoenix Contact MCR-C-UI-UI-DCI (Part No. 2810913) is a versatile 3-way signal conditioner designed for the electrical isolation and conversion of analog signals. Featuring configurable input and output ranges, it ensures safe decoupling of sensor circuits from evaluation circuits, preventing mutual interference between multiple sensor circuits. Its compact design and DIN rail mounting make it suitable for various industrial automation and process control applications.

Key Features:

Model: MCR-C-UI-UI-DCI
Brand: Phoenix Contact
Part Number: 2810913
Function: Signal conversion and electrical isolation for analog signals
Input Signal: 0–10 V (configurable)
Output Signal: 0–10 V (configurable)
Number of Channels: 1
Electrical Isolation: 3-way isolation between input, output, and power supply
Power Supply: 18–30 V DC
Current Consumption: <30 mA (without load)
Input Resistance: 1 MΩ (voltage input), 50 Ω (current input)
Output Load: ≥10 kΩ (voltage output), ≤500 Ω (current output)
Transmission Error: ≤0.1% of final value
Step Response (10–90%): 11 ms
Limit Frequency (3 dB): 30 Hz
Temperature Coefficient: 0.0075%/K
Operating Temperature Range: -20 °C to +65 °C
Mounting: DIN rail
Dimensions (W × H × D): 17.5 mm × 99 mm × 114.5 mm
Protection Class: IP20
Certifications: CE, UL Recognized, cULus, EAC
Applications: Ideal for signal conversion and electrical isolation in industrial automation and process control systems.
