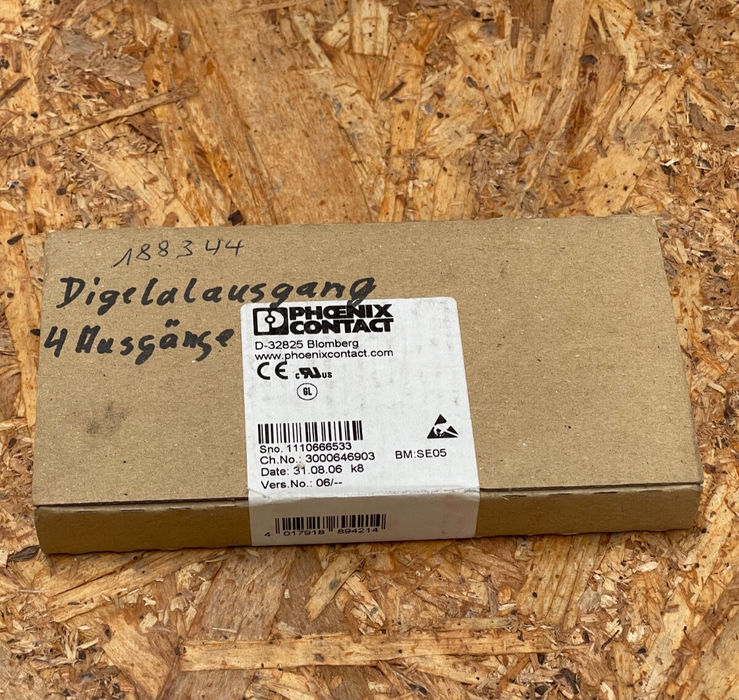

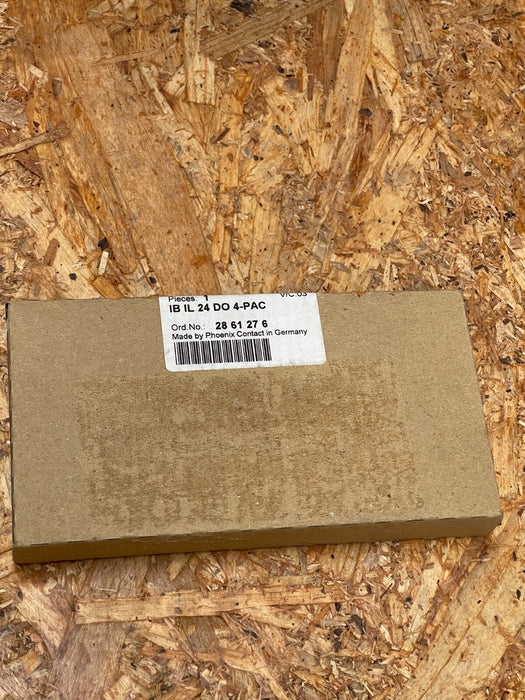

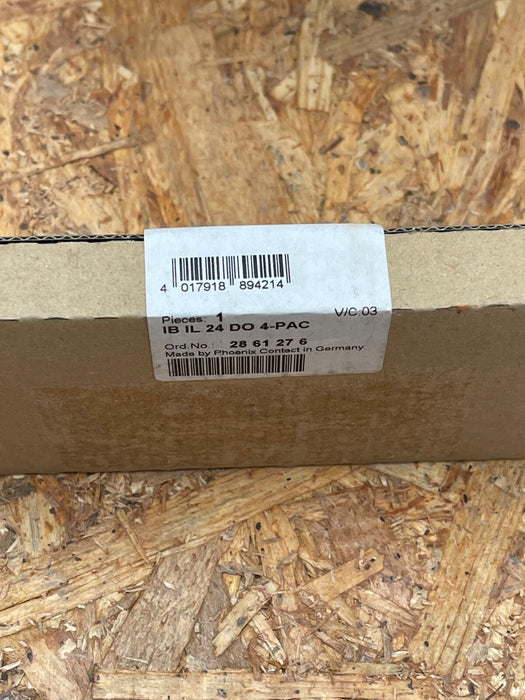

Phoenix Contact - 2861276 - IB IL 24 DO 4-PAC - Inline Digital Output Module

The Phoenix Contact IB IL 24 DO 4-PAC (Part No. 2861276) is a modular Inline digital output terminal designed for industrial automation systems. It provides four 24 V DC outputs with a maximum current of 500 mA per channel, suitable for controlling actuators in 2- and 3-wire connection technologies. The module features electronic short-circuit and overload protection, ensuring reliable operation. Its compact design allows for efficient DIN rail mounting, making it ideal for applications requiring space-saving solutions.

Key Features:

• Model: IB IL 24 DO 4-PAC

• Brand: Phoenix Contact

• Part Number: 2861276

• Number of Outputs: 4 digital outputs

• Output Voltage: 24 V DC

• Maximum Output Current: 500 mA per channel; 2 A total per module

• Connection Technology: 3-conductor with spring-cage connections

• Protective Features: Electronic short-circuit and overload protection

• Mounting: DIN rail

• Dimensions (W × H × D): 12.2 mm × 140.5 mm × 71.5 mm

• Operating Temperature Range: -25 °C to +55 °C

• Degree of Protection: IP20

• Communication Interface: Inline local bus with 500 kbps transmission speed

• Diagnostics: LED indicators for status and error messages

• Applications: Suitable for controlling actuators in industrial automation systems, including machinery and process control environments.
