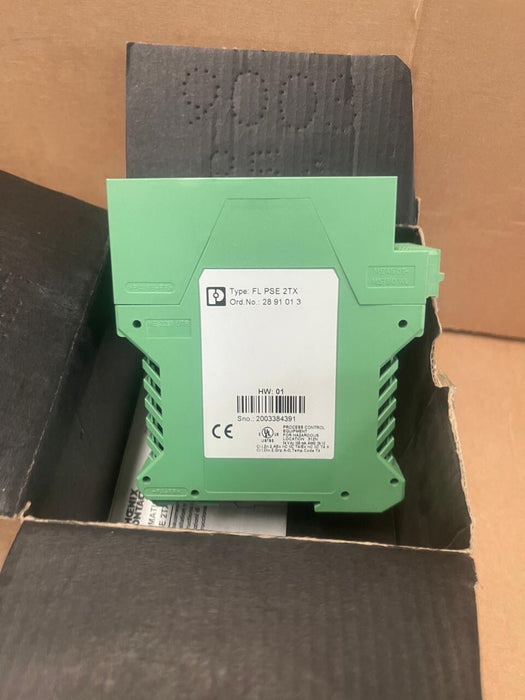

Phoenix Contact – FL PSE 2TX 2891013 - Power-over-Ethernet (PoE) Injector Module

🔧 Product Overview

The Phoenix Contact FL PSE 2TX (Part No. 2891013) is an industrial-grade Power-over-Ethernet (PoE) injector module designed for midspan power supply in compliance with IEEE 802.3af standards. This compact, stand-alone device converts two standard Ethernet ports into PoE-enabled ports, facilitating the simultaneous transmission of data and power over a single Ethernet cable. It’s ideal for powering devices such as WLAN access points, IP cameras, and VoIP phones in industrial environments.

📐 Key Specifications

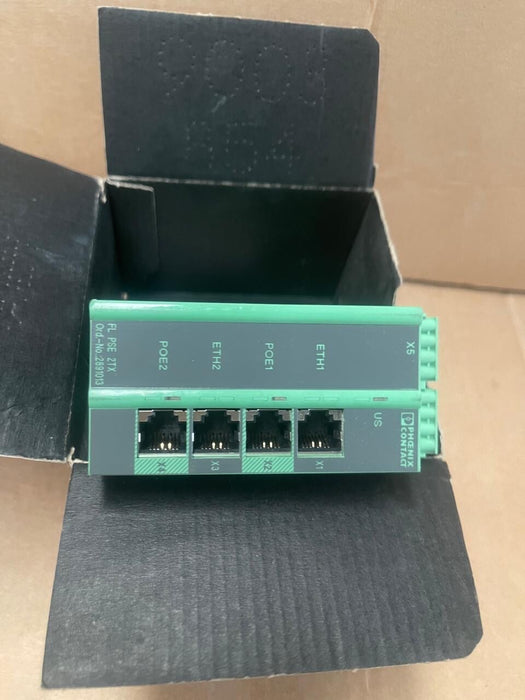

• Number of Ports: 2 x RJ45 (Ethernet)

• Data Rates Supported: 10/100 Mbps

• PoE Standard: IEEE 802.3af compliant

• Input Voltage: 24 V DC (range: 18.5–30.5 V DC)

• Power Consumption:

  • No Load: Approximately 100 mA

  • Maximum Load: Approximately 1.8 A at 24 V DC

• Mounting Type: DIN rail

• Housing Material: Polyamide (PA 6.6)

• Dimensions (W × H × D): 45 mm × 99 mm × 112 mm

• Protection Class: IP20

• Operating Temperature Range: 0°C to +55°C

• Storage Temperature Range: –20°C to +70°C

• Certifications: UL Listed, cULus Recognized

💡 Features & Benefits

• Plug & Play Installation: No configuration required, enabling quick and easy setup.

• Compact Design: Space-saving housing suitable for control cabinets.

• Industrial Compatibility: Designed for harsh industrial environments with robust EMC immunity.

• LED Indicators: Provides status and diagnostic information for power supply and PoE detection.

• Flexible Integration: Can be combined with Fast Ethernet switches for network expansion.
