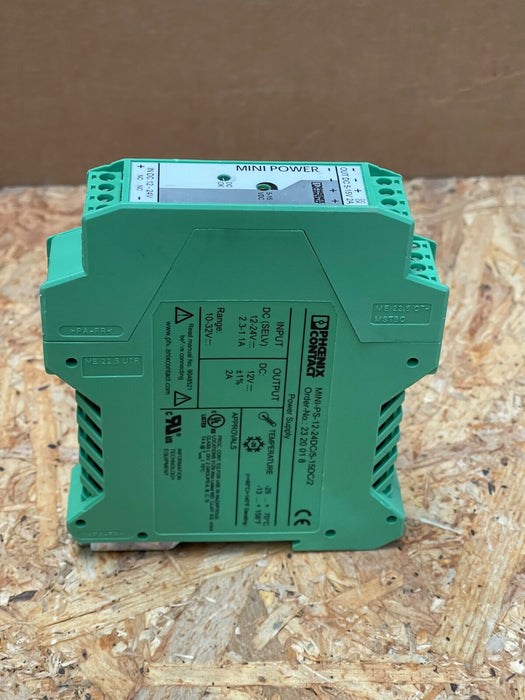

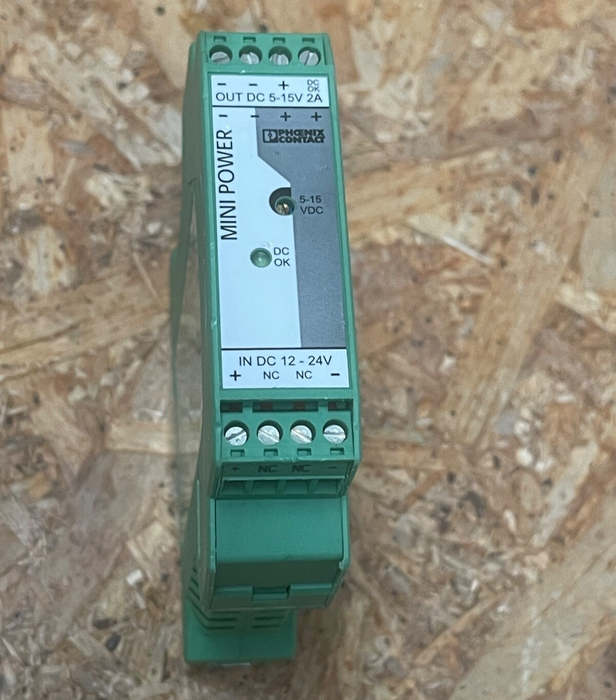

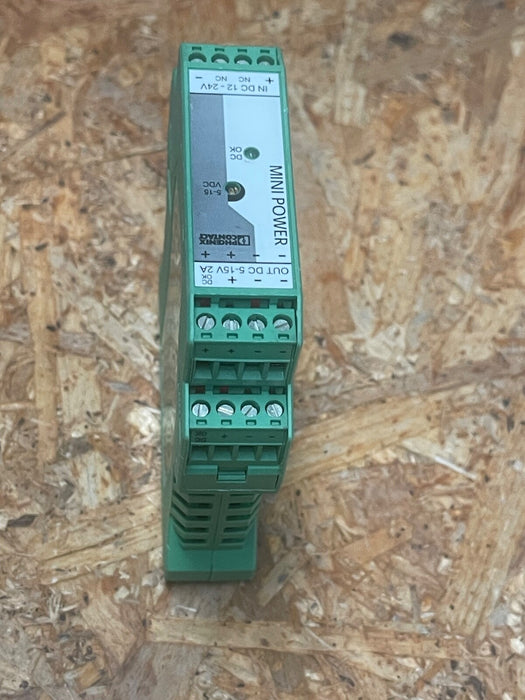

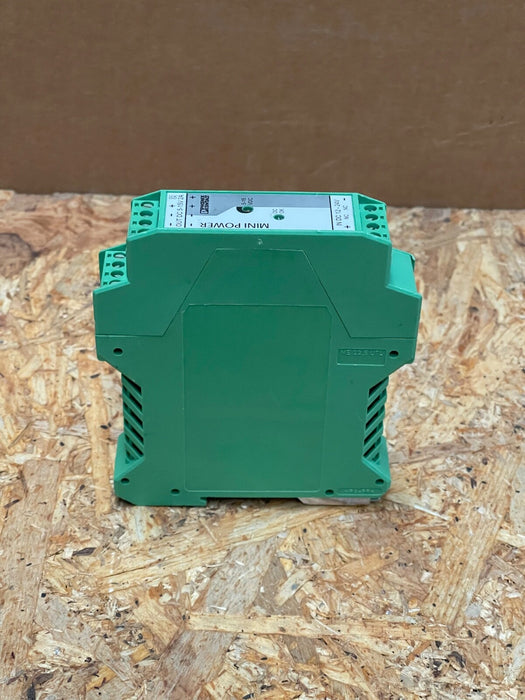

The Phoenix Contact MINI-PS (2320018) is a compact, isolated DIN-rail DC/DC converter. It converts 12–24 V DC inputs to adjustable 5–15 V DC outputs at 2 A, delivering 24 W of isolated power. Ideal for regenerating voltage over long cable runs, powering auxiliary circuits, or creating redundant supplies. Includes green “DC OK” LED and status contact for efficient monitoring.

Key Specs

Model: 2320018 – MINI PS series
Input Voltage: 10–32 V DC (nominal 12–24 V)
Output Voltage: 5–15 V DC (adjustable), nominal 12 V ±1 %
Current Capacity: 2 A continuous (24 W)
Efficiency: > 88 % at 24 V input
Isolation: 1.5 kV input/output; SELV rated per EN 60950-1
Status Output: DC OK contact (≤ 20 mA) + LED indicator
Protections: Internal inrush fuse, overvoltage output clamp, ripple <20 mVpp
Mounting: DIN‑rail NS 35; width 22.5 mm; IP20
Environmental: –25 °C…+70 °C (derated above 60 °C), 95 % RH non-condensing
Dimensions: 99 × 22.5 × 107 mm; weight ~0.2 kg
