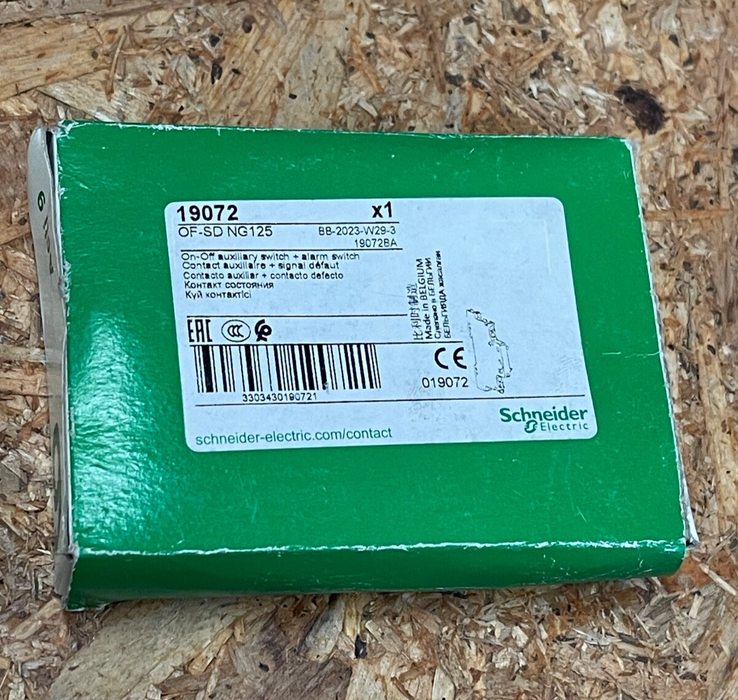

Schneider Electric - 19072 - Auxiliary Contact 1 OC + 1 SD 6A 220–240V for NG125

The Schneider Electric 19072 is an auxiliary contact block designed for use with the Acti9 NG125 series circuit breakers. This module provides 1 normally open contact (OC) and 1 fault signal contact (SD), supporting control and signaling functions in electrical panels. Rated for 6A at 220–240V AC and 3A at 415V AC, the 19072 ensures reliable operation and electrical durability up to 10,000 cycles in compliance with EN/IEC 60947-5-1 standards. Its compact design with plate terminals allows for easy wiring and integration.

Key Features:

• 1 OC (normally open) + 1 SD (fault signal) contact configuration

• Current rating: 6A (220–240V AC), 3A (415V AC)

• Electrical durability: 10,000 cycles (EN/IEC 60947-5-1)

• Plate terminals for secure cable connection (0.5–2.5 mm² rigid, 0.5–1.5 mm² flexible)

• Compact dimensions: 15.3 mm width, 75.5 mm depth

• Easy integration with NG125 circuit breakers
