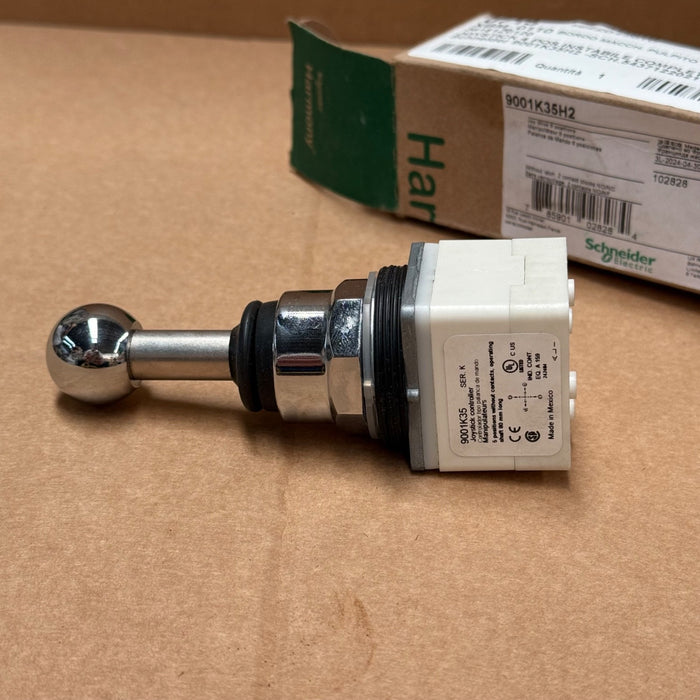

Schneider Electric – 9001K35 – 30 mm 5‑Position Joystick Controller

The 9001K35 is a heavy‑duty 30 mm joystick operator (Type K) from Schneider Electric’s Harmony/ Square D range. It offers 5 directional momentary positions with spring‑return to center, rugged metal bezel and IP66/NEMA 4 rating—ideal for harsh industrial, defense, or hazardous environments. This unit ships without contact blocks for flexible customization.

 Key Specifications

• Part No: 9001K35 – 30 mm joystick, Type K, 5 positions, spring-return

• Operator Style: Metal bezel, chrome-plated, octagonal head

• Positions: 5 direction control (center plus 4 directions), momentary spring-return

• Mounting: Panel cut-out Ø30 mm, robust secured fit

• Environmental Rating: IP66, NEMA 1/4/12/13 suited for harsh settings

• Contacts: Supplied without contact block—customizable block attachments

• Compliance & Durability: Self-grounding, UL/CSA listed, high vibration and impact resistance ()
