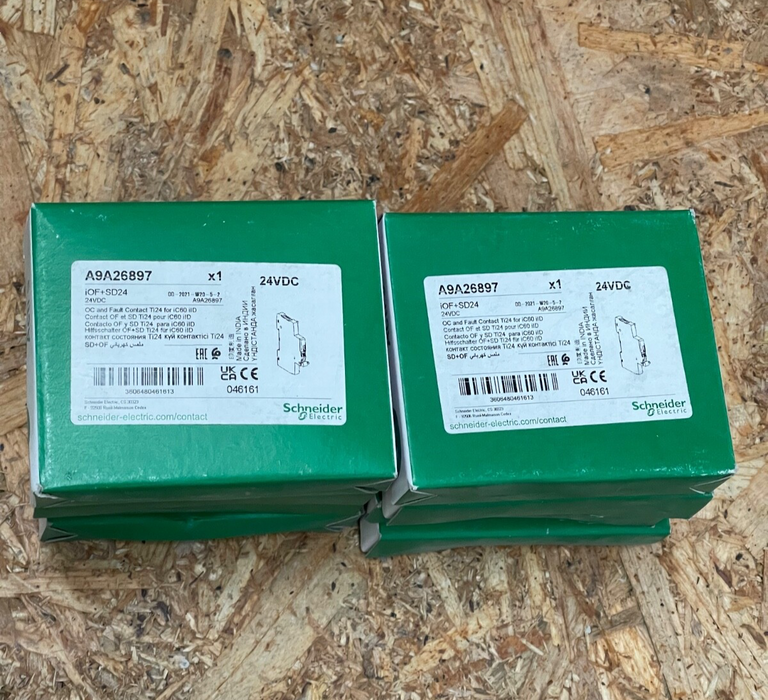

The Schneider Electric A9A26897 is an auxiliary contact block from the Acti9 series, featuring 1 normally open (NO) and 1 normally closed (NC) contact configuration. Designed for use with modular devices, this unit operates at 24VDC and is compatible with the Ti24 connector (sold separately). The A9A26897 is ideal for signaling and status reporting, capable of transmitting information to Acti9 Smartlink systems, including Modbus Slave, Ethernet, and SI B modules. It also supports integration with devices such as iC60, iID, iC40, and iSW-NA.

Key Features:

• 1 NO + 1 NC contact configuration for versatile signaling

• Operating voltage: 24VDC

• Current range: 2mA to 100mA

• Compact size: 9 mm width, 73.5 mm depth

• Electrical durability: 20,000 cycles (IEC 60947-5-4)

• Spring terminals for quick and secure wiring

• Compatible with Acti9 Smartlink and multiple device ranges

• Ti24 connector on top for communication (connector sold separately)

• Operating temperature: -25°C to +70°C

• Storage temperature: -40°C to +85°C

Schneider Electric - A9A26897 - Acti9 Auxiliary Contact iOF+SD 1NO+1NC 24VDC Ti2
