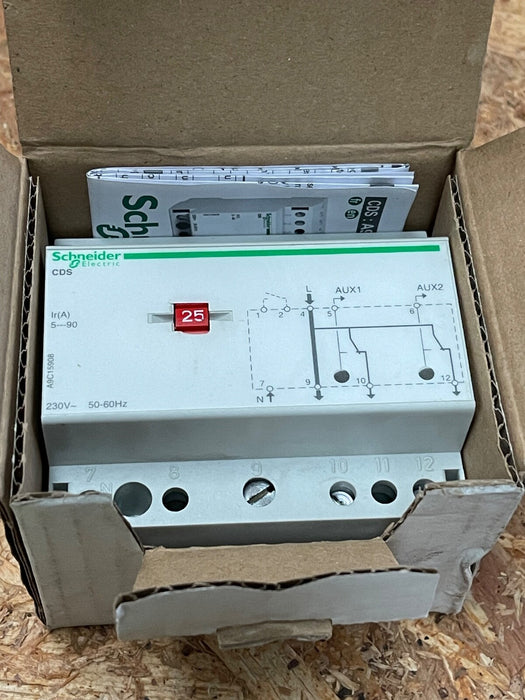

The Schneider Electric A9C15908 is a CDS series single-phase load-shedding contactor designed to optimize energy distribution in residential and commercial electrical installations. By prioritizing essential circuits and temporarily disconnecting non-essential loads during peak demand, it prevents nuisance tripping of upstream circuit breakers and enhances overall system efficiency.

Key Features:

Model: A9C15908
Brand: Schneider Electric
Series: Acti9 CDS
Function: Single-phase load-shedding contactor with 2 channels
Rated Operational Voltage: 230 V AC
Rated Current (Iu): 5–90 A
Control Contact Current: 1 A
Maximum Switching Voltage (Control Contacts): 250 V
Power Consumption: 12 VA
Maximum Active Power: 20 kW
Operating Frequency: 50/60 Hz
Mounting: DIN rail
Width: 5 modules (approx. 84 mm)
Depth: 67 mm
Protection Rating: IP20
Terminal Capacity: Up to 10 mm² rigid copper cables
Applications: Ideal for managing energy distribution in residential and commercial settings by prioritizing essential circuits and preventing overloads

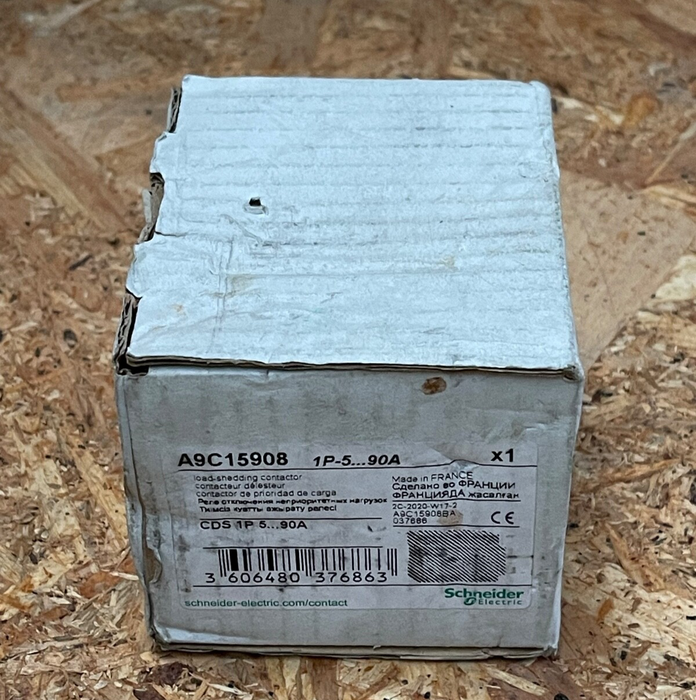

Schneider Electric - A9C15908 - CDS Single-Phase Load-Shedding Contactor, 2CH
