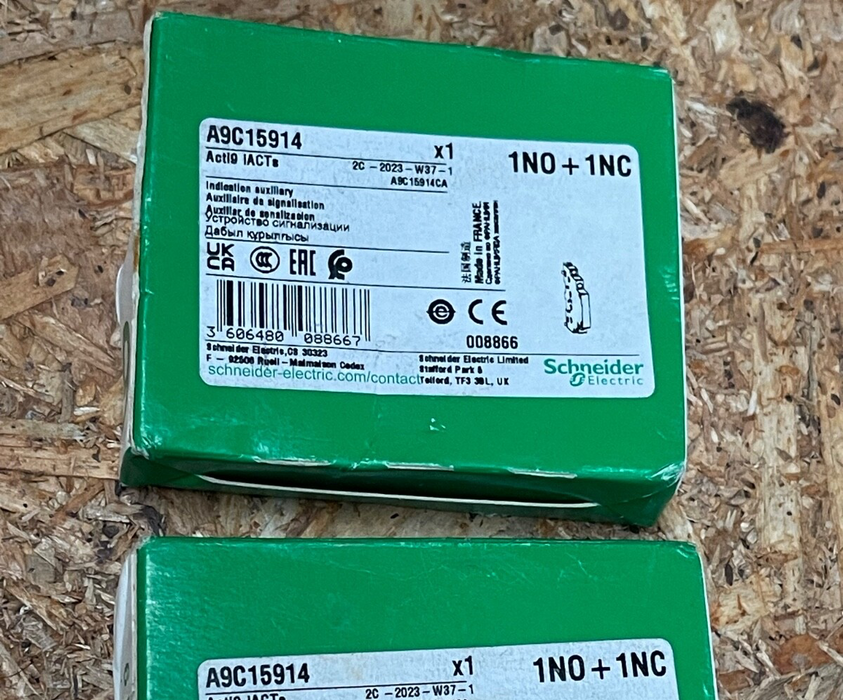

Schneider Electric - A9C15914 - Acti9 iACTs Auxiliary Contact 1NO+1NC 24–240VAC

The Schneider Electric A9C15914 is an auxiliary contact module from the Acti9 iACTs series, designed for remote status indication with Acti9 iCT contactors. This device features 1 normally open (NO) and 1 normally closed (NC) contact, providing flexible signaling options for control and monitoring applications. The A9C15914 operates across a wide voltage range of 24–240VAC and 24–130VDC, ensuring compatibility with various control systems. It is DIN rail mountable for easy installation and offers an IP20 protection rating (IP40 when installed in an enclosure). The module complies with EN 60947-5 standards for industrial auxiliary devices.

Key Features:

• 1 NO + 1 NC contact configuration for versatile signaling

• Wide operating voltage: 24–240VAC, 24–130VDC

• DIN rail mounting for quick and secure installation

• IP20 protection rating (IP40 in enclosure)

• Compatible with all Acti9 iCT contactors

• Compliant with EN 60947-5 standards
