The Schneider Electric A9MEM1520 (PowerTag Monoconnect) is a compact, wireless energy sensor designed for real-time monitoring of single-phase electrical loads up to 63 A. It snaps neatly onto Acti 9 and Multi 9 breakers, enabling seamless integration into EcoStruxure and Wiser smart energy management systems. Ideal for load tracking, circuit monitoring, and power availability analysis in residential, commercial, and light industrial environments.

Key Features:

Model: A9MEM1520
Brand: Schneider Electric (PowerTag / Acti 9 Monoconnect series)
Max Current: 63 A continuous; basic current 10 A; saturation current 130 A
Pole & Wiring: Single-pole plus neutral; compatible with top or bottom mounting on breakers
Measurements: Voltage, current, active power, energy, power factor; IEC 61557‑12 accuracy class 1
Communication: 2.4 GHz IEEE 802.15.4 wireless; pairs with EcoStruxure concentrators or Wiser IP modules
Mounting & Power Supply: Clamps onto breakers; powered by circuit voltage (200‑240 V AC, ±20%); consumes ≤ 1 VA
Dimensions & Weight: 18 × 16.5 × 43 mm; ~16.4 g; compact DIN module (1 M wide)
Environment: Operates −25 °C to +60 °C; IP20; pollution degree 3; vibration/shock rated

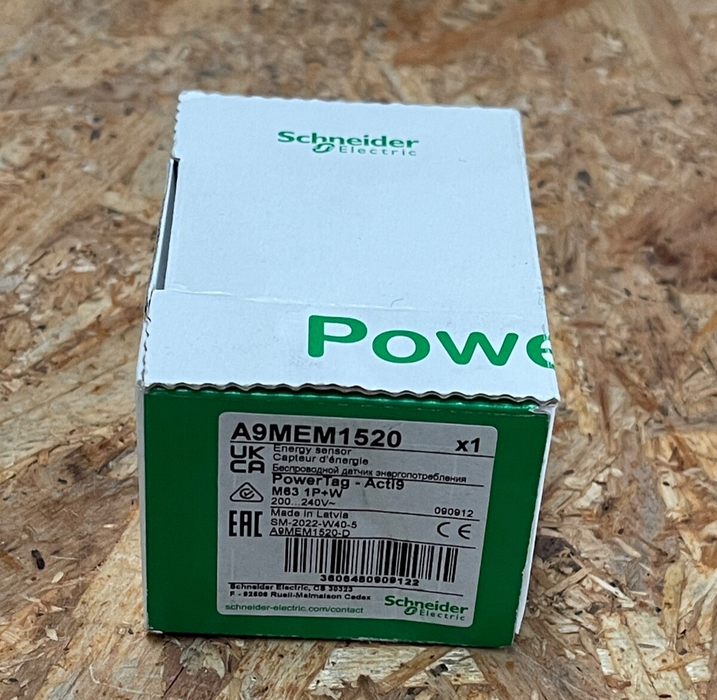

Schneider Electric – A9MEM1520 – PowerTag Monoconnect 63 A 1P+W Wireless Energy
