The Schneider Electric A9MEM2110 (Acti9 iEM2110) is a compact, single-phase DIN‑rail mounted energy meter ideal for load monitoring, sub‑billing, and automation integration. Rated up to 63 A direct, with active/reactive energy measurement, dual pulse outputs, and MID certification, it offers grid accuracy and versatile installations in industrial, residential, and commercial panels.

Key Features:

• Model: A9MEM2110 (Acti9 iEM2110)

• Brand: Schneider Electric (Acti9 iEM2100 series)

• Electrical Ratings: Single-phase + neutral, 230 V ±20%, up to 63 A

• Measurements: Active/reactive/apparent energy (signed, 4-quadrant), power, current, voltage; class 1 accuracy per IEC/EN standards

• Pulse Outputs: Two outputs, configurable pulse rate with 3–33 V AC or 5–70 V DC, compliant with utility metering

• Display: 8-digit LCD; red LED indicates pulse functionality

• Supply & Power Consumption: 96–276 V AC supply; ≤2 VA/1 W consumption

• Compliance: IEC 62052‑11, 62053‑21/23, 62053‑31, 50470‑1/3 (MID), EN 50470‑1/3, CE, IP20, overvoltage category III, pollution degree 2, UL94 V‑0 plastic

• Mounting: Clip-on TH‑35 DIN rail; width 36 mm

• Environment: –25 °C to +55 °C operating, –25 °C to +70 °C storage, 95 % RH non‑condensing

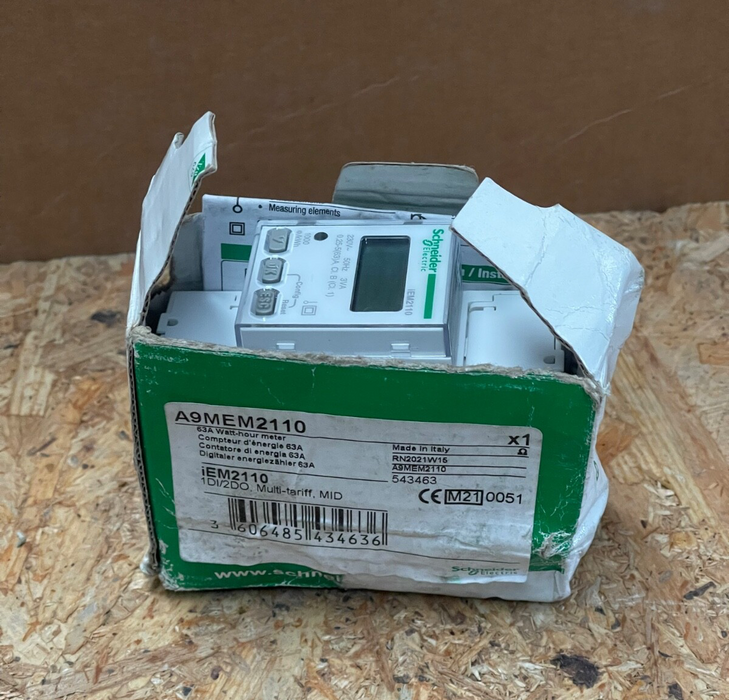

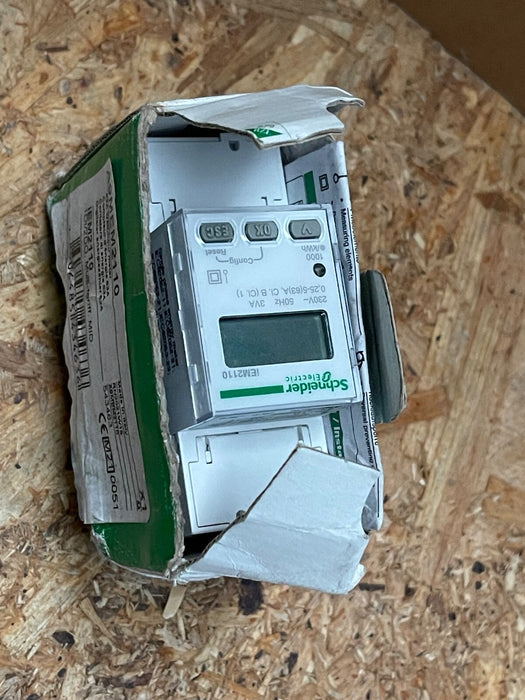

Schneider Electric – A9MEM2110 – Acti9 iEM2110 Single-Phase Energy Meter, 230 V
