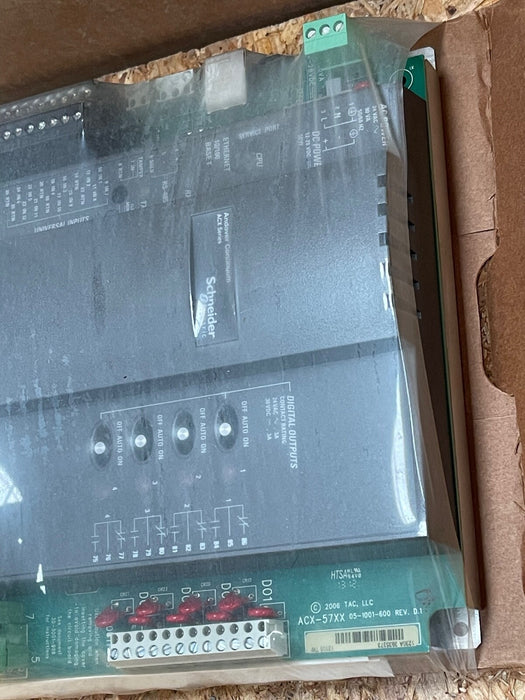

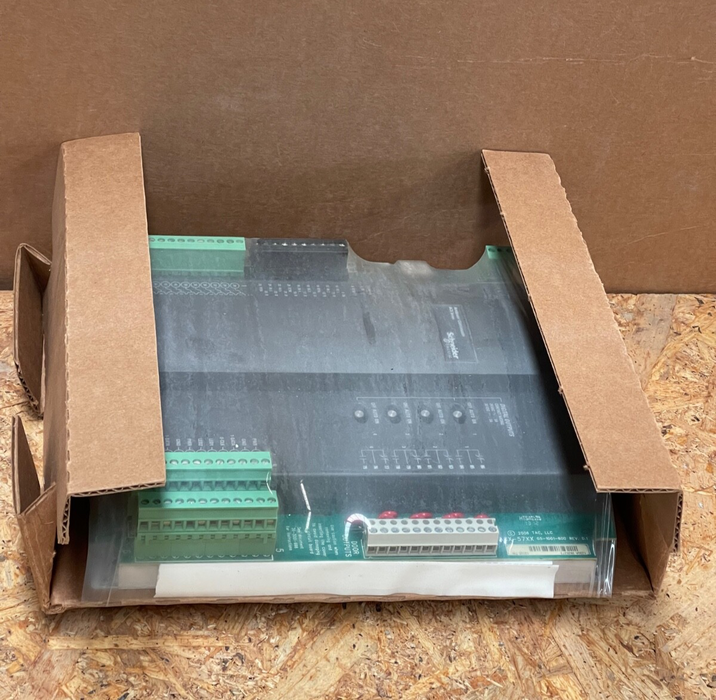

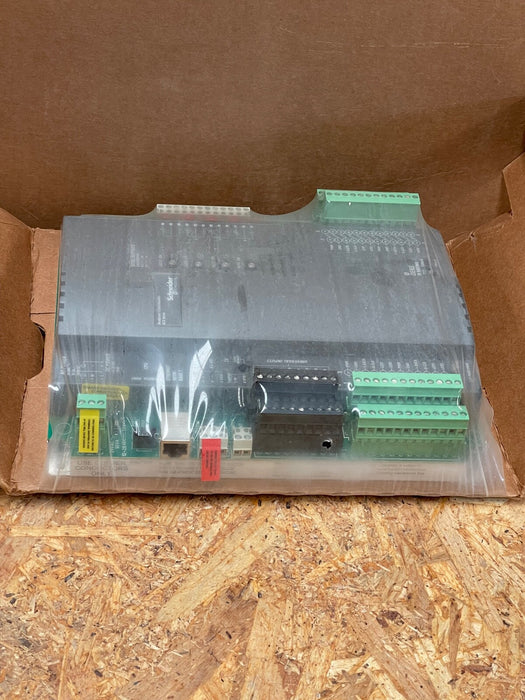

The Schneider Electric ACX-5720 is a member of the ACX 57xx series of access controllers, designed for secure and scalable access control in commercial and industrial environments. This controller supports up to two doors with entry/exit readers and offers flexible input/output configurations. It features onboard Ethernet and RS-485 communication interfaces, making it suitable for integration into existing networks.

Key Features:

Model: ACX-5720
Brand: Schneider Electric

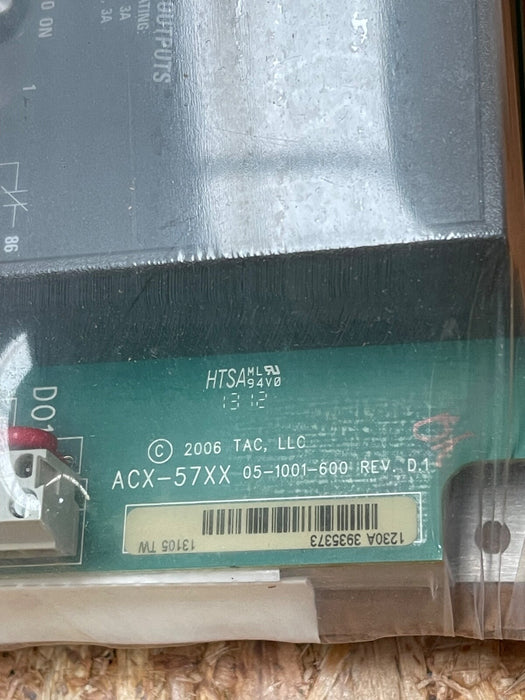

Part Number: 05-1001-600 REV D.1
Doors Supported: 2 (Entry/Exit)

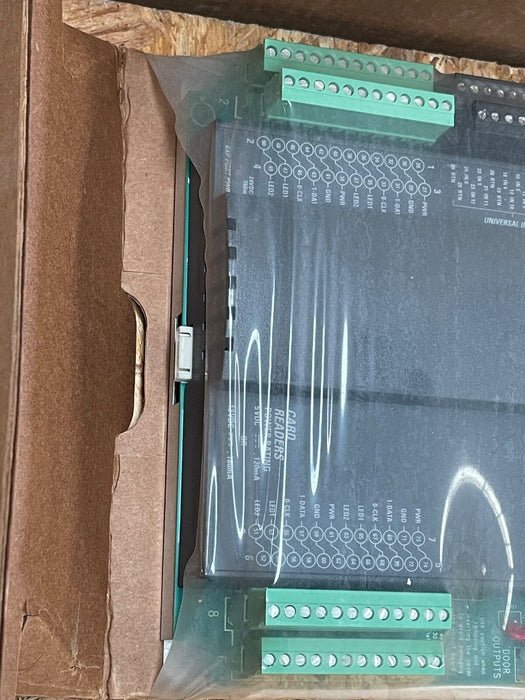

Card Reader/Keypad Inputs: 4
Universal Inputs: 6 (configurable as supervised or general-purpose)
Form C Relay Outputs: 2 (with manual override switches)
Communication Interfaces:
- Ethernet (10/100BASE-T)
- RS-485 for Infinet field bus
- Service port for RoamIO2 connection
Power Supply Options:
- 24 V AC, 90 VA, 50/60 Hz
- 12–28 V DC, 50 W
Memory:
- 12 MB RAM for application and runtime data
- 48 MB RAM for personnel records (up to 480,000 records)
- 32 MB Flash memory for firmware and database backup
Battery Backup: Internal NiMH battery maintains data for a minimum of 7 days
Expansion Capability: Supports up to 2 xP or xPB expansion modules and 1 display module
Mounting: Panel mount
Dimensions (W × H × D): 241.3 mm × 209.6 mm × 57.2 mm
Weight: Approximately 830 g
Operating Temperature Range: -25 °C to +70 °C
Certifications: CE, UL
Applications: Ideal for secure access control in commercial buildings, industrial facilities, and other environments requiring reliable entry management.

Schneider Electric - ACX-57XX 05-1001-600 - Andover Continuum Access Controller
