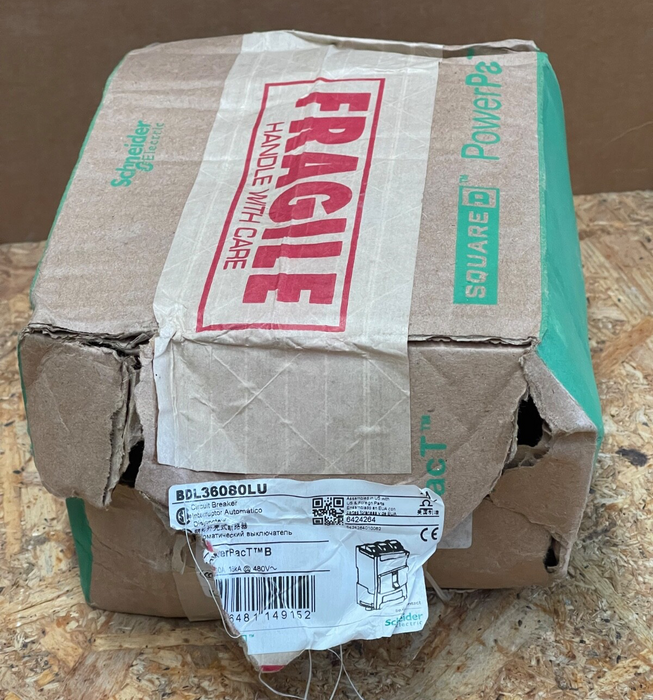

Schneider Electric – BDL36080LU – PowerPact B 3-Pole 80 A MCCB, 600Y/347 V AC

The Schneider Electric BDL36080LU is a molded case circuit breaker (MCCB) from the PowerPact B series. Designed for industrial and commercial electrical distribution systems, it features a 3-pole configuration, 80 A rated current, and thermal-magnetic trip unit. This model ensures reliable circuit protection with high interrupting capacity, making it suitable for panelboards and motor protection.

Key Features:

• Model: BDL36080LU

• Series: PowerPact B

• Poles: 3

• Rated Current: 80 A

• Voltage Rating: 600Y/347 V AC

• Interrupting Capacity:

  • 18 kA @ 480 V AC

  • 14 kA @ 600Y/347 V AC

• Trip Unit: Thermal-magnetic (fixed settings)

• Terminations: Everlink lugs

• Mounting: Unit-mount, bolt-on
