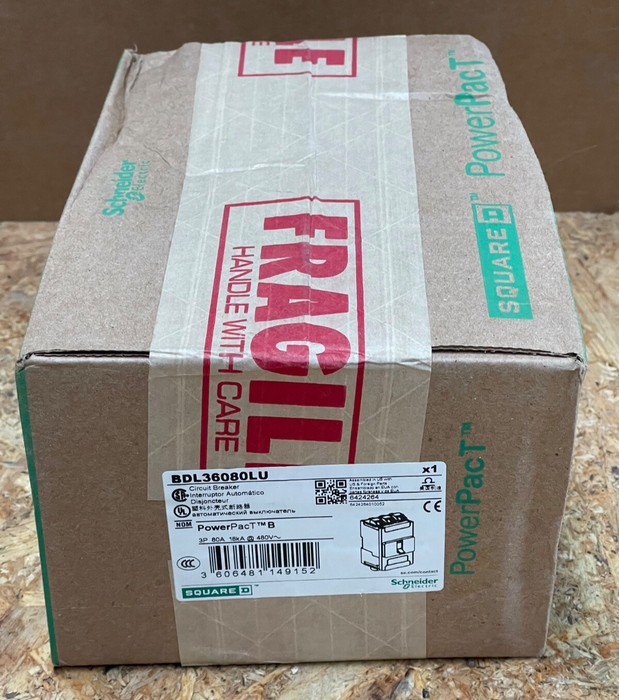

Schneider Electric – BDL36080LU – PowerPact B 80 A 3‑Pole Molded Case Circuit

The BDL36080LU is a rugged 80 A three-pole molded-case circuit breaker from Schneider Electric’s PowerPact B series (also known as Square D). It offers dependable thermal-magnetic protection for distribution and motor circuits, rated for 600Y/347 VAC systems and a fault current withstand capacity of 14 kA at 600Y voltage, 18 kA at 480 VAC  . Featuring Everlink lugs and side-mounted control wiring, it is ideal for indoor load centers and service entrance panels.

Key Features

• Model: BDL36080LU – PowerPact B, 3‑pole, 80 A

• Voltage Rating:

  • 600Y/347 VAC – 14 kA interrupting capacity

  • 480 VAC – 18 kA breaking capacity

• Trip Unit: Durable thermal-magnetic mechanism

• Connections: Everlink lugs, front cable terminations, control wire on end

• Construction: B-frame molded-case, clip-on mountable, approx. 1.18 kg

• Certifications: UL, CSA, CE

• Application Suitability: Indoor use; industrial panels, distribution boards, motor protection
