The BMEXBP1002H from Schneider Electric is a robust, industrial-grade backplane designed for the Modicon X80 M340 & M580 PLC systems. It features 10 module slots with combined Ethernet and X‑Bus connectivity on each slot, plus a dual power supply for redundancy. Engineered for harsh environments, conformal coated, and rated for –25 °C to +70 °C operation, it delivers reliable performance in severe conditions.

Key Specifications

Part Number: BMEXBP1002H (Modicon X80 Rack)
Slots: 10 module slots, each with Ethernet + X‑Bus connectors
Power Supply: Dual 3.3 V & 24 V DC rails (redundant)
Current Draw: ~76 mA @ 3.3 V; ~162 mA @ 24 V
Protection: IP20 enclosure
Ambient Temp: –25 °C to +70 °C operating; –40 °C to +85 °C storage
Compliance: CE, UL, CSA, IEC 61131‑2, IECEx/ATEX Zone 2/22 rated
Conformal Coating: Enhanced resistance to dust, gas, salt, humidity
Mounting: 35 mm DIN-rail or panel mount via M6 screws
Weight: ~1.37 kg
Carbon Footprint: ~214 kg CO₂ eq. per life cycle

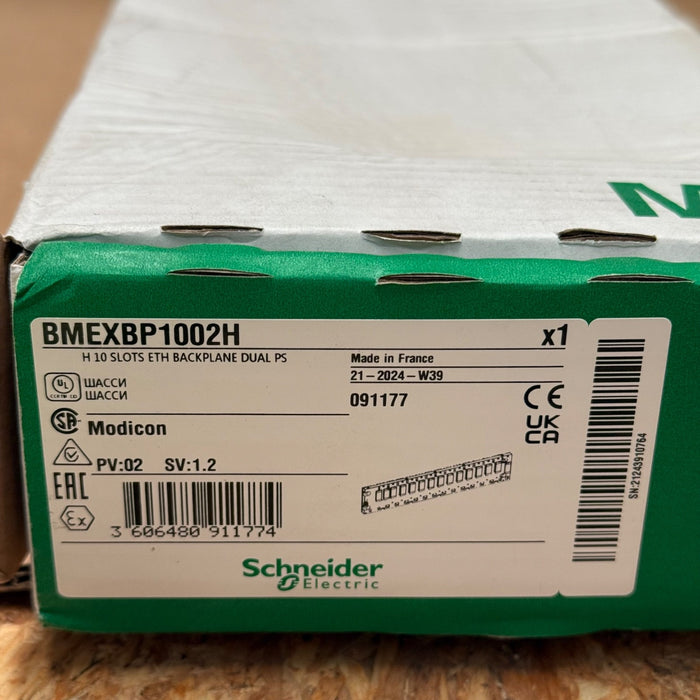

Schneider Electric – BMEXBP1002H – Modicon X80 Ruggedized 10-Slot Ethernet/X-Bus
