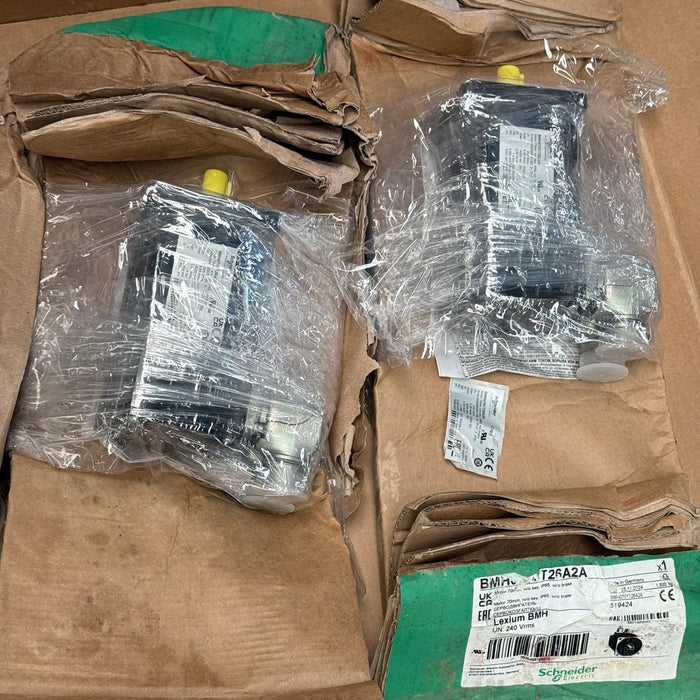

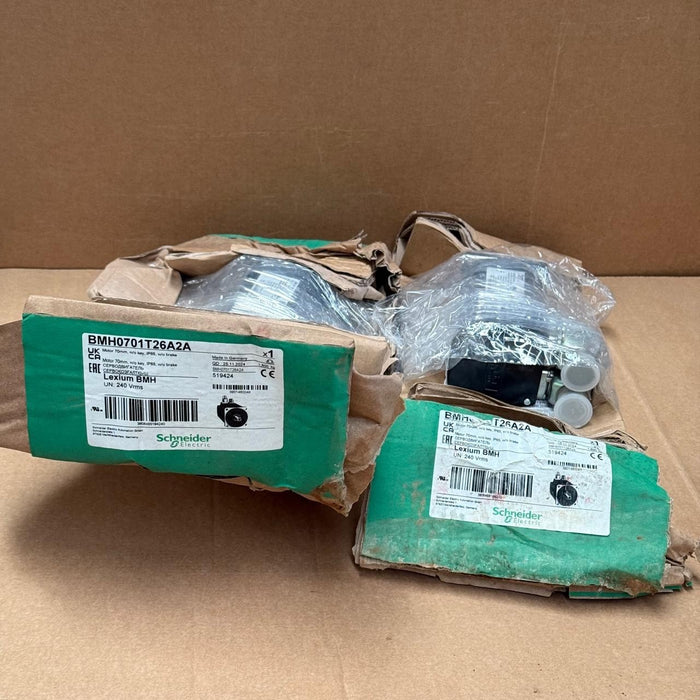

The BMH0701T26A2A is a robust BMH-series servo motor from Schneider Electric (Lexium 32 platform). It delivers 1.4 Nm continuous torque and reaches speeds up to 8,000 RPM. With a 70 mm flange, IP65/67 housing, absolute SinCos Hiperface encoder, and natural convection cooling, it’s engineered for precision control in industrial automation and motion systems.

Key Features:

Manufacturer: Schneider Electric (Lexium 32)
Model / P/N: BMH0701T26A2A
Torque: 1.4 Nm continuous; 4 Nm peak ()
Speed: Up to 8,000 RPM ()
Power: 0.45–0.69 kW depending on supply variant
Supply Voltage: Single-phase 115 V or 230 V AC, 9.6 A
Encoder: Single-turn SinCos Hiperface, 32,768 counts
Rotor: Untapped shaft (Ø11 mm) without holding brake
Protection: IP65 standard; IP67 with optional kit
Housing: 70 mm flange size; natural convection cooling
Connections: 90° rotatable connector as standard ()
Mounting: Standard Lexium 32 flange and bolt pattern
