The BMXDDO6402K is a high-density discrete output module from Schneider Electric’s Modicon X80 series, suitable for M340 and M580 PAC systems. It offers 64 sink-type transistor outputs, each rated at 24 V DC and 0.125 A, with full protection features and status diagnostics via LEDs. Ideal for complex machine and process control requiring compact, reliable output distribution.

Key Specifications

Model / P/N: BMXDDO6402K – discrete output module, Modicon X80
Outputs: 64 transistor (solid-state) sink outputs, positive logic; 19–30 V DC, 0.1 A per channel (0.125 A max)
Module Current: Max 6.4 A total; paralleling permitted up to 3 modules
Protection: Reverse-polarity, overload, overvoltage, short-circuit (via electronic breaker & external fuses), Transil diode protection
Diagnostics: RUN LED, one status LED per channel, ERR and I/O fault LEDs
Response Time: ~1.2 ms; switching freq 0.5/LI² Hz
Power: 160 mA consumption at 3.3 V DC; dissipates ~6.85 W
Standards & Ratings: EN/IEC 61131‑2; IP20; vibration 3 gn; shock 30 gn; operating 0–60 °C
Build: IP20 housing, DIN‑rail client; 150 g net weight

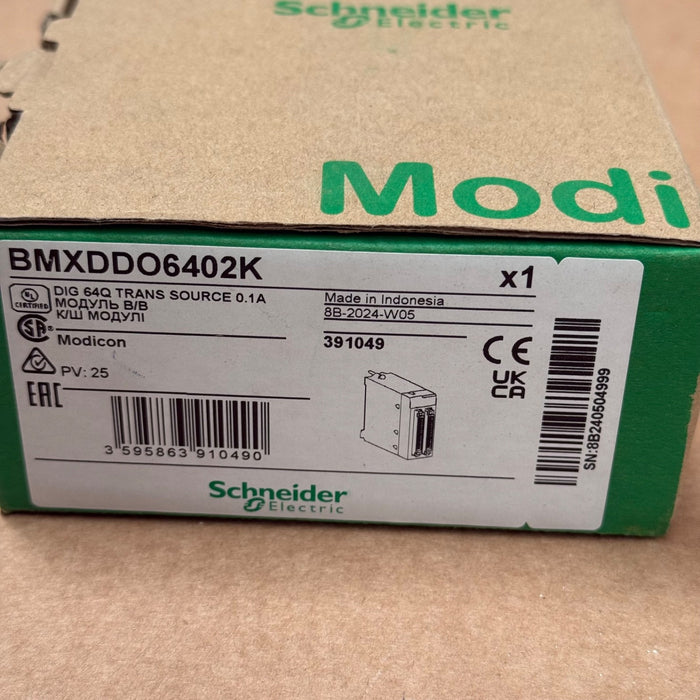

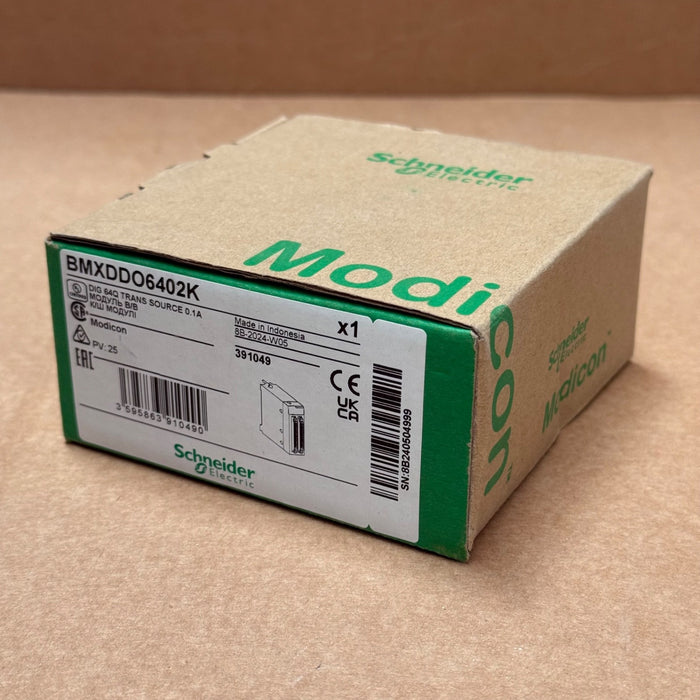

Schneider Electric – BMXDDO6402K – Modicon X80 Discrete Output Module, 64×24VDC
